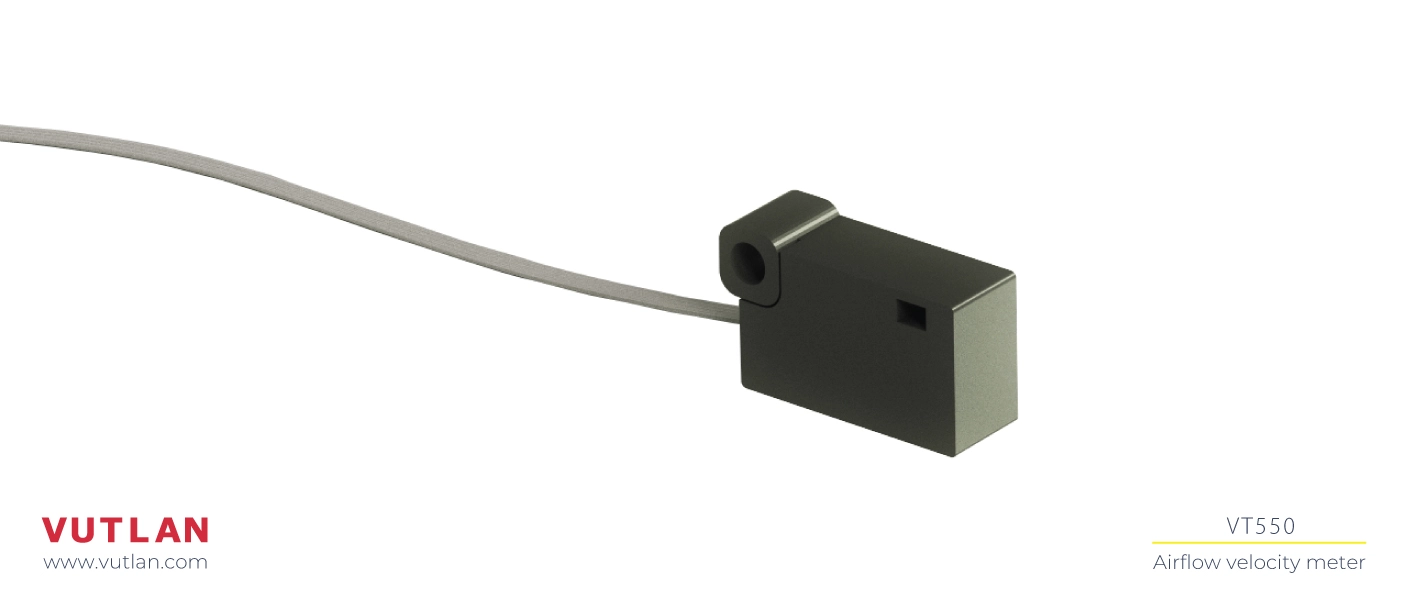

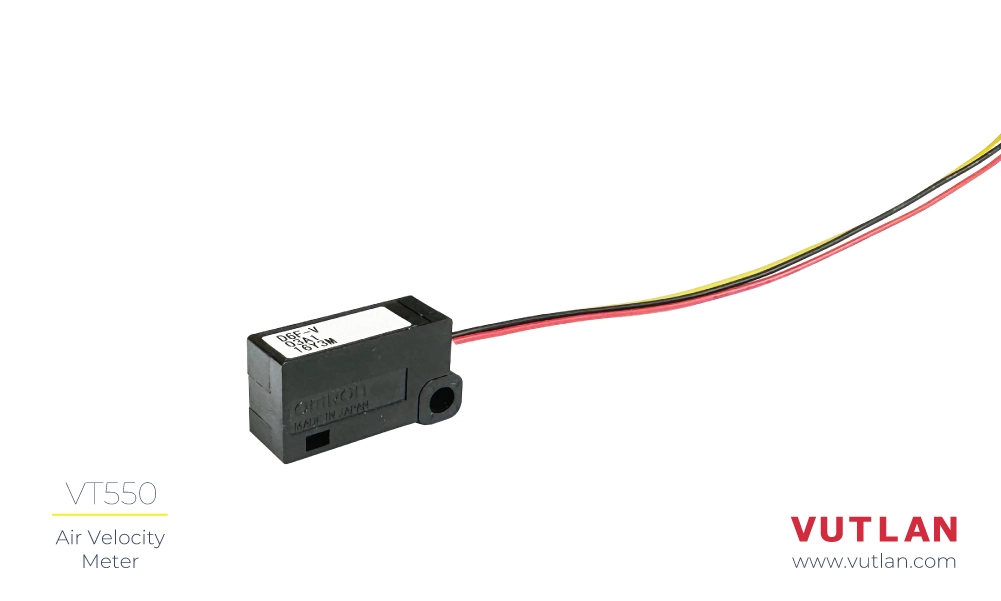

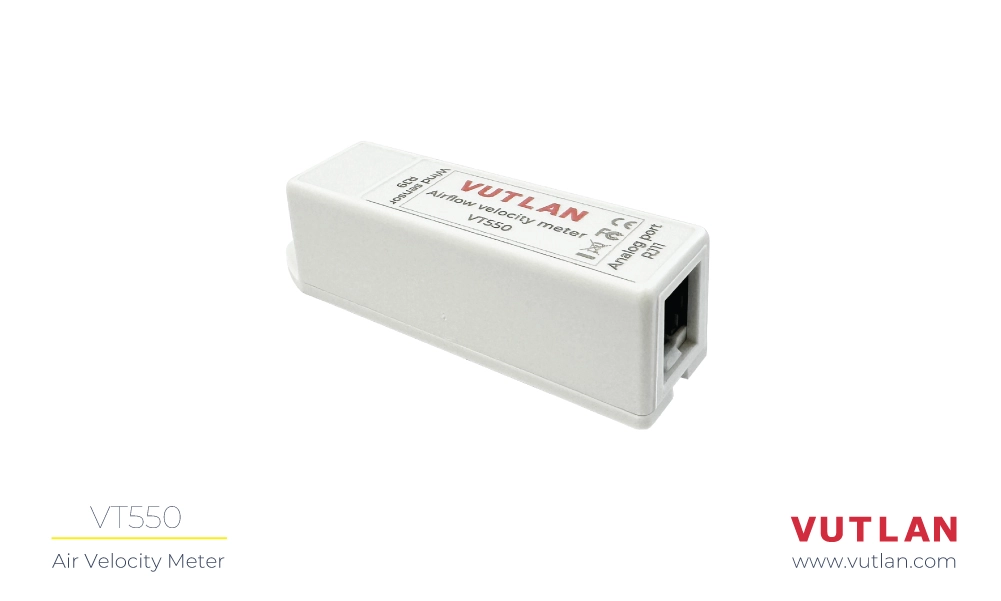

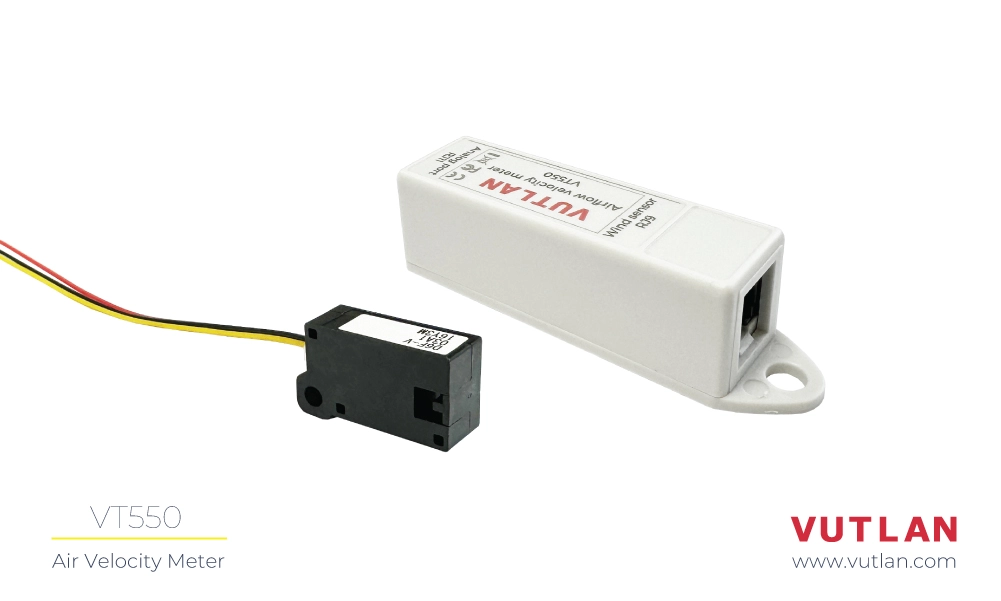

VT550 Anemometer
Previous
Next
Description
The VT550 Anemometer is designed to measure air flow velocity generated by devices such as air conditioners, HVAC systems, fans and ventilation systems.It monitors air flow in the range of 0 to 3 m/s.
This plug-and-play sensor easily connects to any analog port of Vutlan monitoring devices.
The maximum amount of sensors can be extended using the VT408 / Sensor extension unit.
Specifications
Type of sensor:
Analog sensor
Measures:
Anemometer, air flow meter
Wind velocity range:
0 to 3 m/s
Response time:
0.1 seconds
Dimensions
600×18x18 mm
Cable length:
6P4C RJ11/RJ12, telephone cable 2m included
Power consumption:
60 mW
Operating temperature:
Optimal temperature range: -10° C to +80° C
Operating humidity:
0 to 95 % (Non-Condensing)
Inputs:
RJ9 (4p4c) (wind velocity meter)
Outputs:
RJ11 / RJ12 (6p4c) (to the monitoring unit)
Mounting possibilities:
Mounting bracket included for installation inside IT racks and cabinets
Max. distance from the unit:
50 m
Preconfigured sensetivity:
Yes
Manufactured in:
Slovak Republic, E.U.
HS Code:
9030 33 100
EAN:
8588009886235
Use cases
These applications make the VT550 a valuable tool for effective airflow management across different settings.
- Accurate system monitoring: measures air flow rates near air conditioners, ventilation systems and fans.
- Environmental Control: Used to control equipment cooling and prevent overheating.
Previous
Next
Sensor features
Logic schemes
Logical schemes are used to set automatic actions in response to events occurring in the system.
Dashboard view
The monitoring interface can be customized for each user.
There are widgets with multifunctional graphs and gauges.
Thresholds
Each sensor has 5 alarm thresholds for logical control and notifications.
Graphs and Logging
Vutlan supports recording to SD card and USB stick.
Data from the entire system loaded with sensors is stored for up to 3 years.
Previous
Next
Add more analog sensors using VT408 extension unit.
Each VT408 extension unit connected to the Vutlan monitoring device via the CAN bus adds the ability to connect 8 analog sensors to the system.
Sensors connected to the unit are automatically displayed in the system.
Systems with analog ports:
To read data from analog sensors you will need Vutlan monitoring devices.
