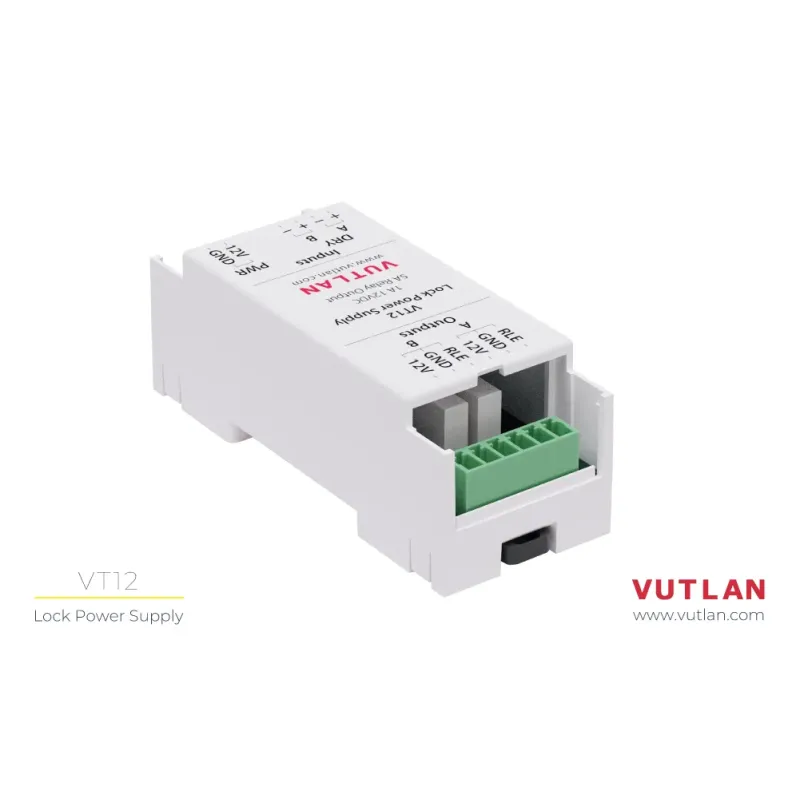

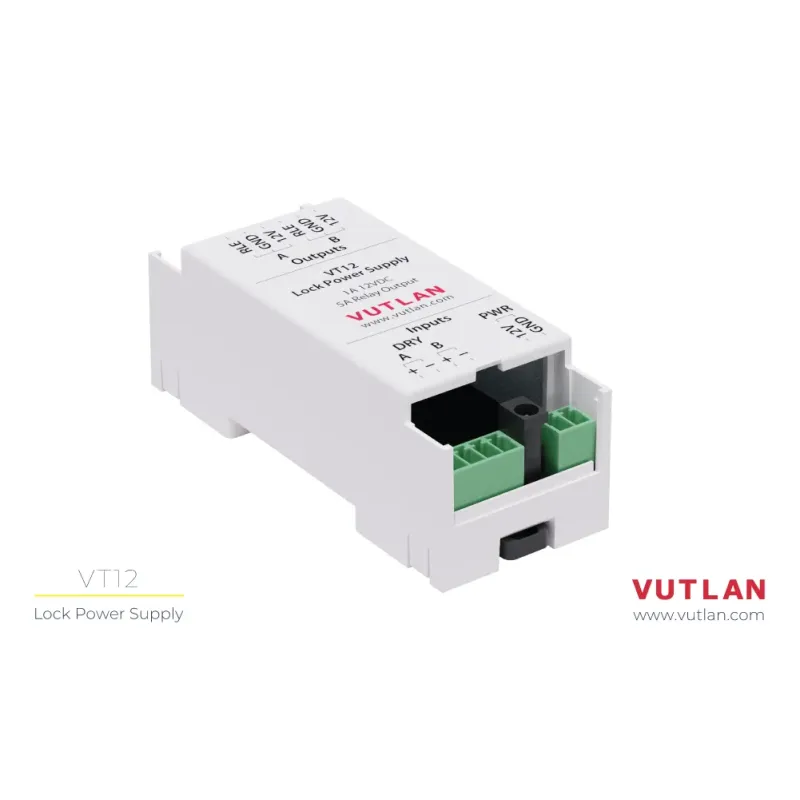

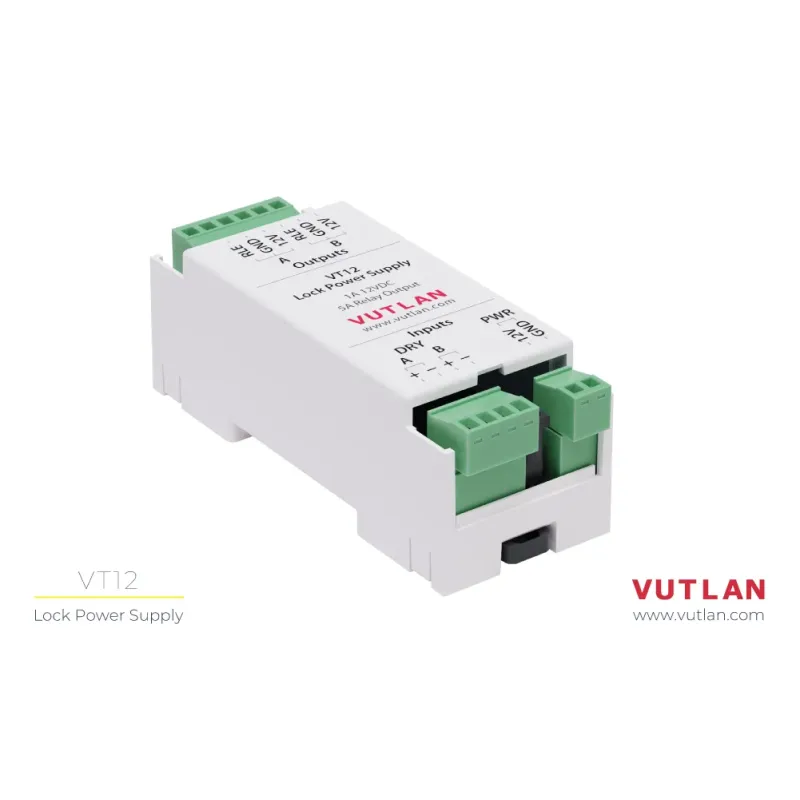

VT12 Lock Power Supply

VT12 Relay Module, power supply controlled using dry contacts
VT12 Relay Module, power supply controlled using dry contacts
VT12 Relay Module, power supply controlled using dry contacts
VT12 Relay Module, power supply controlled using dry contacts
VT12 Relay Module, power supply controlled using dry contacts
VT12 Relay Module, power supply controlled using dry contacts
VT12 Relay Module, power supply controlled using dry contacts
VT12 Relay Module, power supply controlled using dry contacts
VT12 Relay Module, power supply controlled using dry contacts
VT12 Relay Module, power supply controlled using dry contacts
Previous
Next
Description
Use cases
Specifications
Features

Description

The VT12 Relay Module is a compact dual-channel power and switching unit designed for controlling any 12V DC devices up to 1A per output. With integrated relays and dry contact inputs, the module offers reliable switching and power delivery in a wide range of automation and control applications.

  • Dual Independent Outputs (A and B): Each output provides:

    • 12V DC Power

    • Relay-Switched Line

    • Ground (GND)

  • Dry Contact Inputs (A and B): Trigger relays using external dry contacts such as switches, sensors, access systems, or automation controllers.

  • Safe and Isolated Switching: Internal relays ensure safe operation and electrical isolation between control signals and powered devices.

The VT12 Relay Module is built to:

  • Power and switch 12V DC devices, such as electronic locks, LEDs, solenoids, fans, alarms, or relays.

  • Integrate with access control, automation, and security systems via dry contact triggers.

  • Simplify low-voltage wiring and control, replacing the need for separate relays or power modules.

  • Support two independent channels, allowing control of multiple devices from a single unit.

Its versatility makes it ideal for use in security systems, building automation, smart home setups, and industrial control panels.

VT12 Brochure
VT12 online datasheet
VT12 package content
How to connect dry contact outputs
API: Discrete sensors

Use cases

  • 1. Dual Electronic Lock Control (Access Systems)
  • 2. Smart Home Automation
  • 3. Alarm and Notification Systems
  • 4. Cabinet or Rack Control in IT & Telecom
  • 5. Industrial or Commercial Equipment Switching
  • 6. Emergency or Safety System Override

Specifications

Device type:
Power Supply
Usage:

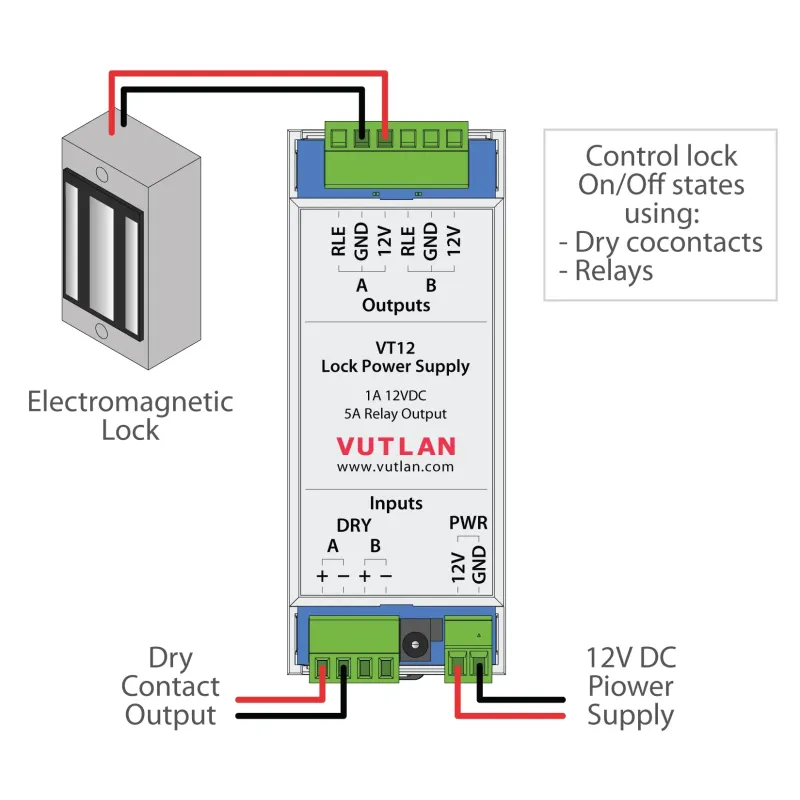

Control 12V DC power supply using dry contacts. E.g. control On/Off state of locks.
Power terminals:
2 outputs (A and B)(Relay, Ground, 12V)
Maximum output current:
1A
Relay Output:
5A
Power input terminal:
2P, pitch 3.5 mm, 12V DC
Dry contact inputs:
2 inputs (A and B), 4P, pitch 3.5 mm
Operating Temperature:
-40°C to 85°C
Storage temperature:
-10°C to 85°C
Operating humidity:
0 to 95% RH
Power Consumption:
200 mW

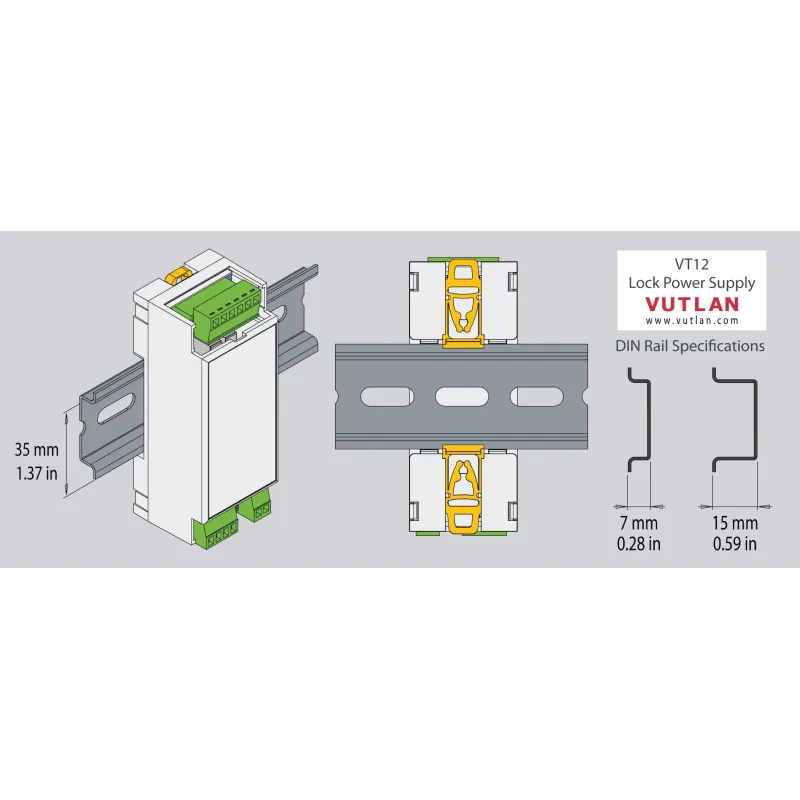

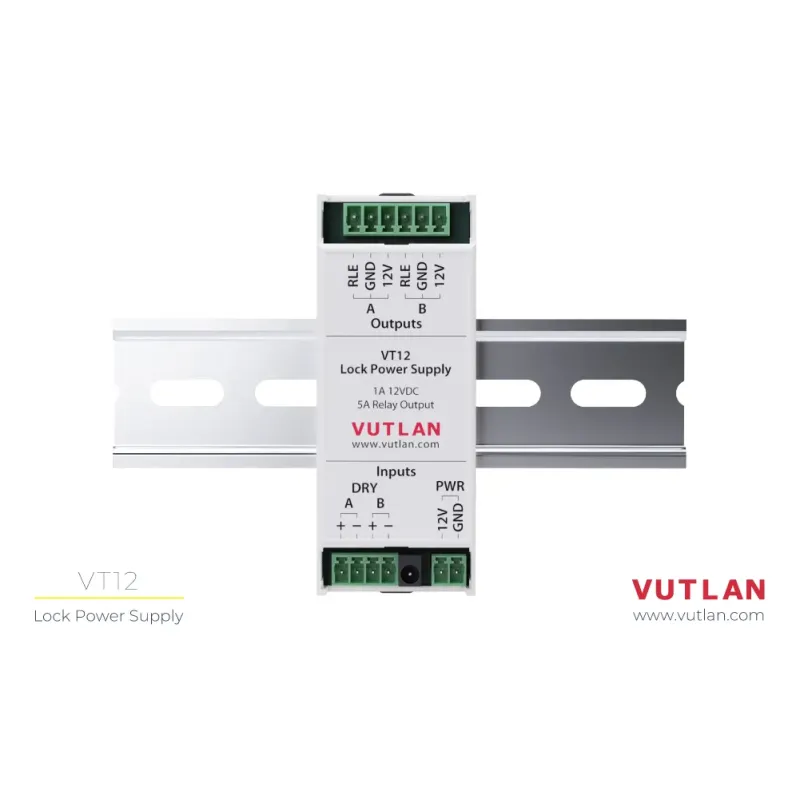

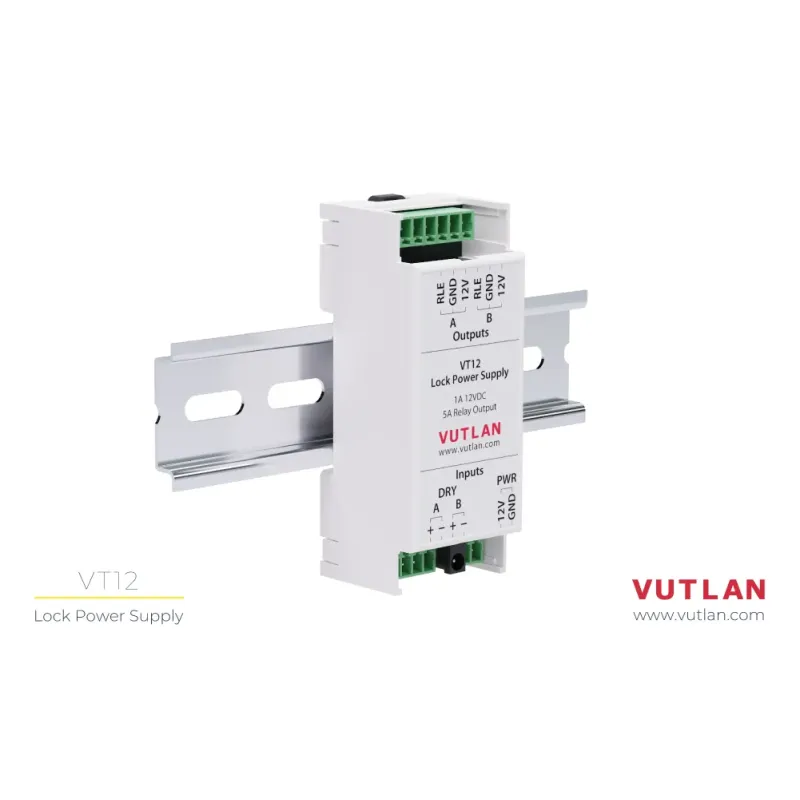

Mounting possibilities:
DIN rail
Maximum distance from dry contact output:
1-2 meters
Manufactured in (country):
Manufactured in the Slovak Republic, E.U.
HS Code:
9025 11 800
GTIN:
8588009886723

Controllers with dry contact output terminals:

Each Vutlan monitoring and control system may have a different amount of dry contact input terminals.
