VT485r Reader extension board
Previous
Next
Description

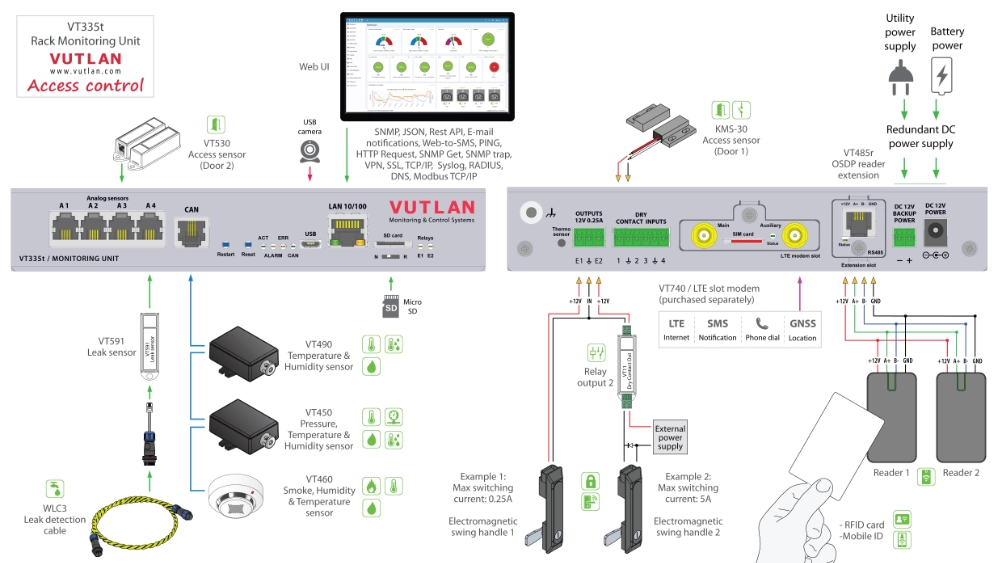

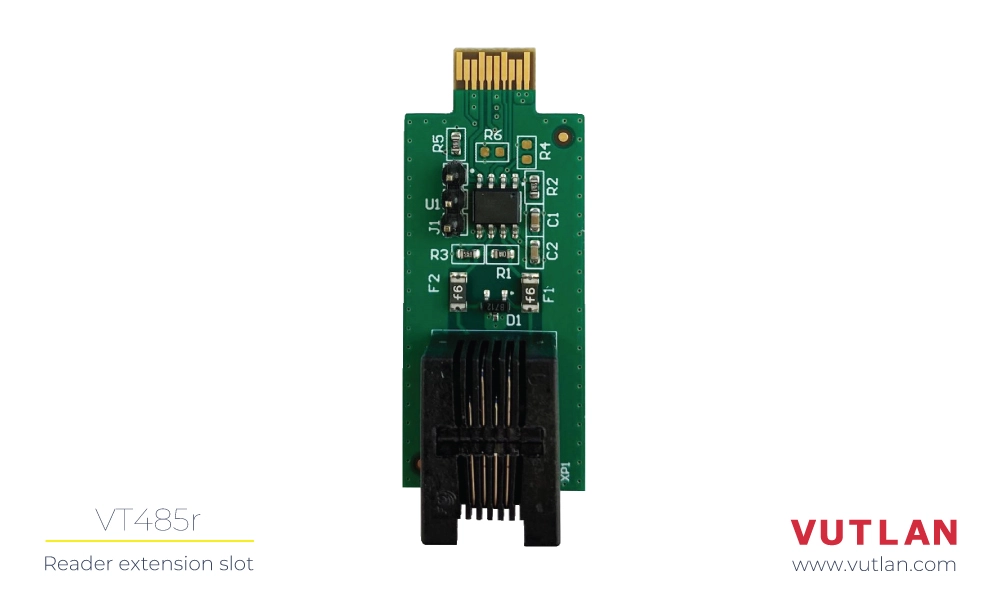

The VT485r is an extension PCB board that allows for the connection of readers and keypads that support the OSDP protocol. This board is compatible with Vutlan monitoring systems, including VT335t, VT336t, VT825t, and VT855t. It can be installed while the unit is in operation, providing flexibility and minimizing downtime. The board comes with an internal termination that is switched on by default, which can be turned off if needed.
The VT485r supports various devices such as SE mini readerand other third-party OSDP readers or keypads, making it a versatile tool for integrating access control into Vutlan monitoring systems.
Accessories
SE-mini reader:
Versatile miniature reader for proximity identifiers. Highly secure, open technology OSDPv2 reader. Resistant against moisture, dust, and vandal-proof. Easy to configure.
Specifications
Device type:
Extension PCB slot
Used for:
For connecting readers, keypads to Vutlan monitoring systems.
Control:
A separate panel in Vutlan web interface
Interface:
OSDPv2

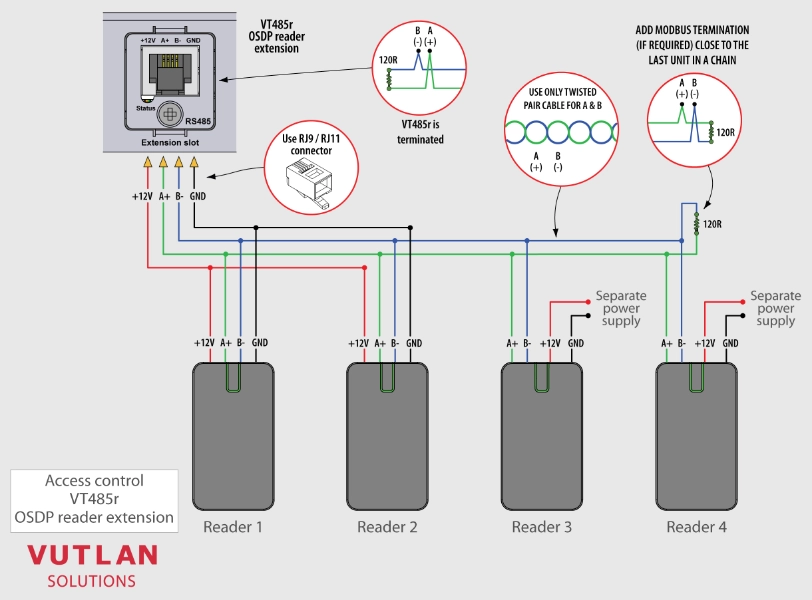

Wiring & distance:
Readers installed up to 1000 m from VT485r
Inputs/Outputs:
4P4C, RS-485
Operating temperature:
-10° C to +80° C
Operating humidity:
0 to 95 % (non-condensing)
Manufactured in:
Slovak Republic, E.U., Vutlan s.r.o.
HS Code:
8471 50 000
GTIN:
8588009886389
Controllers with VT485r extension slot:
The following systems have an extension slot for integrating the VT485r reader extension.
