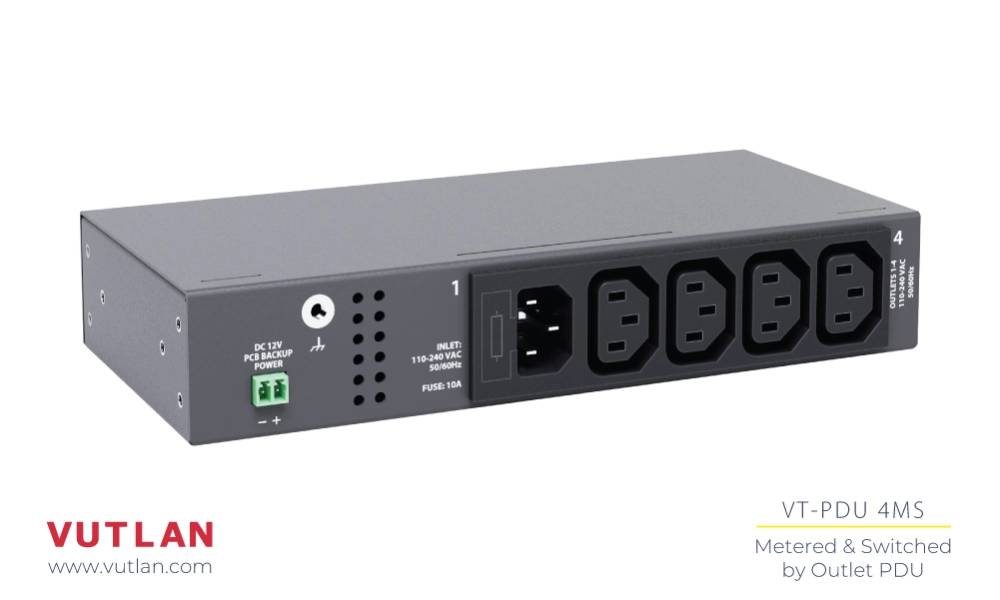

VT-PDU 4MS Switched & Metered-by-outlet PDU
Previous
Next
Description

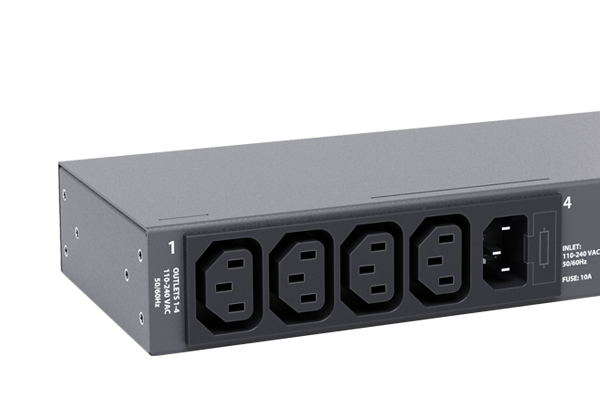

Vutlan VT-PDU 4MS Remotely Switched and Metered-by-Outlet PDU is a small unit with x4 outlets, 110/240V. Each of the four IEC-320 C13 outlets of this Power Distribution Unit can be independently controlled (On / Off / Reset / Toggle) and metered. Electrical parameters (Voltage, Current, Power, Frequency, Active / Real power, Active / Real energy) are measured with high accuracy at each outlet. The device features a LAN port for connecting to a local network.
Outputs can be controlled in the device Web Interface, using a mobile app, or over various M2M API protocols (REST API, SNMP).
Notable Features:
Environmental Monitoring: A CAN port allows connecting digital CAN sensors and CAN extensions in a chain to continuously measure essential environmental factors to ensure optimal conditions, preventing equipment damage and operational failures.
Flexible Configuration: Users can manage sensors, elements, notifications, triggers, timers, and logic schemes, allowing for tailored monitoring solutions that meet specific needs.
User-Friendly Interface: A built-in web interface has 29 languages and is very easy to use.
Remote Connectivity: Mobile-friendly web interface offers easy management and monitoring of all outputs and sensors through a mobile browser.
USB camera: USB100 Dome camera can be purchased separately and record a JPEG stream in the alarm event.
Logs: SDHC or SDXC memory cards up to 512 GB allow for storing data for up to 5 years.
Models
VT-PDU 4MS:
Switched and Metered by Outlet Power Distribution Unit
Hardware specifications
- x4 Outlets 110-240V AC, 50/60Hz
- Managed, Switched and Metered individually per outlet
- Metered parameters: Voltage (V), Frequency (Hz), Current (A), Wattage (W), Active / Real power (W), Active / Real energy (Wh)
- Connect USB100 camera for JPEG stream notifications
- Use USB hub
- Ethernet 10/100 Base-T port, provides an Ethernet connection
- Connecting the device by IP address
- PING servers, Monitor Modbus TCP meters, Monitor MJPEG IP cameras
- E-mail notifications, SNMP Trap notifications, HTTP request, Web-to-SMS
- Networking RADIUS server, NTP server, OpenVPN client, OpenVPN server, Routing, Dynamic DNS, SSL certificate
- Connect digital CAN sensors in a daisy chain
- Connect CAN extensions
- Activity, Error, Alarm, Outlets 1-4, CAN
- Restart button, Factory reset, N-R switch (Normal - Restore)
- Temperature with accuracy +/- 1 °C
- Power supply voltage sensor 12V DC with accuracy 1%

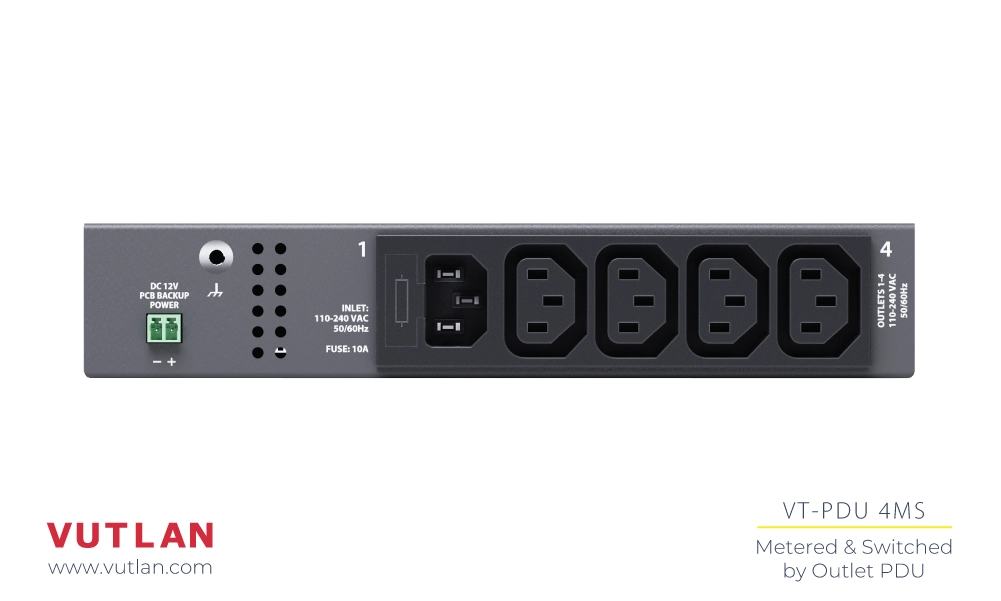

- C14 inlet, 110-240V AC, 50/60Hz
- Fuse 10A, 5x20mm

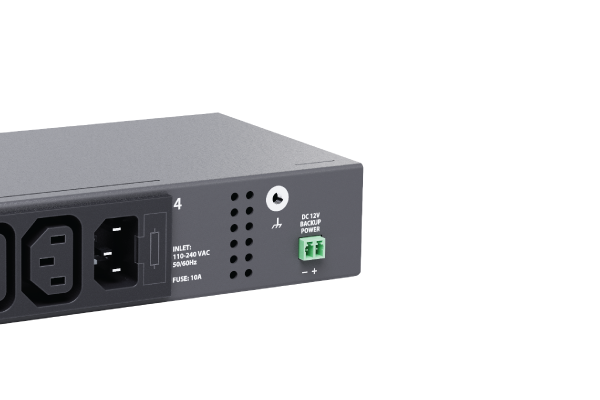

- Keeps the PCB running and allows sending alarm notifications if the main C14 inlet loses power.
- Chassis grounding, M4 thread. Enhances the immunity of the equipment against conducted and radiated RF disturbances. Please contact a professional electrician before connecting it.
Accessories
Web Interface
The Vutlan web interface provides users with a powerful and intuitive platform to manage and monitor the device, outlets and sensors. It's designed for ease of use while offering advanced features for real-time control and automation.
The Web UI is built-in into every Vutlan PDU and can be accessed by an IP address.
Key Features:

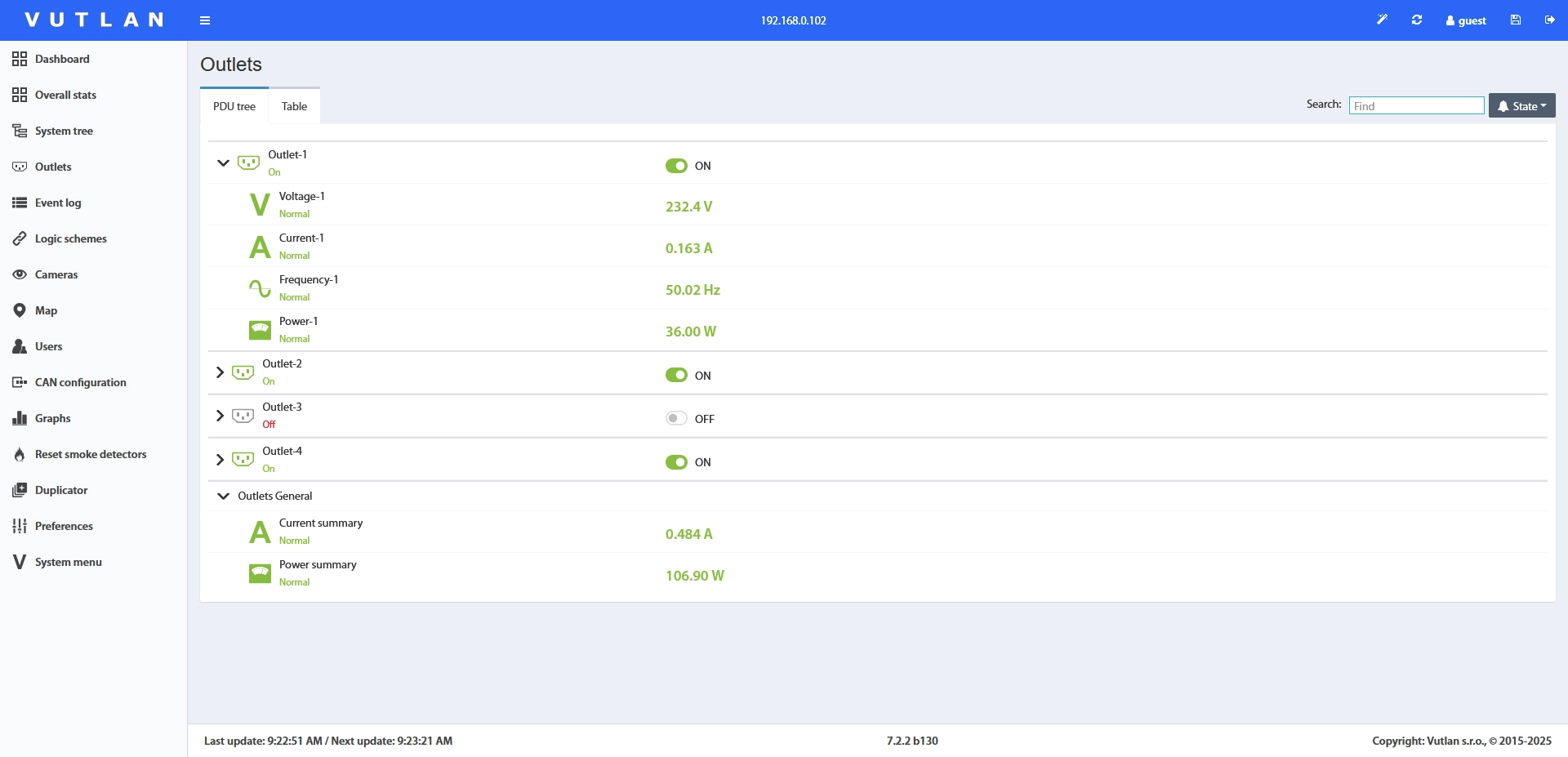

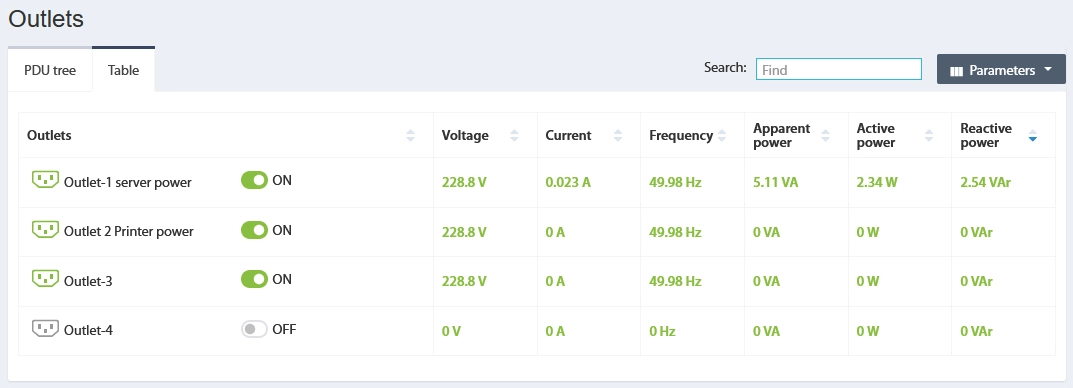

- Outlet management, monitoring, & switching: Easily manage outlets, monitor values or switch On/Off outlets manually or using logic schemes.

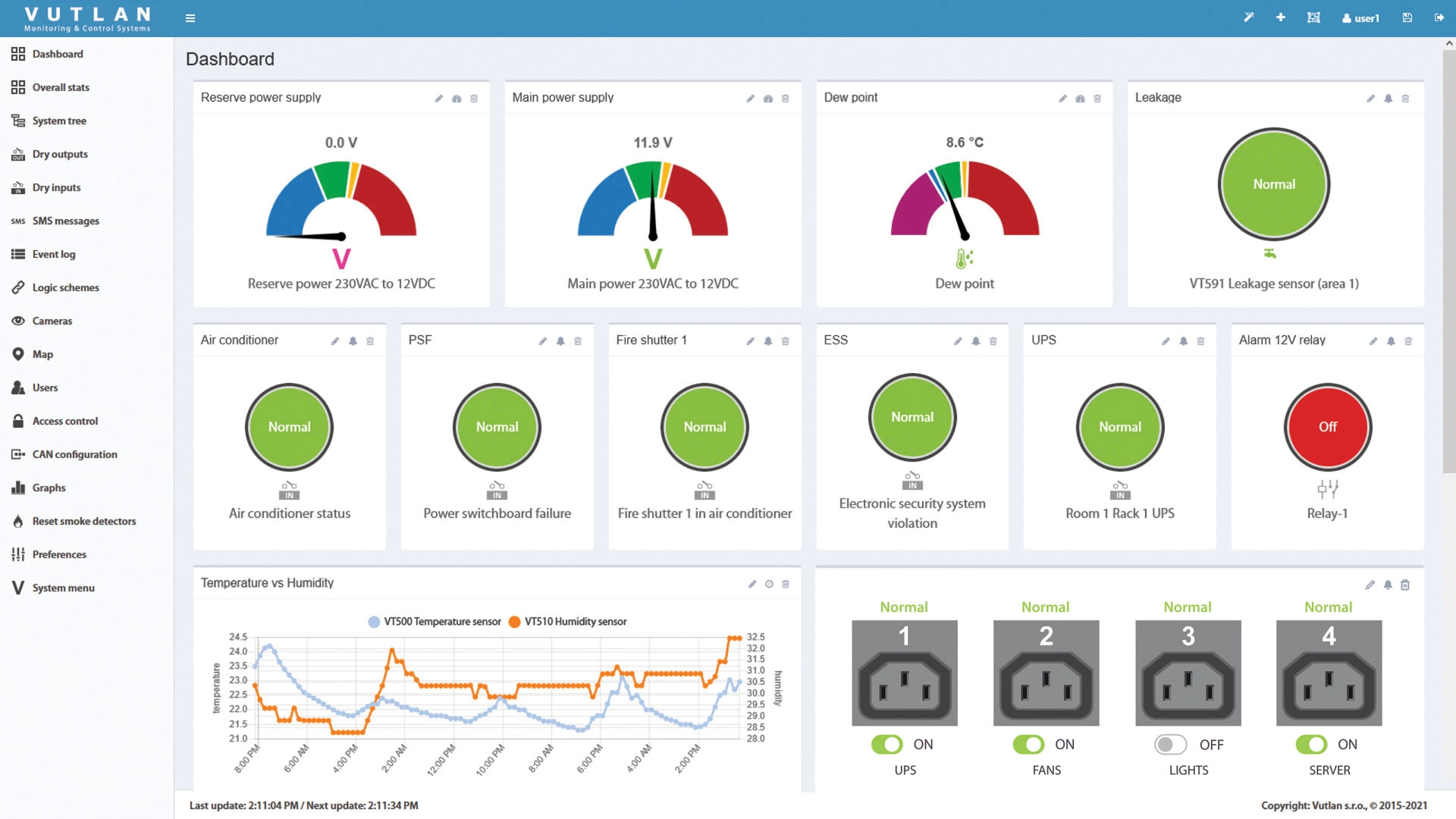

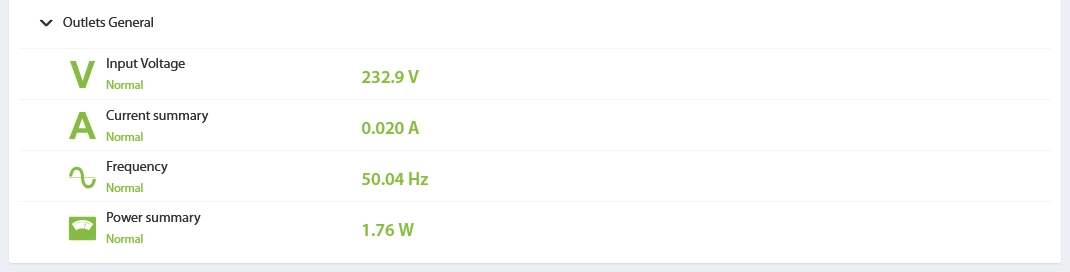

Dashboard Overview: Users can monitor live data from outlet parameters, sensors and devices, providing instant visibility into environmental conditions, power systems, and other critical parameters.
Customizable Alerts and Notifications: Alarms can be configured to trigger notifications via E-mail, SNMP Trap, HTTP request, Web-to-SMS.

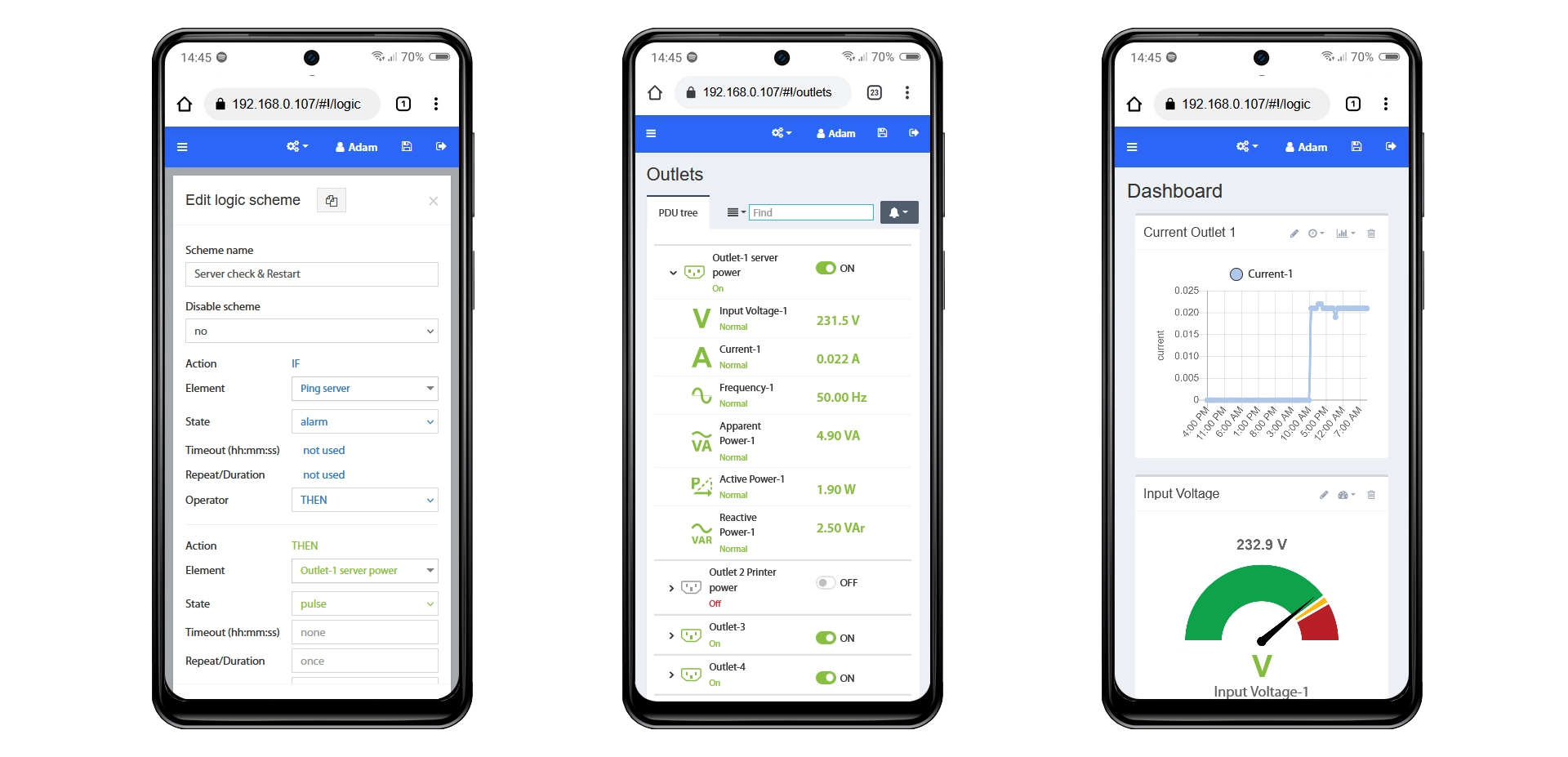

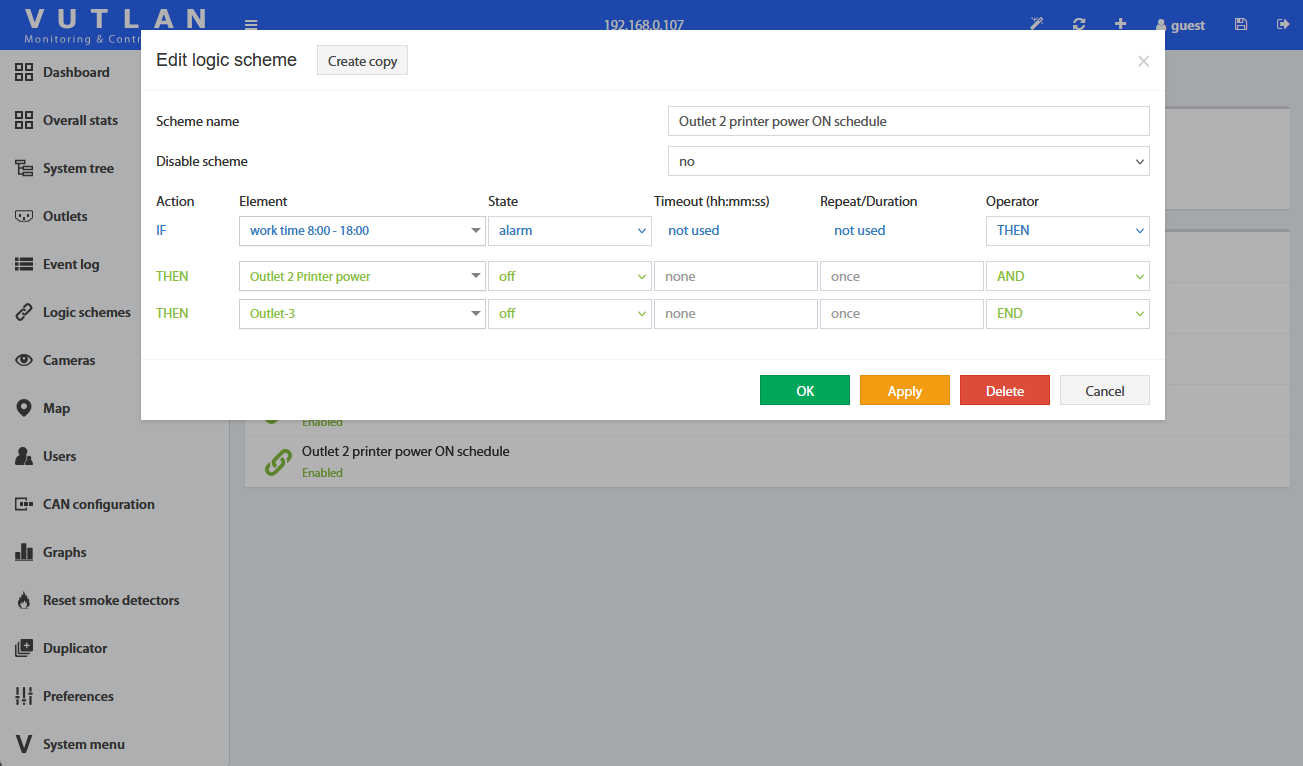

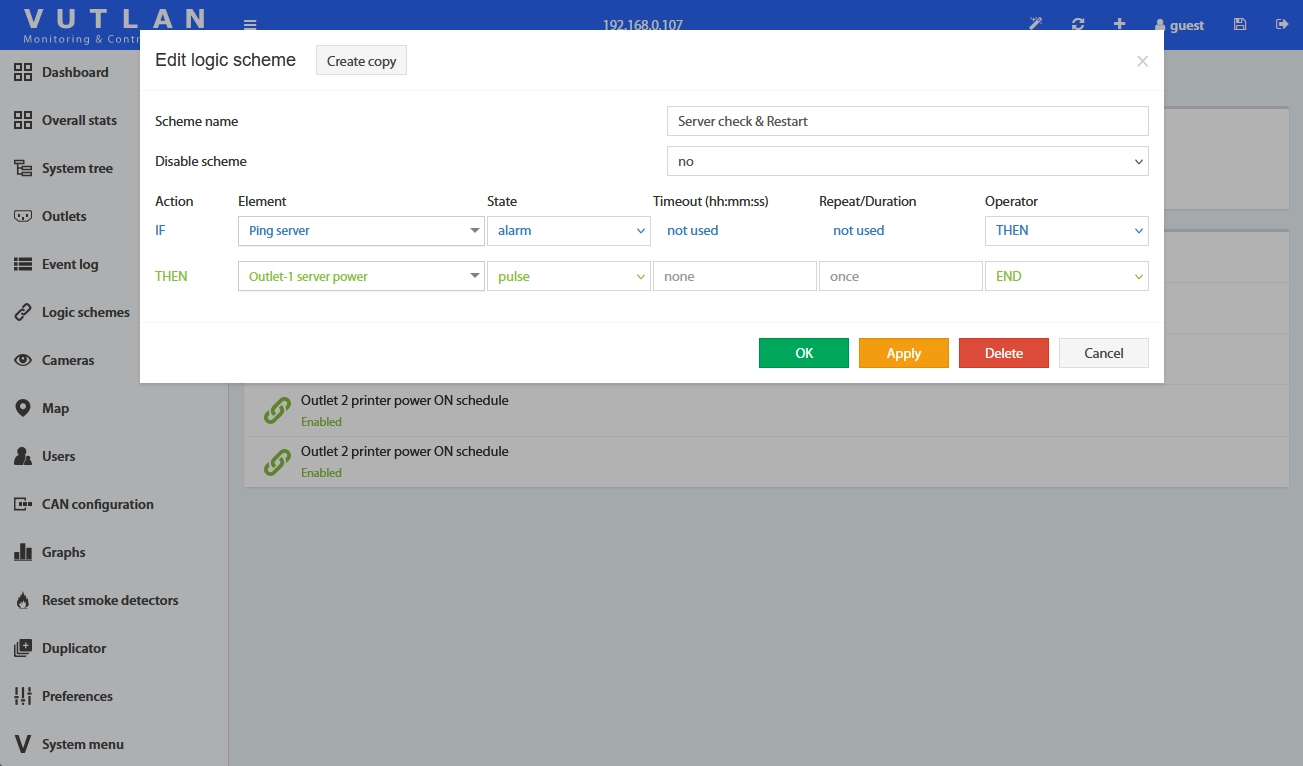

Logical Schemes: The interface allows users to create logical automation schemes to automate actions based on specific triggers (e.g., restarting a server in response to a PING).
Historical Data & Logs: Access detailed logs of events and sensor data, helping with system audits, performance analysis, and troubleshooting.
Multi-User Access: Provides different permission levels for multiple users, ensuring secure and organized management across teams.
Remote Management: The web interface is accessible remotely, enabling users to manage and monitor systems from anywhere.

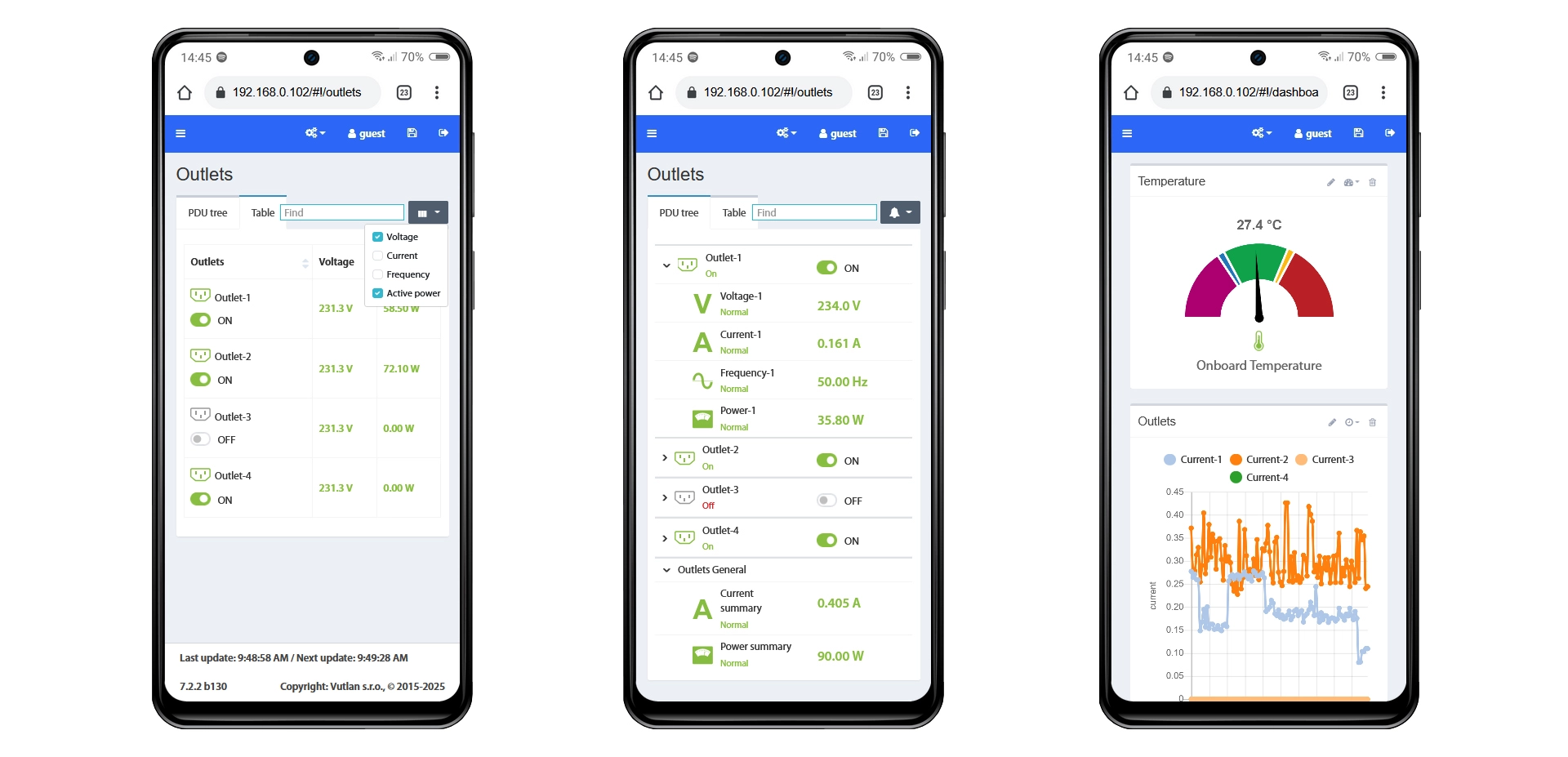

- Mobile friendly: The Web Interface is optimized for mobile and tablet devices. It can be viewed and controlled from any mobile browser.
.webp)
.webp)
.webp)
Previous
Next
Power parameters
Managing, switching, metering, what we do matters.
Advanced protocols
Vutlan supports most popular communication protocols & adding more...
SNMP v1, v2c, v3
Simple Network Protocol for connecting multiple Vutlan units to a single DCIM, NMS, and Infrastructure monitoring software.
+
Modbus TCP IP
Modbus TCP communication protocol is designed for industrial automation systems and industrial meters.
+
Open API
Allows a 3rd party software to easily communicate with the Vutlan device using a set of definitions and protocols
+
and other...
DHCP, HTTP, HTTPS, SMTP, FTP, Syslog, TLS, DynDNS, RADIUS, SSL, NTP, OpenVPN
Pushing limits
The most powerful monitoring and control systems in the world!
OS Linux
v.6.2
Processors
720 MHz, 2 Cores
Maximum sensors
150 physical sensors
Maximum elements
1000 virtual elements
Record & send video notifications
A USB100 USB camera can be easily connected to any Vutlan monitoring system via a USB port, allowing it to capture and record video in the MJPEG stream format. USB100 is purchased separately.
Alarm-Triggered Recording: When an alarm event occurs, the camera automatically records the video stream.
Flexible Storage Options: The recorded video can be saved to an SD card, or USB flash drive, or uploaded to an FTP log.
Real-Time Alerts: Video notifications can be sent through email, providing immediate visibility into critical events.
Previous
Next
Add analog sensor ports
'VT408 Sensor extension unit' and 'VT408DIN Sensor extension unit' allow the connection of analog sensors to VT-PDU 4PS or 4MS. Each VT408 unit adds x8 analog sensor ports. Multiple VT408 units can be connected using a daisy CAN chain. Sensors connected to the extension unit appear in the system automatically.
Previous
Next

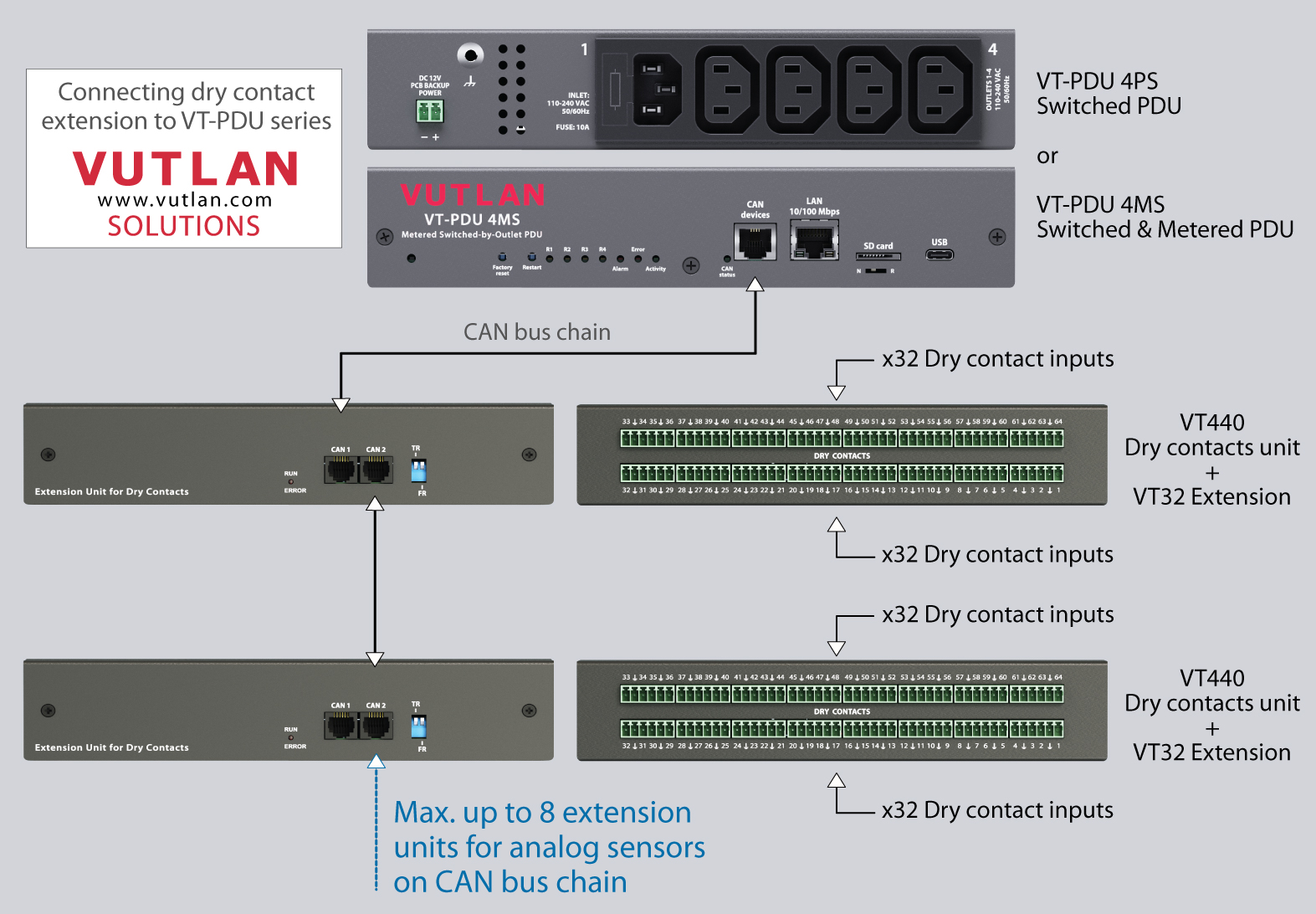

Add dry contact inputs terminals
VT440 Dry contacts extension unit allows adding dry contact input terminals to VT-PDU units.
Each VT440 unit adds x32 terminals. Each VT440 unit + VT32 extension adds x64 terminals.
Multiple VT440 units can be connected using a daisy CAN chain.
Vutlan web interface offers a separate dry contact input panel for monitoring, control, and configuration.
Previous
Next

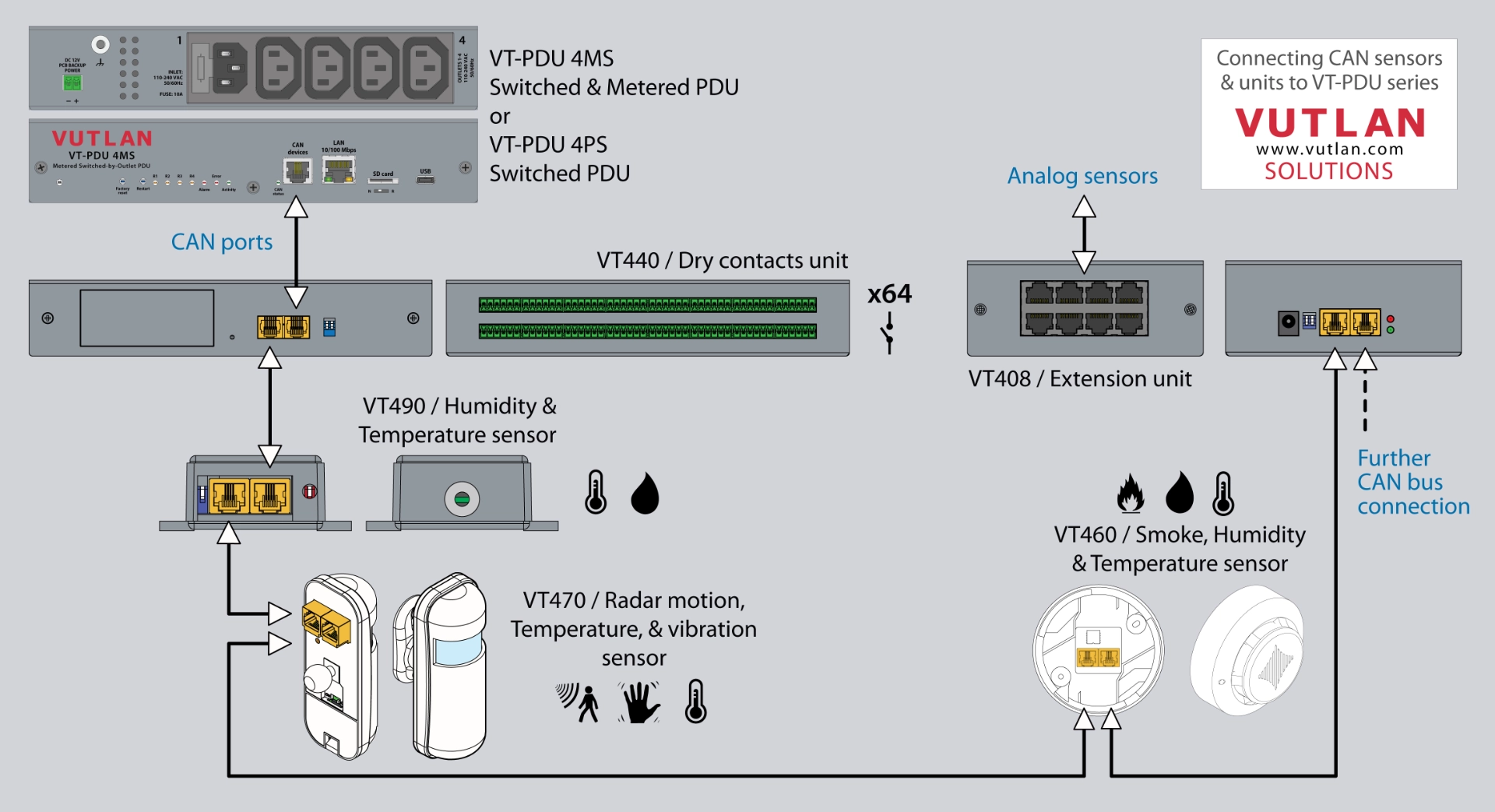

Connect CAN sensors & extensions
You can connect up to 24 CAN units in a CAN bus chain.
E.g. Each VT408 unit in a CAN bus chain adds 8 analog sensors.
E.g. Each VT440 unit adds x32 or x64 dry contact inputs to the system.
The additional power supply CAN12V-1A is needed only if the number of sensors in a CAN bus chain is more than 12 sensors. Supplies power for each additional group of 12 sensors.
Centralized Infrastructure Management Software using SNMP protocol
No matter how complex your IT infrastructure is, you can manage all assets using DCIM SNMP software, infrastructure management software.
Vutlan supports SNMP v1, SNMP v2c, SNMP v3. Hence the data from Vutlan monitoring units can be monitored from any SNMP managemnt software package.
Software specifications
- Full monitoring and control over IP
- Day / night cycles
- Manual season time setup
- Multi language web interface
- Floor map plan with layers and vectors
- System & group trees
- Logic schemes (IF, THEN, OR, AND events)
- No programming skills needed
- One time or repeated events
- Control equipment
- Send notifications
- Event triggers
- Group events
- Duplicator license is purchased separately
- For management of multiple devices
- Upload configuration and firmware
- USB camera (JPEG stream notifications)
- IP cameras (only view)
- Monitoring: modules, sensors, groups, map, USB web-cam & etc.
- CAN bus configuration
- Users DB
- Access keys DB
- Date and time configurations
- Network settings
- HTTP Server settings
- Logging settings
- Radius settings
- SNMP settings
- DynDNS
- Settings of update
- Settings of backup
- No SSH
- SSL cerrtificate
- OpenVPN client & server
- Routing
- NTP server
- Dynamic DNS
- Radius server
- Sensor graphs
