VT594 BMS leak water sensor

€68.88 Tax included

Description
Models
Components
Use cases
Specifications
Features

Description

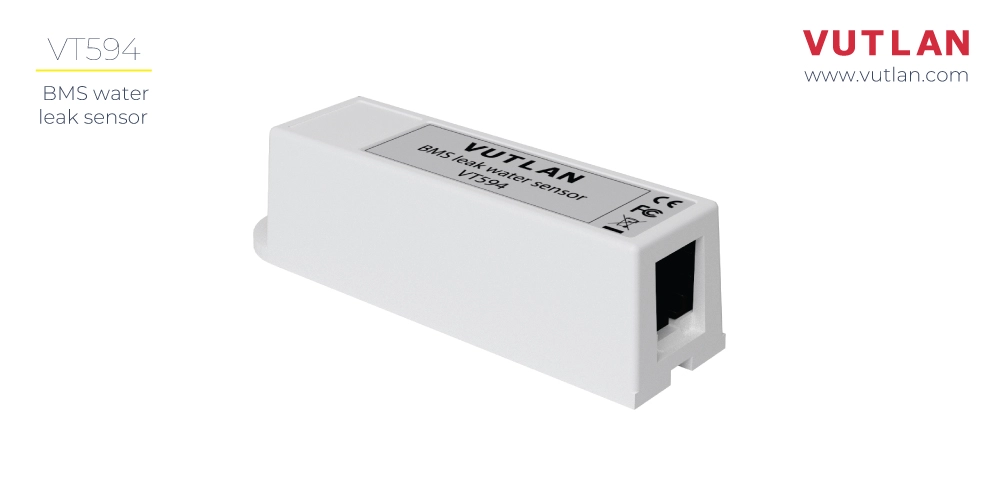

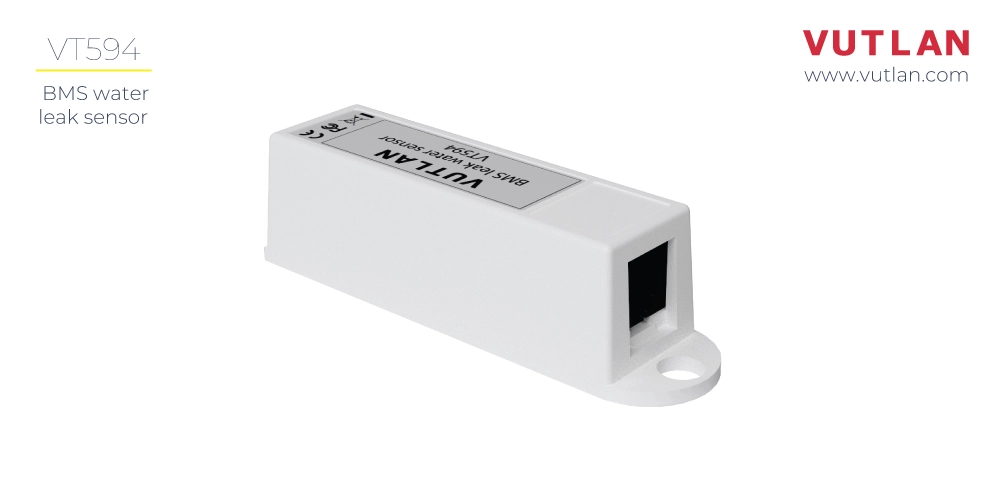

The VT594 Water Leak Sensor is designed for integration with Building Management Systems (BMS) to provide continuous monitoring for water leaks by measuring the resistance drop in the connected WLC Leak Detection Cable. This sensor requires a WLC Leak Detection Cable, which must be ordered separately and is available in a variety of lengths.

This sensor can not be connected to Vutlan controllers. It is only designed for 3rd party Building Management Systems (BMS).

Can be supplied in 12V or 24V versions!

VT594 online datasheet
VT594 package content
How to connect Analog sensors
How to configure Analog sensors
API: Analog sensors
VT594 BMS Leak Sensor - Flyer

Models

VT594-12:
12V DC power supply voltage
VT594-24:
24V DC power supply voltage

Required Components

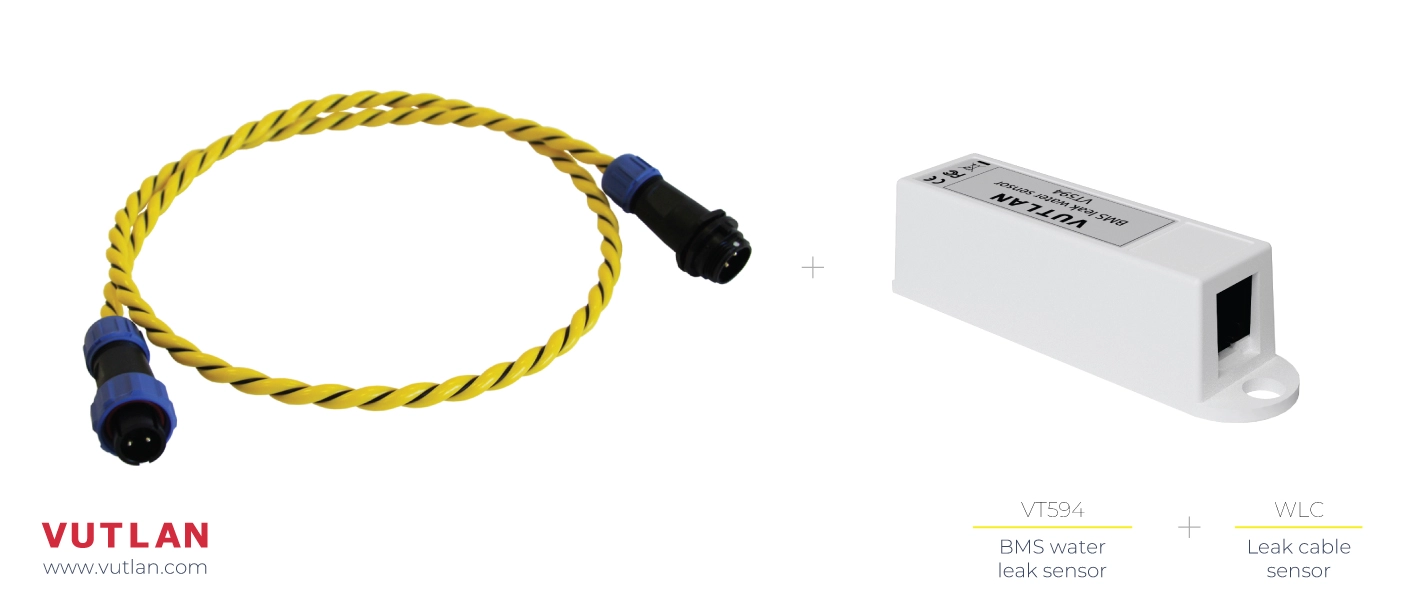

WLC / Leak detection cable

"WLC / Water leak cable" is ordered separately!

WLC Product page

Use cases

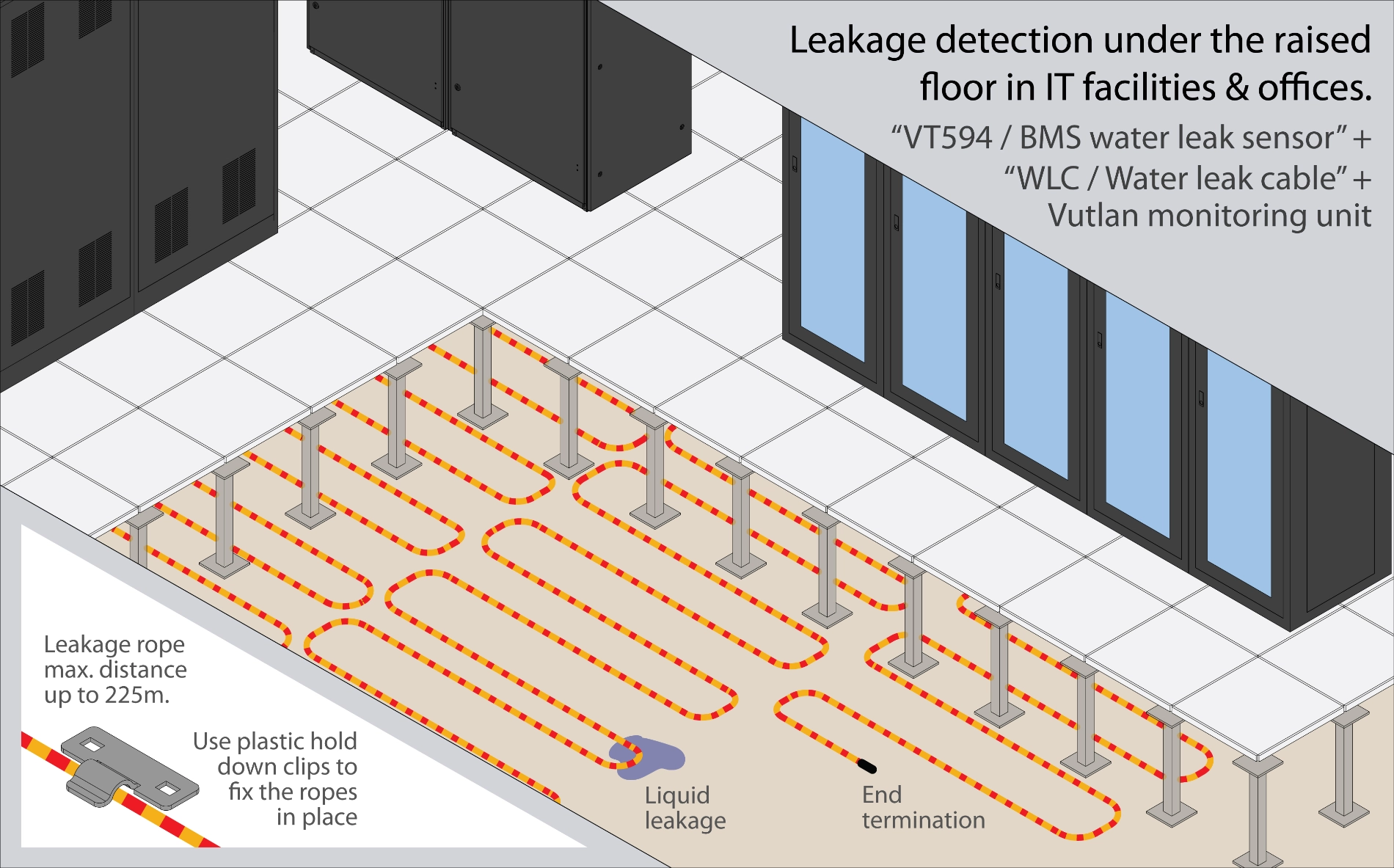

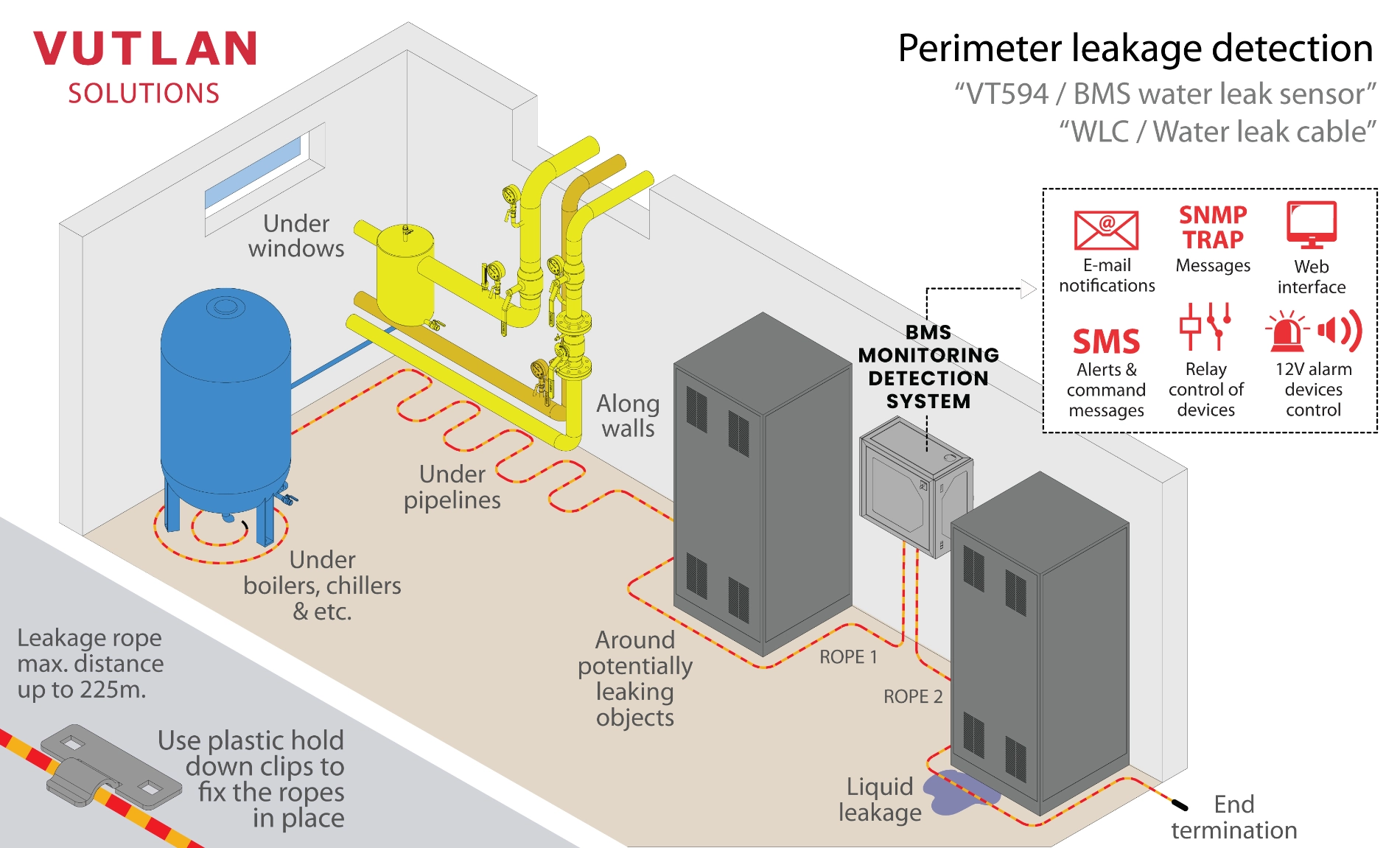

The VT594 Water Leak Sensor is used for:

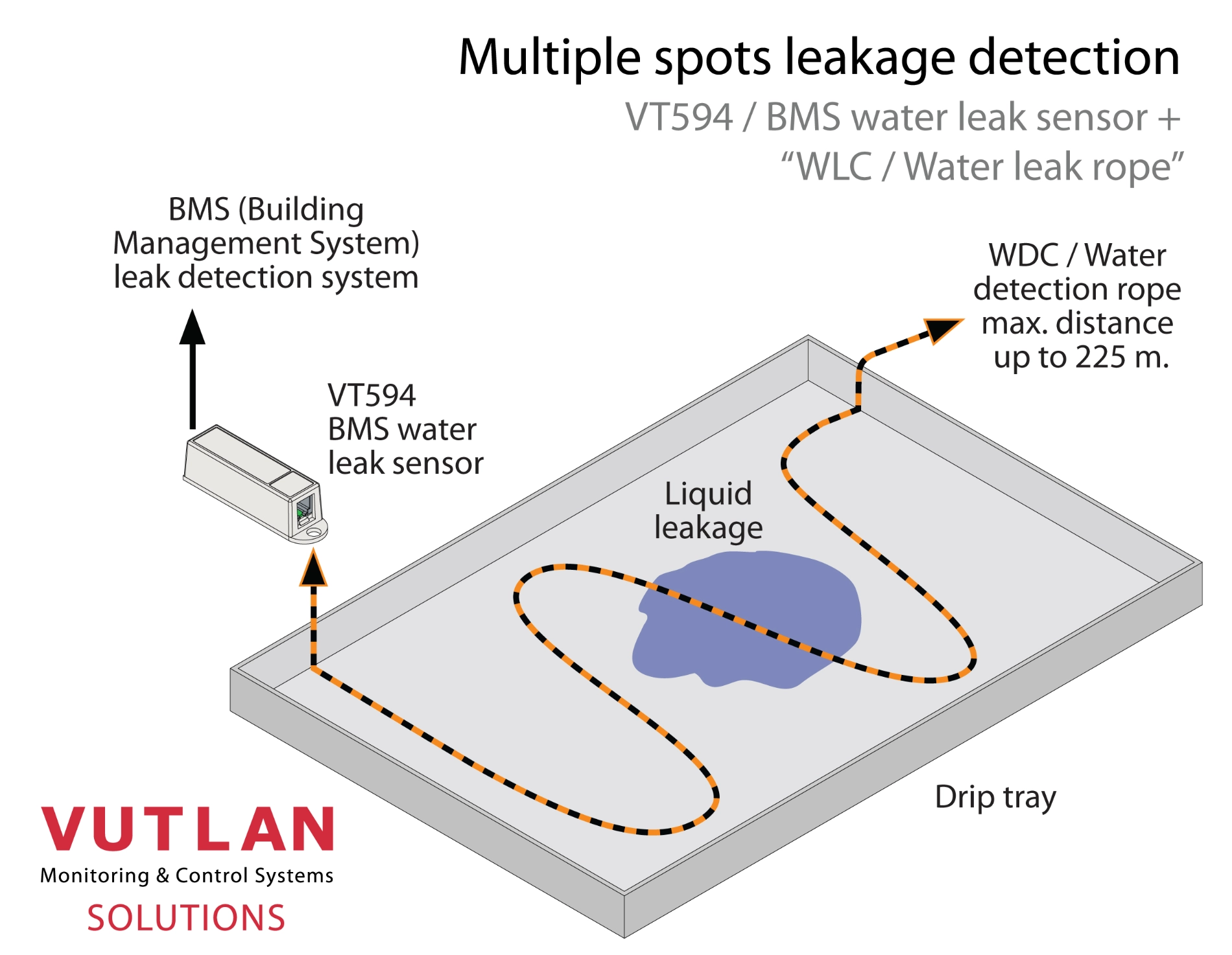

  • Leak or Flood Detection: Monitor areas prone to water leaks to detect moisture before damage occurs.
  • Integration with Building Management Systems (BMS): Easily integrates with BMS.

Specifications

Type:
BMS sensor
Used for:
Continuous monitoring for water leaks
Response time:
15 s
Recovery time:
Depends on how fast the WLC scale sensor dries out
Inputs:
2 wire (WLC cable is ordered separately)
Output:
RJ9 / RJ12, 4p4c, 6p4c
Operating temperature:
-10 °C to +80 °C
Operating humidity:
5% to 95% (Non-Condensing)
Mounting:
Sticker and screw included.
Dimensions:
60×18×18 mm
Power consumption:
50mW - No water
Max. distance:
100 m
Power supply voltage:
Order options: 12V DC or 24V DC
Origin of goods:
Made in EU
HS Code:
9025 80 400
GTIN:
8588009886662
