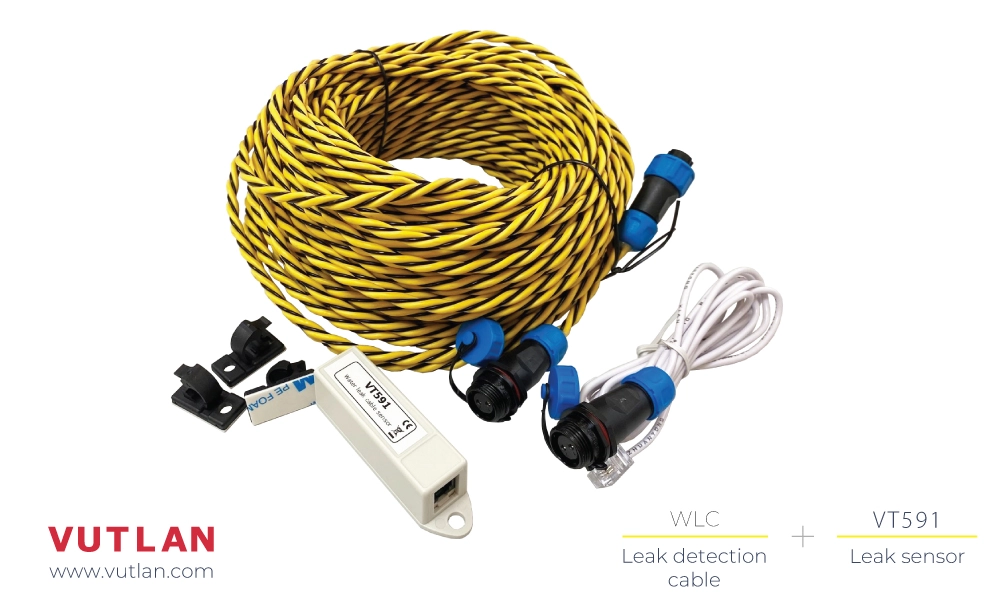

WLC / Water Detection Cable
Previous
Next
Description
The sensor detects water by the drop in resistance of the WLC water leak cable. WLC leak cable must be used together with VT591. VT591 is ordered separately.
VT591 can be connected to any analog port (A1...A8) of the Vutlan monitoring unit.
The maximum amount of VT591 sensors connected to a single monitoring unit and the maximum length from the monitoring or extension unit can be extended using the VT408 / Sensor extension unit.
Models
WLC3
WLC / Leak detection cable length is 3m.
WLC6
WLC / Leak detection cable length is 6m.
WLC10
WLC / Leak detection cable length is 10m.
WLC15
WLC / Leak detection cable length is 15m.
WLC25
WLC / Leak detection cable length is 25m.
WLC50
WLC / Leak detection cable length is 50m.
Required Components
VT591 / Leak sensor
"VT591" is ordered separately! Product page...
Downloads
Specifications
Description:
WLC can work in high humidity, pollution, and hazardous waste
Detectable liquids
Clean, polluted & distilled water; acids; alkalis; alcohols, and other electrically conductive liquid
Cable lengths:
Order options include 3m, 6m, 10m, 15m, 25m, 50m.
Diameter:
6.5 mm cable
Storage temperature:
Max +75° C
Operating humidity:
0 to 95 % (Non-Condensing)
Outputs:
2 wires
Maximum cable length:
100 meters
Previous
Next
Sensor features
Logic schemes
Logic schemes are used to specify automatic actions to events that occur in the system.
Dashboard view
The system allows to customize the dashboard individually for each user and displays the most important information on it in a visual form.
Add widgets with multi graphs, gauge meters or knobs.
Thresholds
Each sensor has Low Alarm, Low Warning, Normal, High Warning, and High alarm threshold states for logic control & sending of notification.
Graphs and Logging
Vutlan supports SD card logging up to 500 Gb. You can log a whole systems loaded with sensors for 3 years.
