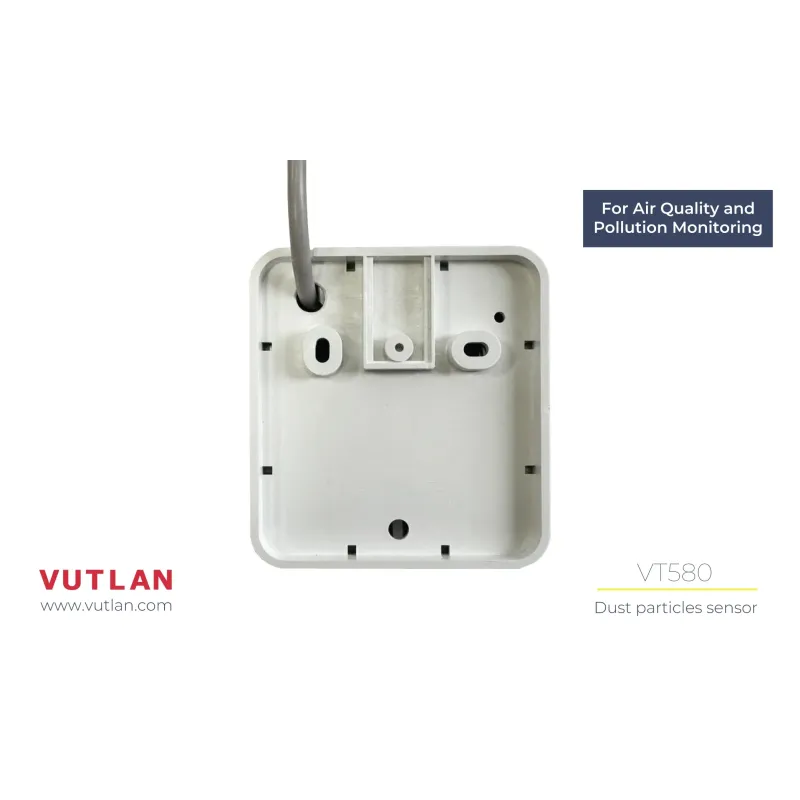

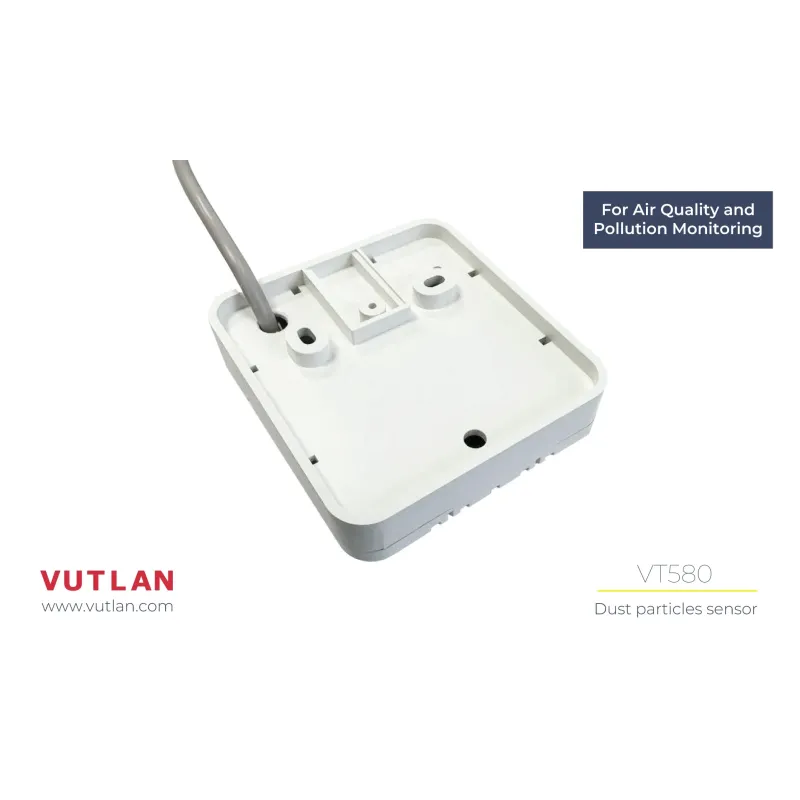

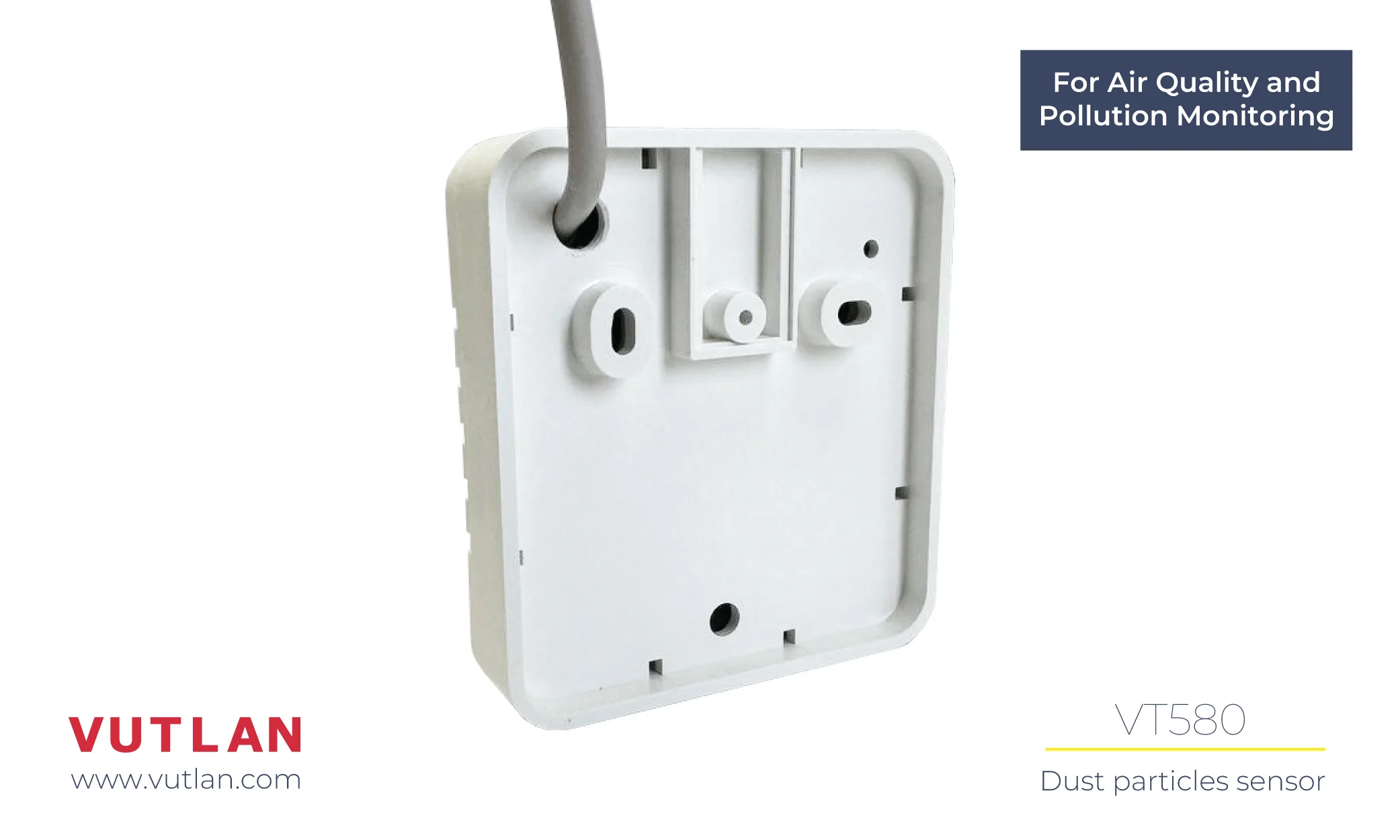

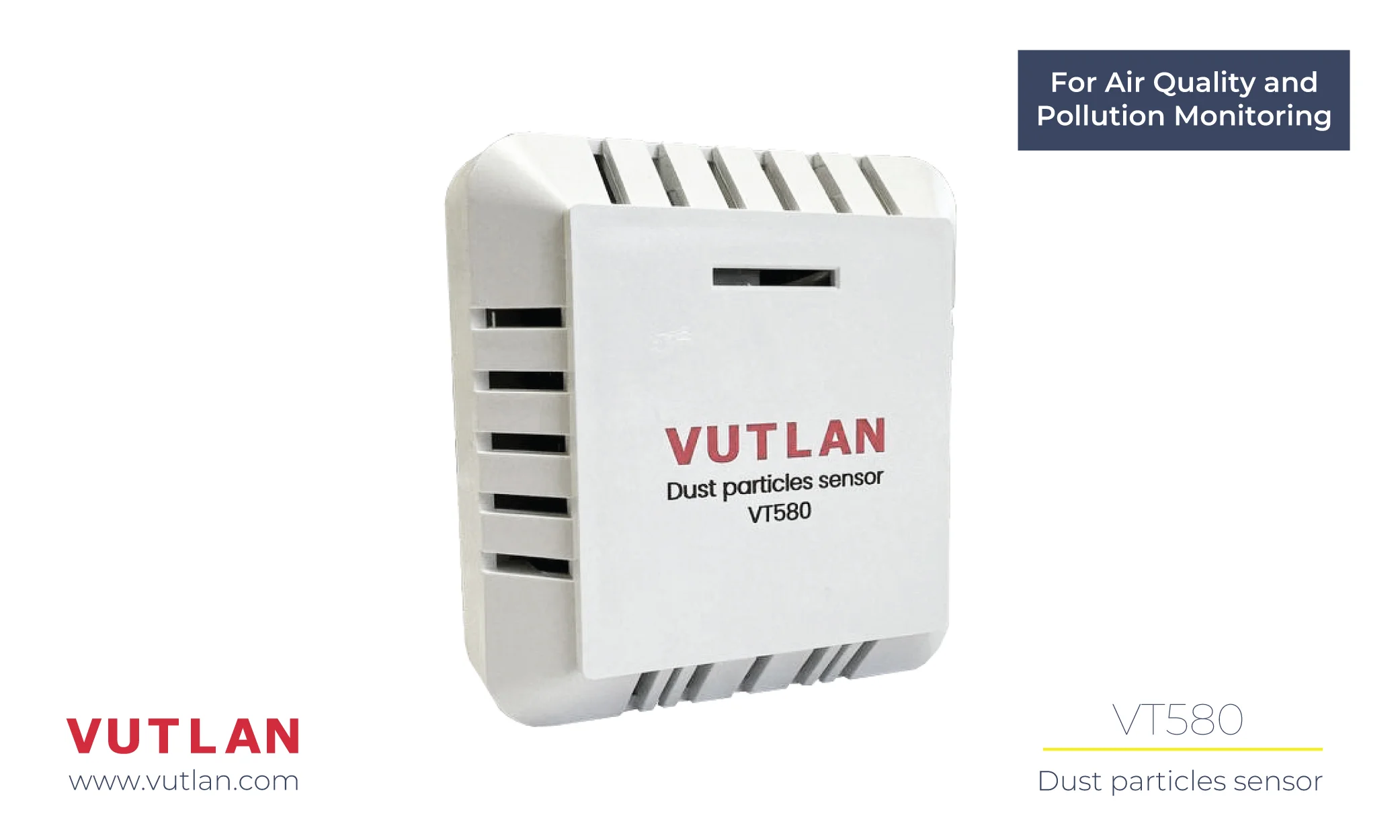

VT580 Dust particles sensor
Previous
Next
Description

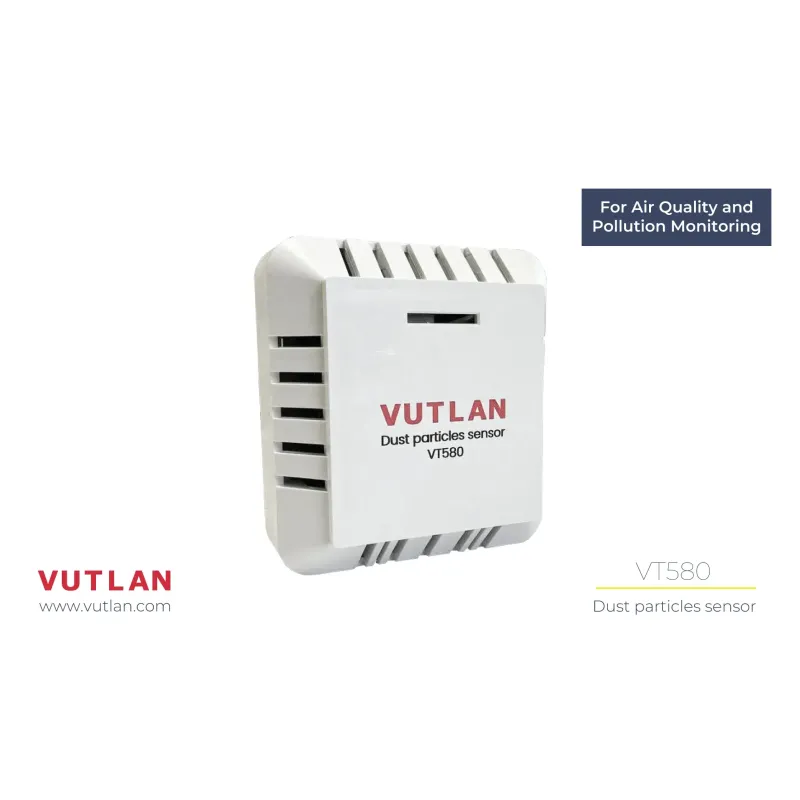

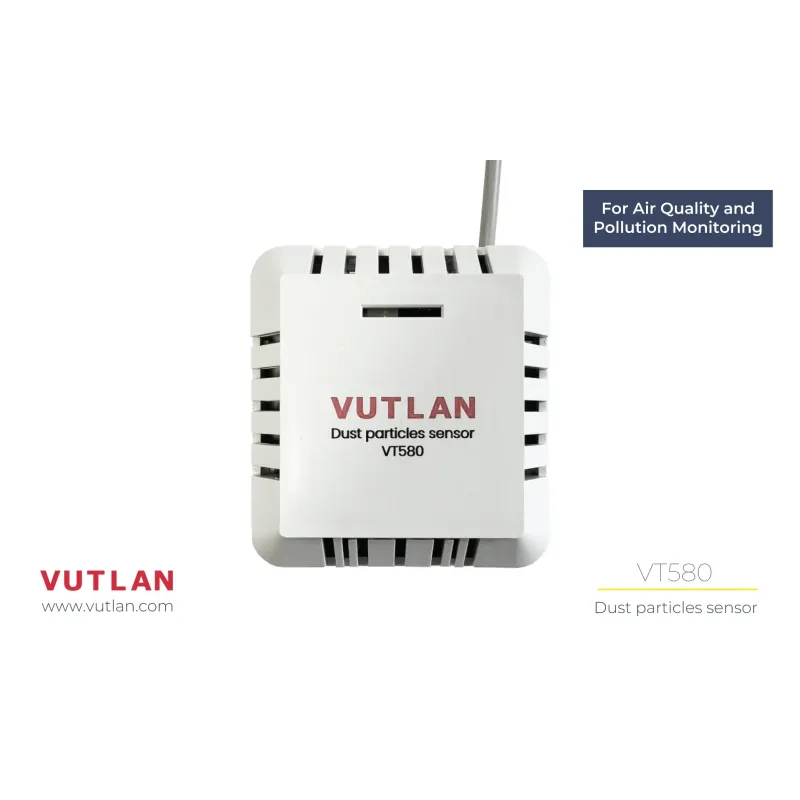

VT580 dust particle sensor is used to monitor air quality and pollution. The sensor is a technological breakthrough in particle matter sensors. Its measurement principle is based on laser scattering and based on innovative contamination-resistance technology. The probe enables precise measurements from its first operation and throughout its lifetime of more than ten years.

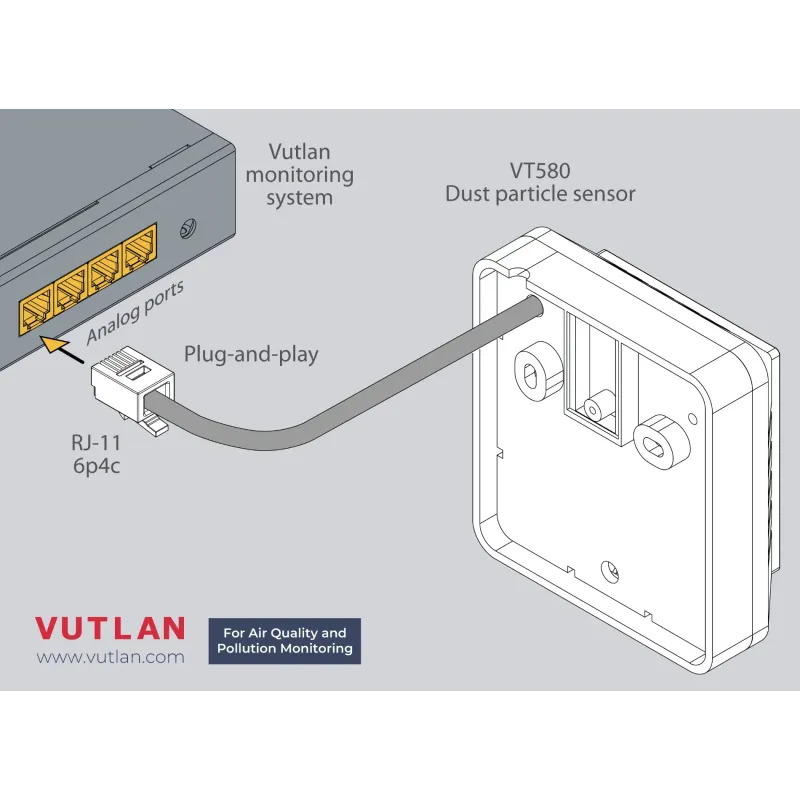

VT580 is an analog sensor and it can be connected to any analog port (A1...A8) of the Vutlan monitoring unit. The sensor is plug-and-play and can be configured for event-triggering via logic schemes.
The maximum amount of VT580 sensors connected to the Vutlan monitoring unit and maximum length can be extended using the "VT408 / Sensor extension unit" or “VT408DIN / Extension unit”.
Features:
Unique long-term stability
Advanced particle size binning
Superior precision in mass concentration and number concentration sensing
Specifications
Device type:
Analog sensor, Plug&Play
Usage:
For Air quality and pollution monitoring.
Technology:
Laser scattering based on contamination-resistance technology with optical particle counters (OPCs)
Daisy chain connection:
Not possible
Mass concentration precision
±10 %
Mass concentration range
0 - 1000 μg/m³
Lifetime
more than 10 years
Particle size range
0.3 to 10.5 μm
Best used in temperatures:
from +10° С to +40°C
Best used in humidity:
from 20% RH to 80% RH
Operating Temperature:
-10 to +60°C
Operating humidity:
0 to 95% RH
Power Consumption:
Max. 400 mW in operation mode,

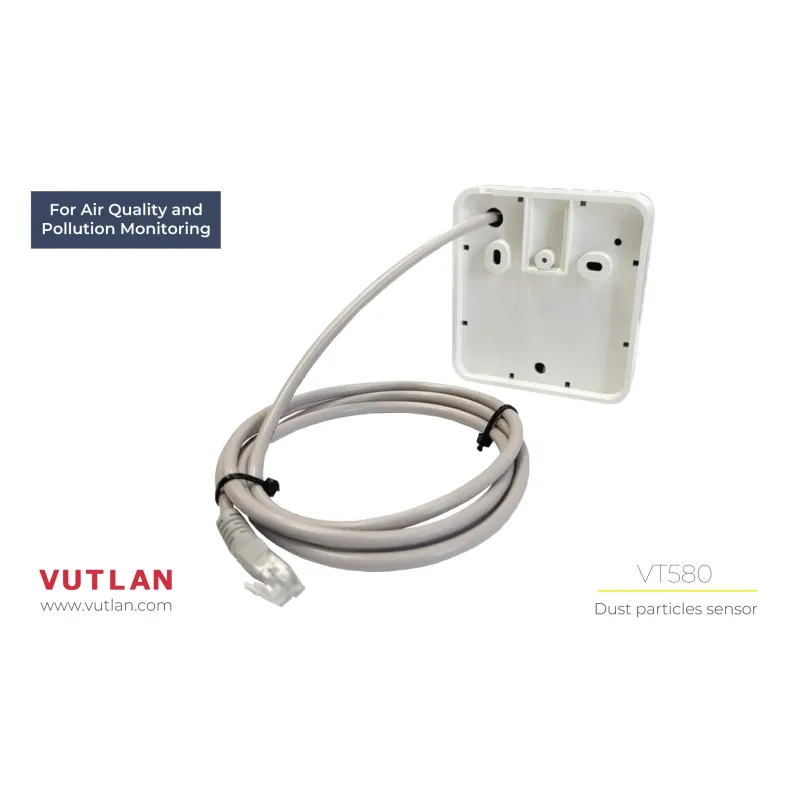

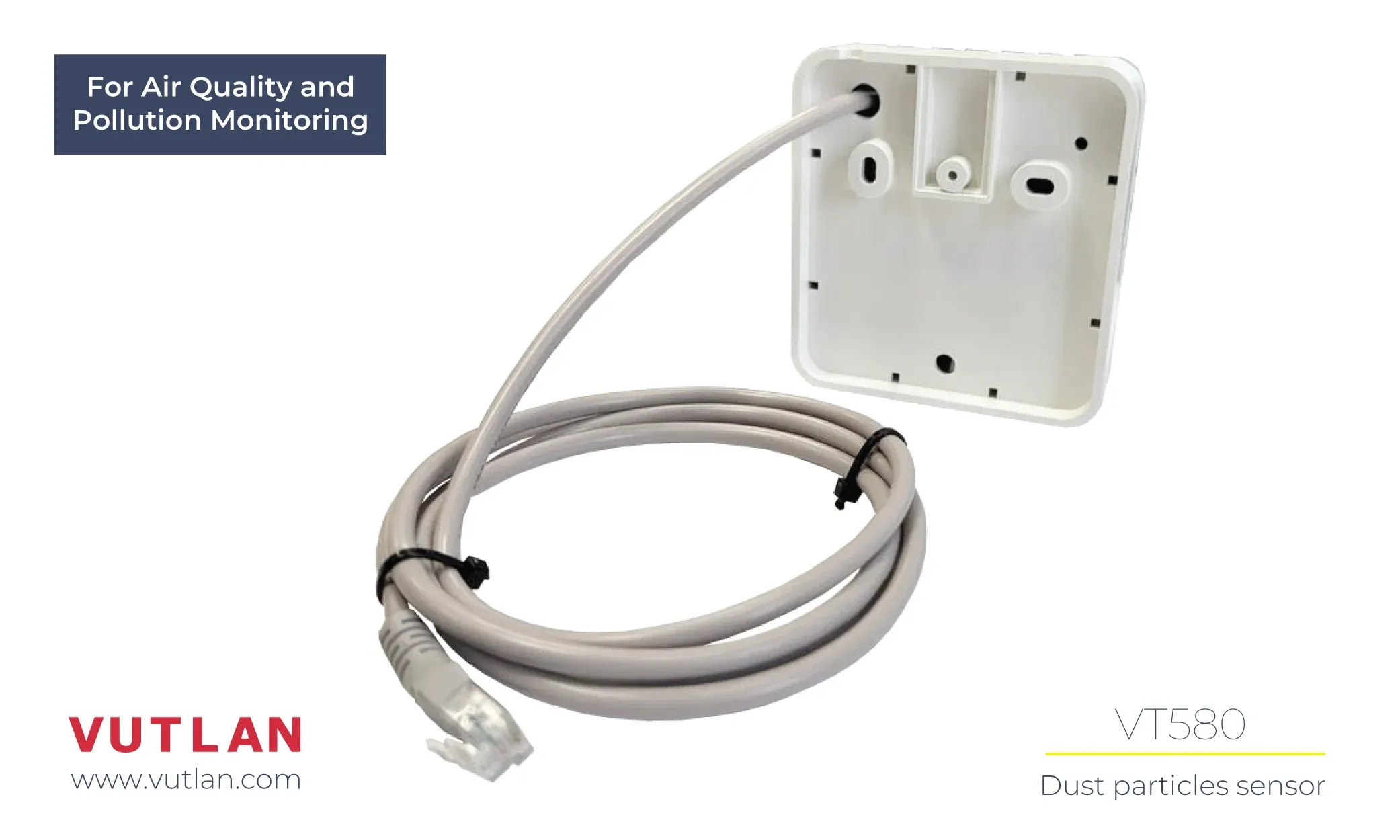

Cable length:
2 m

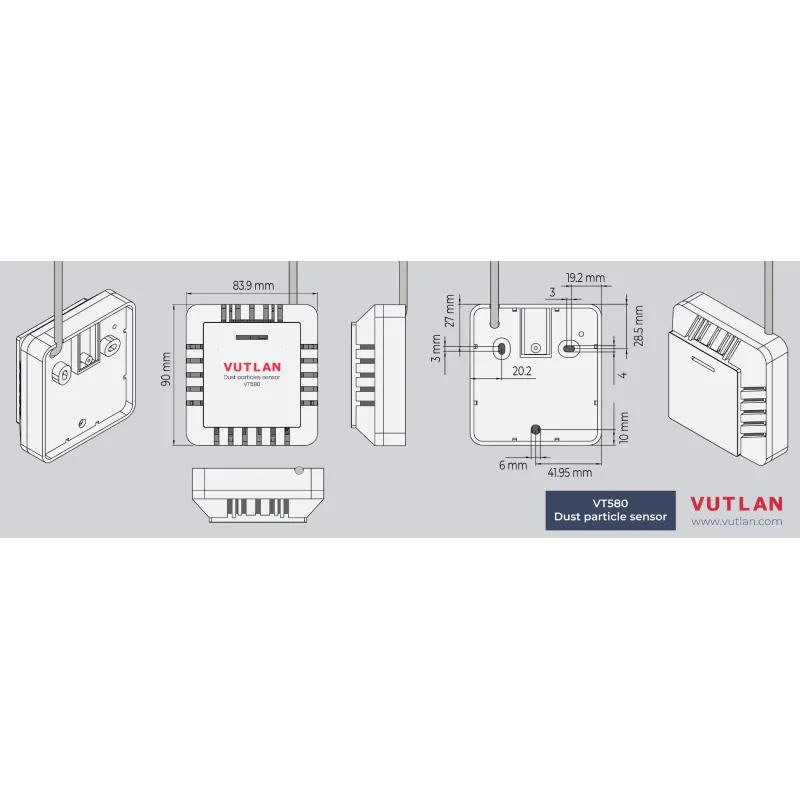

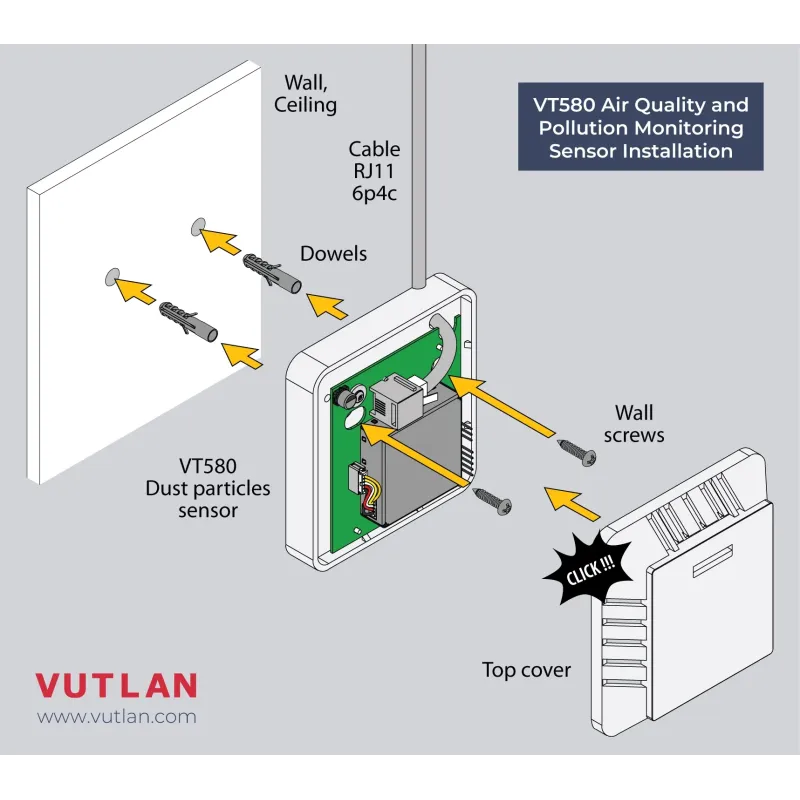

Mounting possibilities:

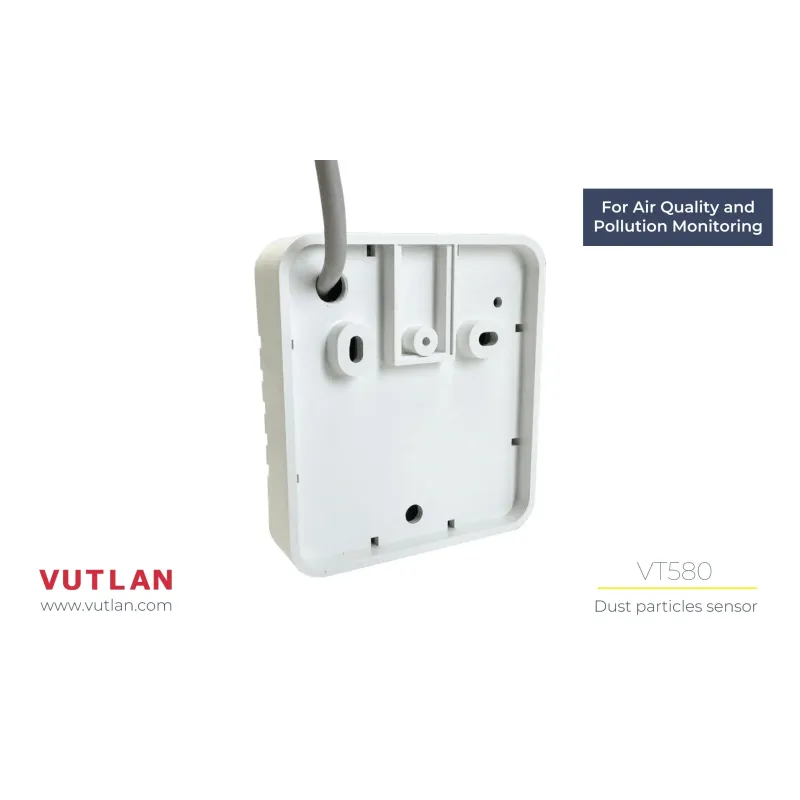

Wall or ceiling mount
Output terminal:
x1 RJ-11, 6p4c
Max. distance from the unit:
50 meters from Vutlan controller or from “VT408 / extension unit” or from “VT408DIN / DIN extension unit”
Certification standards:
MCERTS-certified
HS Code:
9027102000
GTIN:
8588009886655
Previous
Next
Sensor features
Logic schemes
Logic schemes are used to specify automatic actions to events that occur in the system.

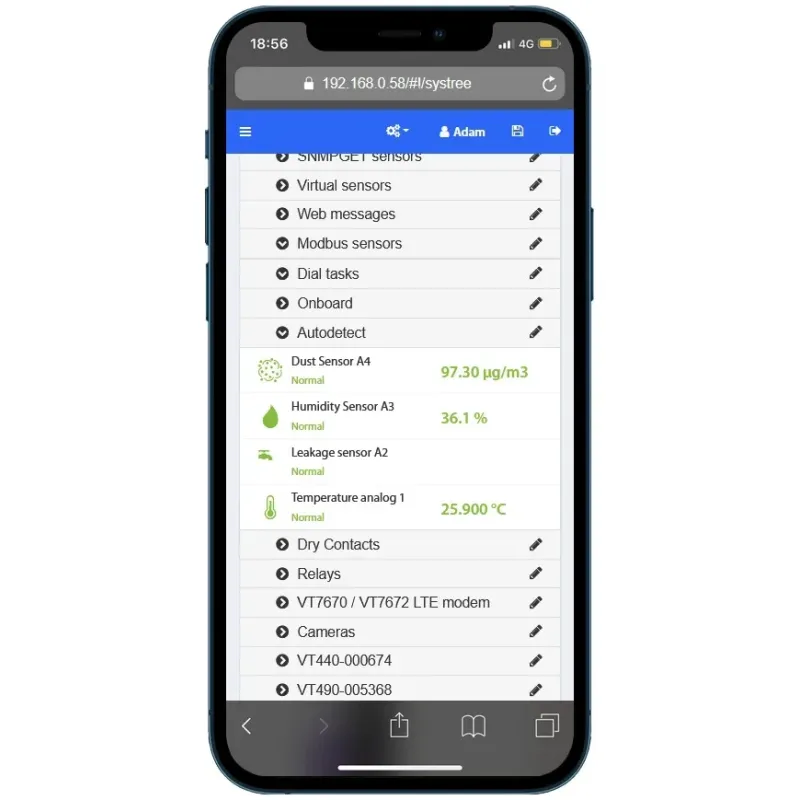

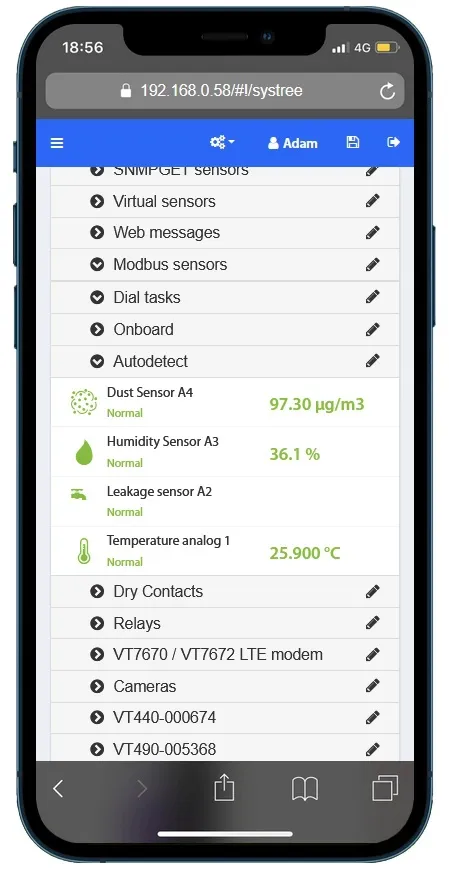

Dashboard view
The system allows to customize the dashboard individually for each user and displays the most important information on it in a visual form.
Add widgets with multi graphs, gauge meters or knobs.

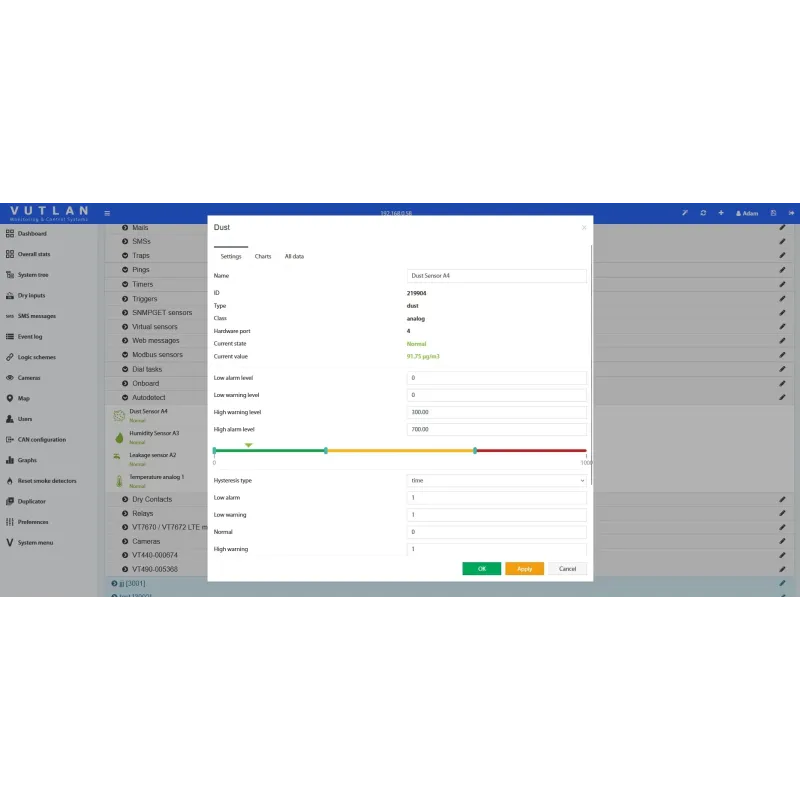

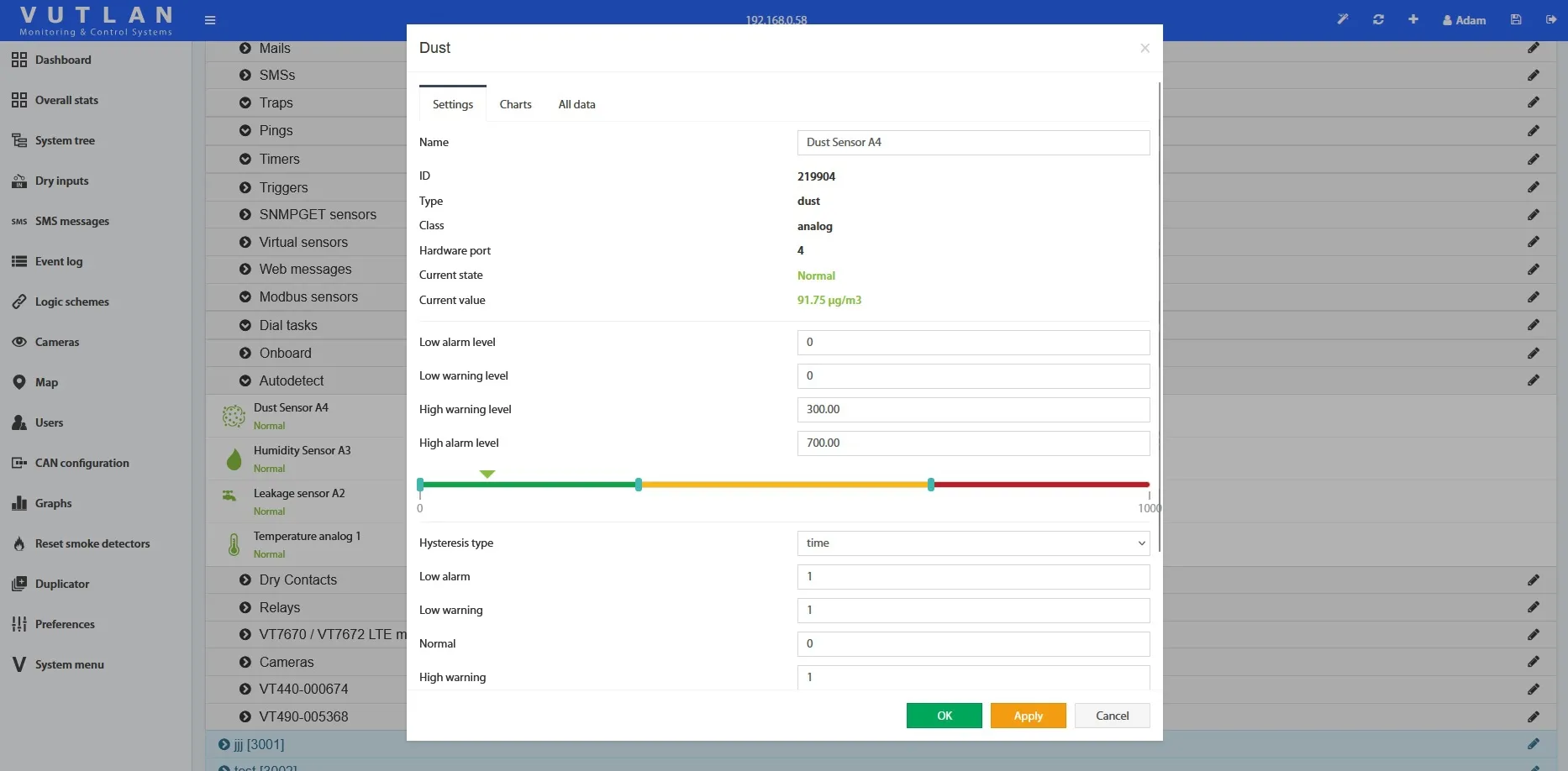

Thresholds
Each sensor has Low Alarm, Low Warning, Normal, High Warning, and High alarm threshold states for logic control & sending of notification.

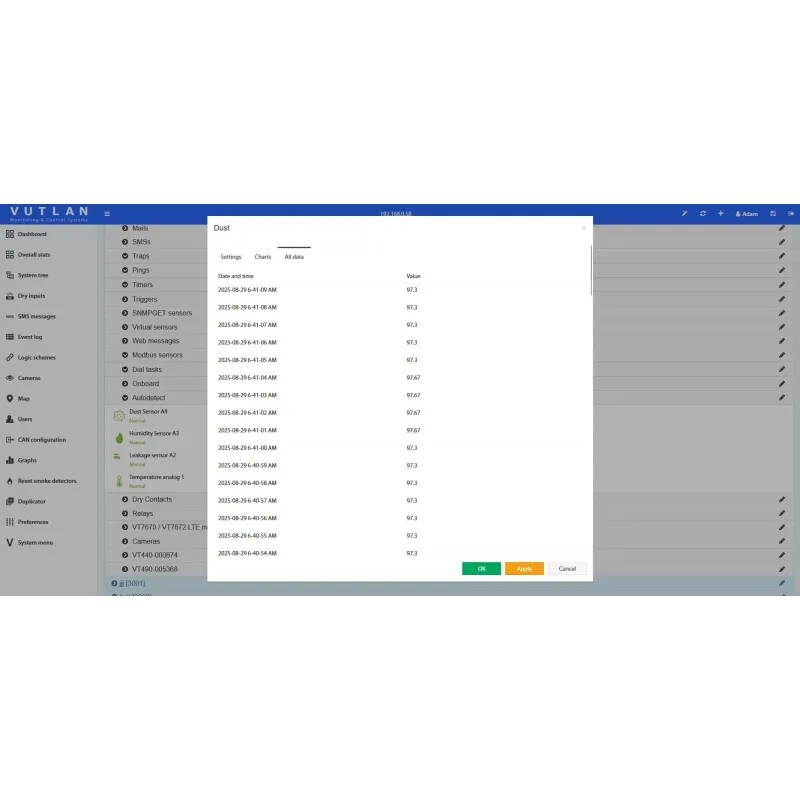

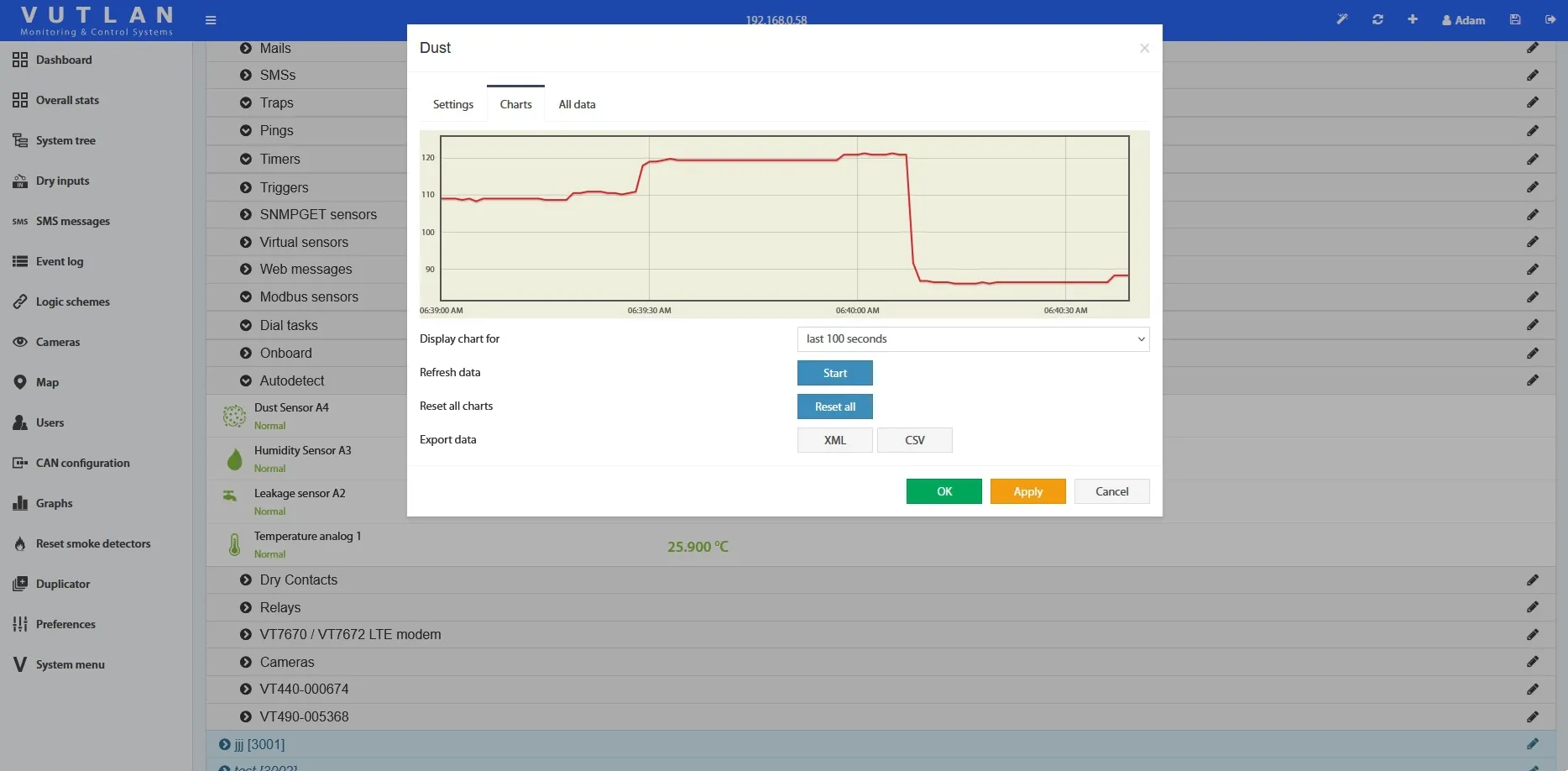

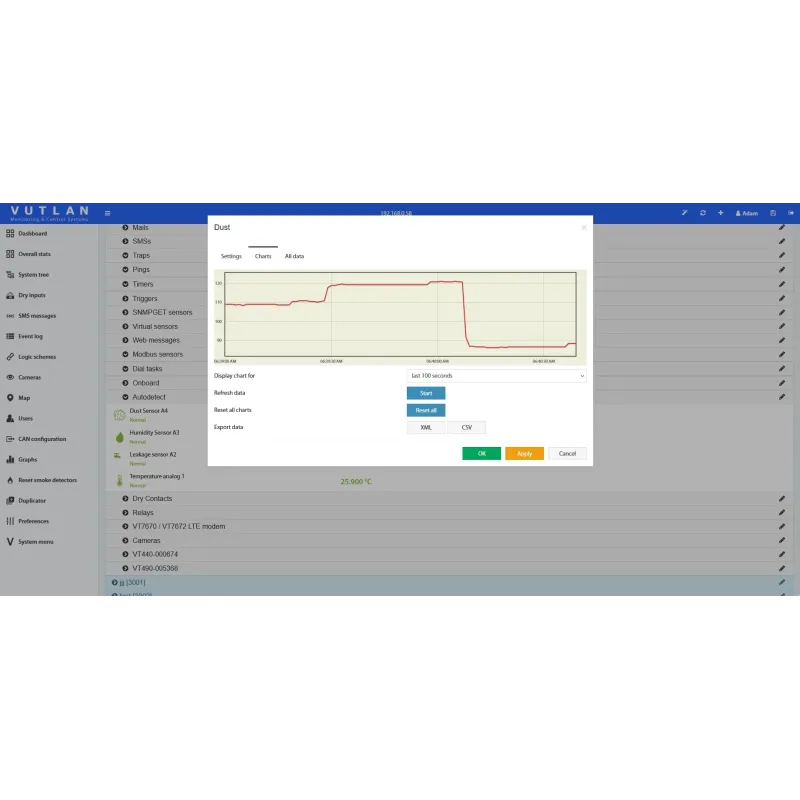

Graphs and Logging
Vutlan supports SD card logging up to 500 Gb. You can log a whole systems loaded with sensors for 3 years.
Previous
Next

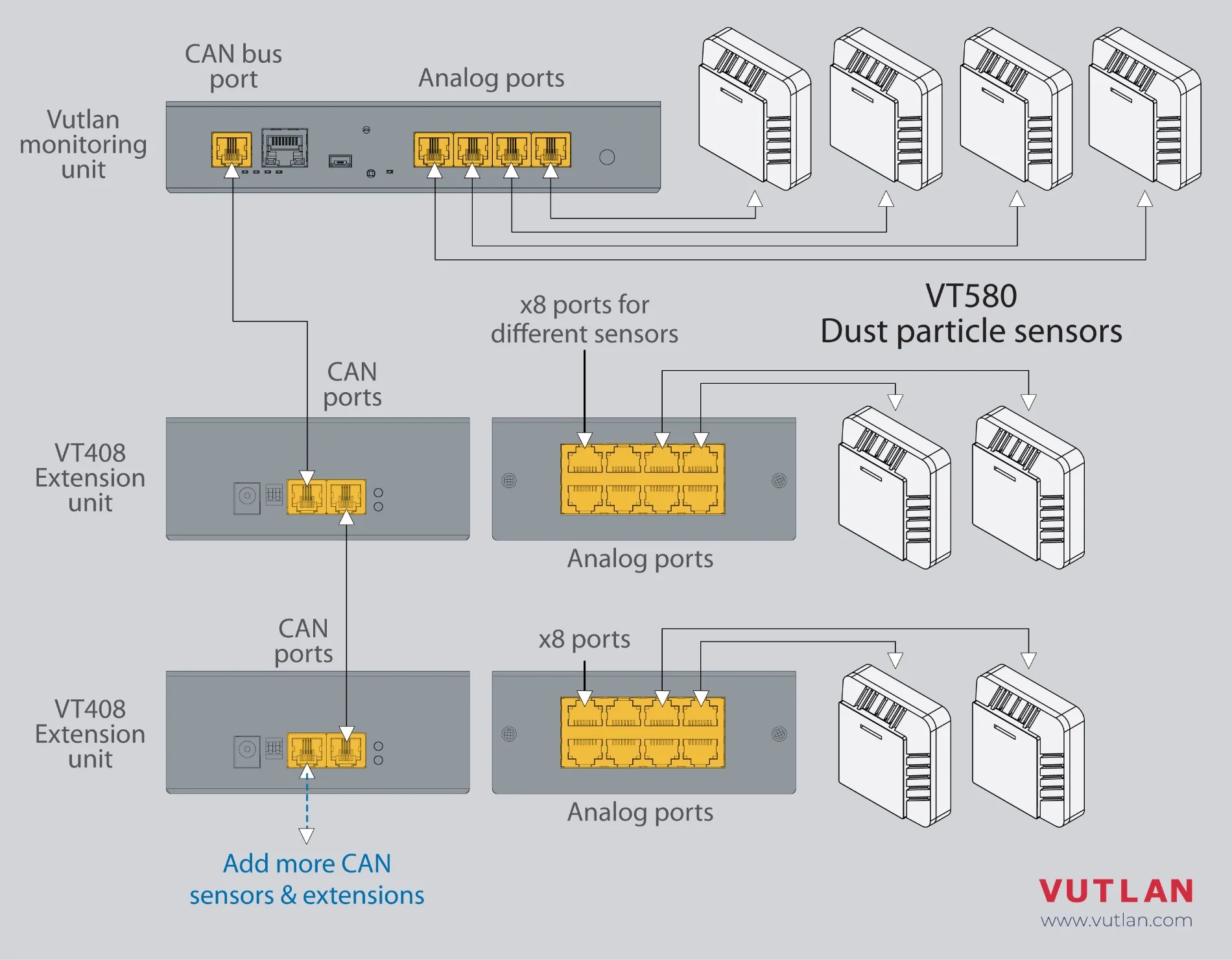

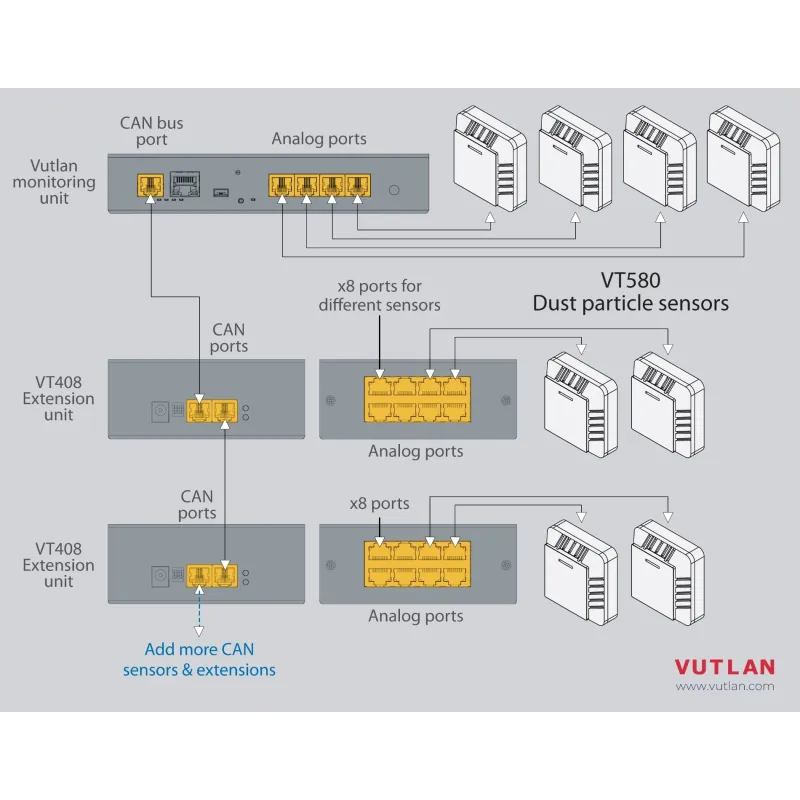

Add more analog sensors using VT408 or VT408DIN
'VT408 Sensor extension unit' and 'VT408DIN Sensor extension unit" increase the number of analog sensors connected to any Vutlan monitoring unit. Each VT408 unit adds 8 analog sensors. Multiple VT408 units can be connected using a daisy CAN chain. Sensors connected to the extension unit appear in the system automatically.
Systems with analog ports:
To read data from the analog sensors, you need Vutlan monitoring and control system. All the following monitoring & control systems have a different amount of analog ports.
