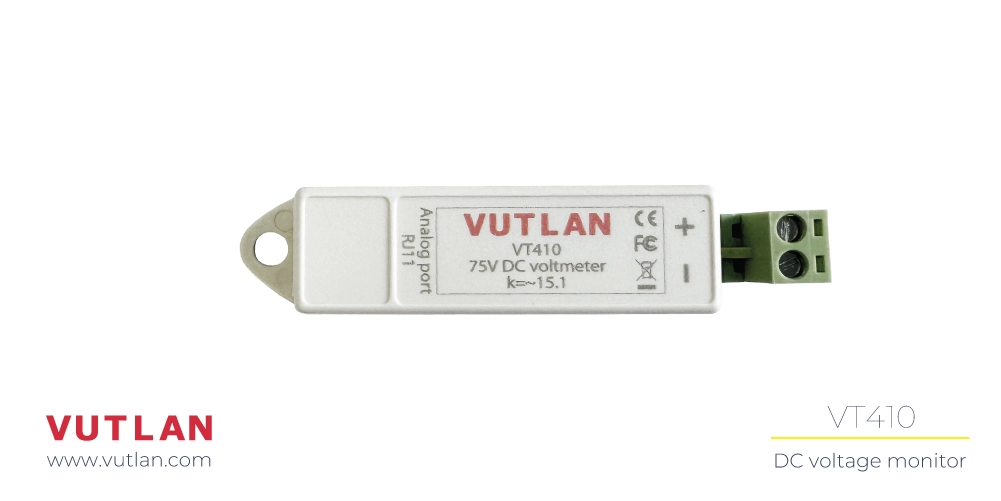

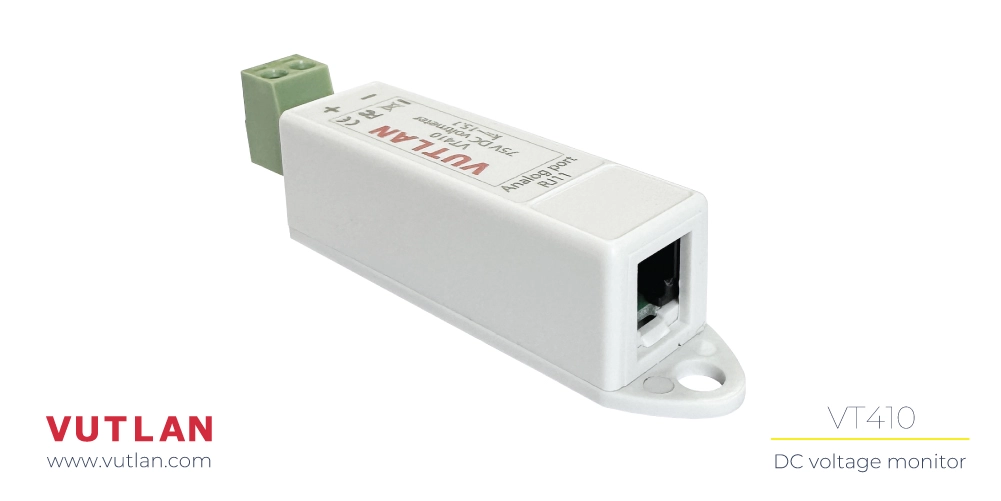

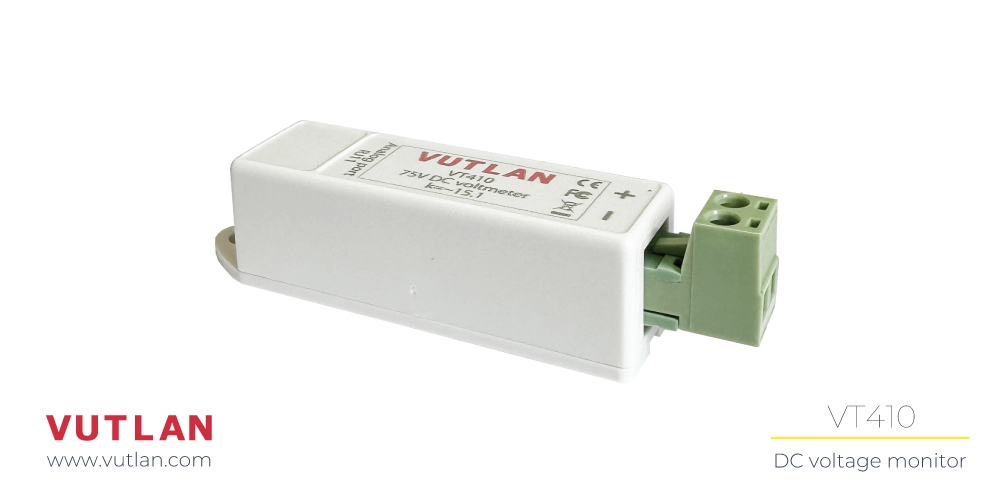

VT410 DC Voltage Monitor
Previous
Next
Description
The DC monitor is a device designed for the measurement of DC voltage, converting the data into a format compatible with an Vutlan monitoring system. It allows for real-time remote monitoring of DC voltage levels in various applications, such as data centers, industrial automation, and renewable energy systems.
VT410 is an analog sensor plug-and-play sensor and can be connected to any analog port of Vutlan monitoring system.
The maximum amount of VT410 sensors connected to a Vutlan monitoring system and the maximum cable length can be extended using the "VT408 / Sensor extension unit".
Models
VT410 4V:
measured voltage 0-4V
VT410 5V:
measured voltage 0-5V
VT410 10V:
measured voltage 0-10V
VT410 15V:
measured voltage 0-15V
VT410 75V:
measured voltage 0-75V
Specifications
Type of sensor:
Analog sensor
Measures:
DC voltage
Measured voltage:
0-60 V DC
Accuracy:
1%.
Daisy chain:
No
Cable length:
RJS3 shielded cable 2m (6P6C RJ12) included.
Power consumption:
100 mW
Operating temperature:
Optimal temperature range: -10° C to +80° C
Operating humidity:
0 to 95 % (Non-Condensing)

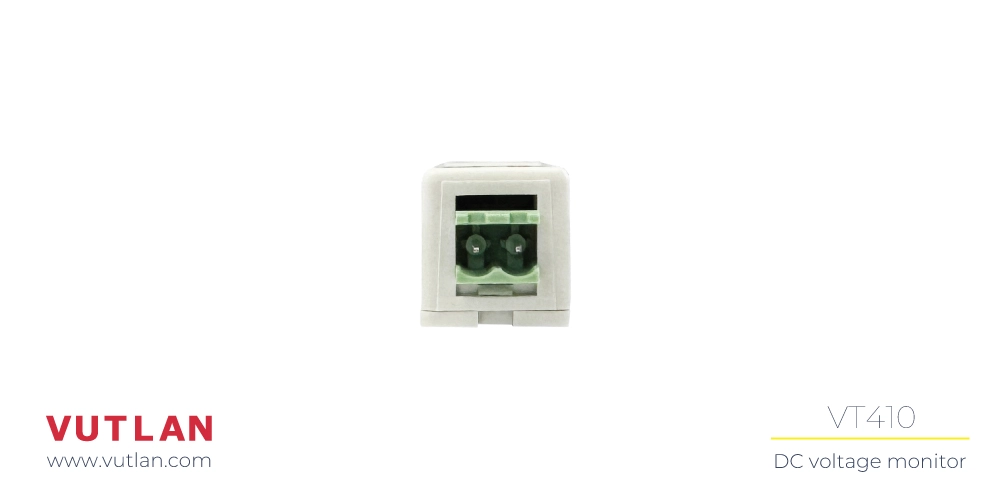

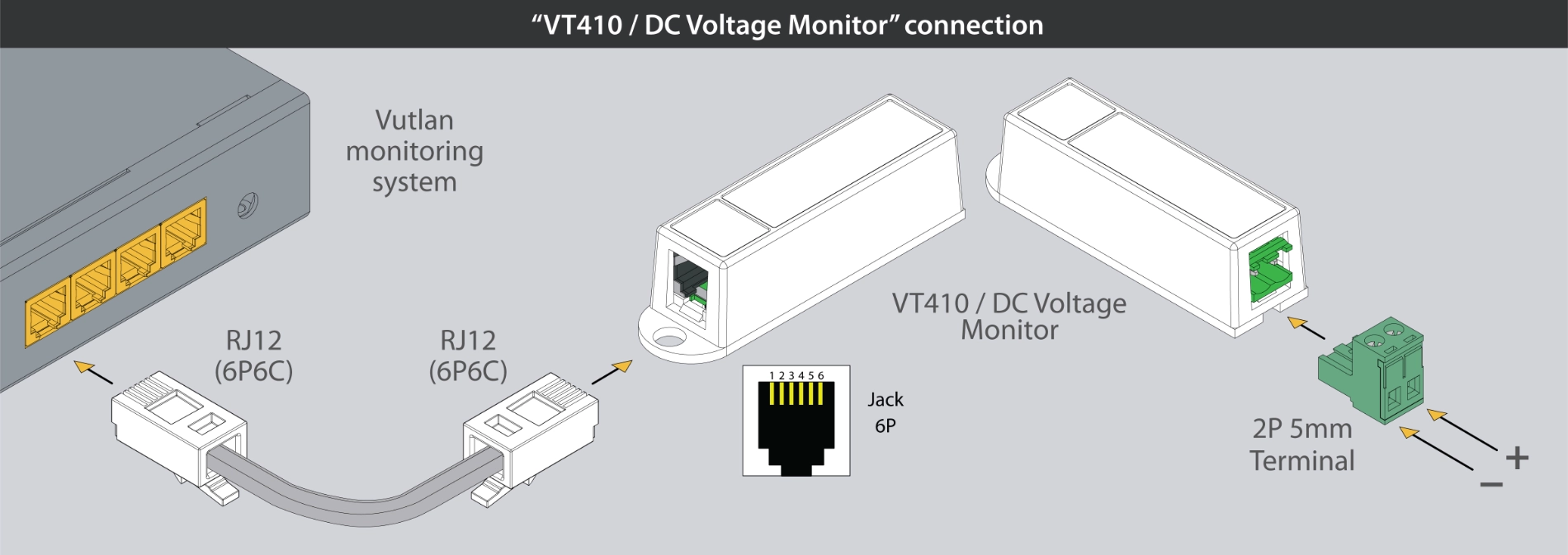

Inputs:
2-pin terminal, pitch 5mm
Outputs:
4 pin 6P6C RJ12
Mounting possibilities:
Desktop, Wall mount
Max. distance from the unit:
50 m
K coefficient:
=~14.8, used inside the interface
Isolation:
1 kV
Manufactured in:
Slovak Republic, E.U.
HS Code:
9030 33 100
EAN:
8588009886235
Use cases
The VT594 Water Leak Sensor is used for:

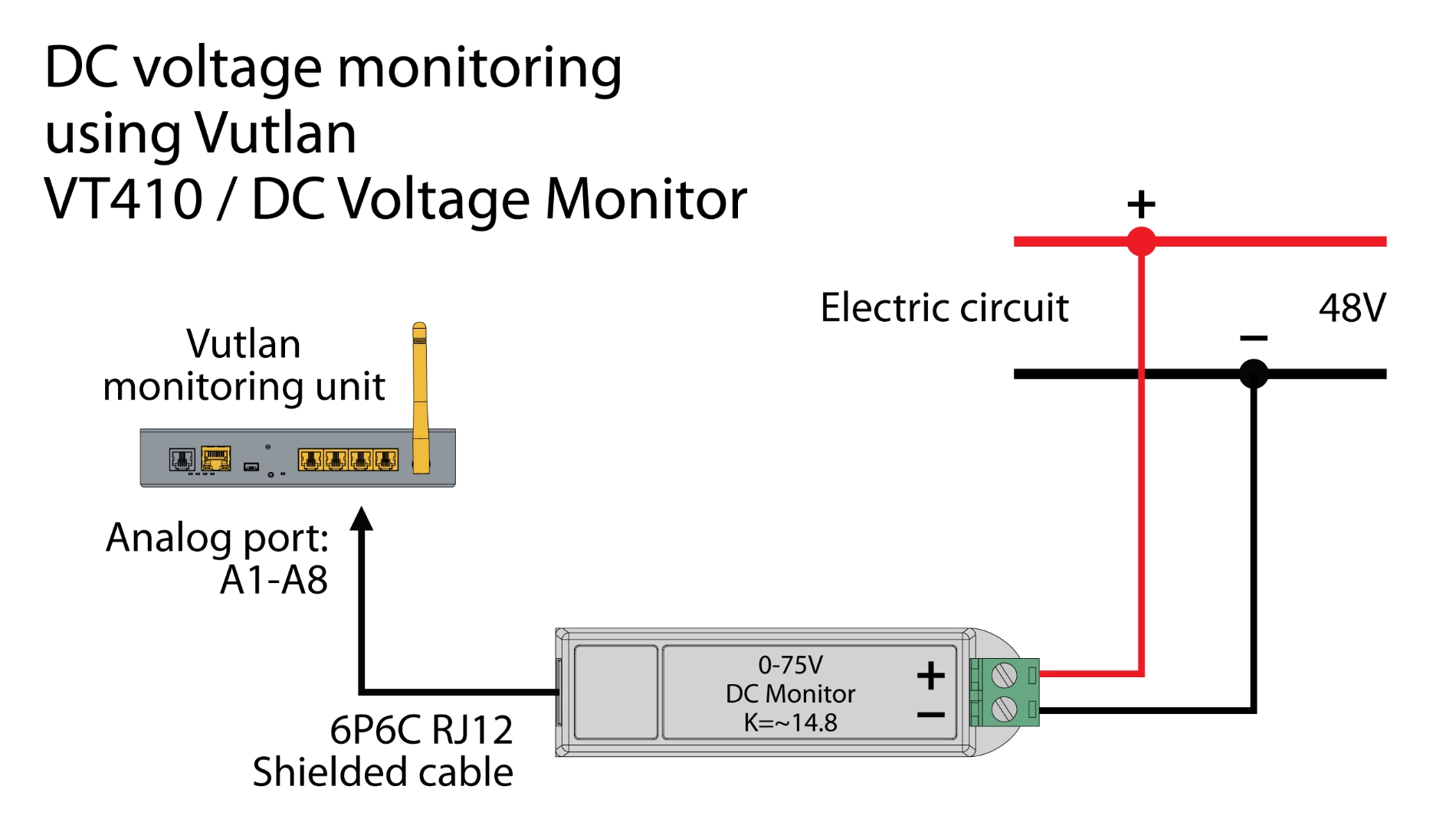

- Voltage Monitoring: In data centers, the VT410 can continuously monitor the DC voltage supplied to critical equipment like servers and switches. This ensures that equipment operates within safe voltage levels, preventing downtime caused by power issues.
- Industrial Automation Process Control: In manufacturing environments, the VT410 can measure the DC voltage used by various automated systems and machinery. This data can help optimize processes by ensuring machines receive adequate power for efficient operation.
- Equipment Health Monitoring: Tracking voltage levels can aid in identifying equipment malfunctions early, allowing for timely maintenance and reducing the risk of costly breakdowns.
- Solar Panel Monitoring: The VT410 can monitor the output voltage from solar panels, ensuring that they operate efficiently and produce optimal power levels. This is essential for maximizing energy production.

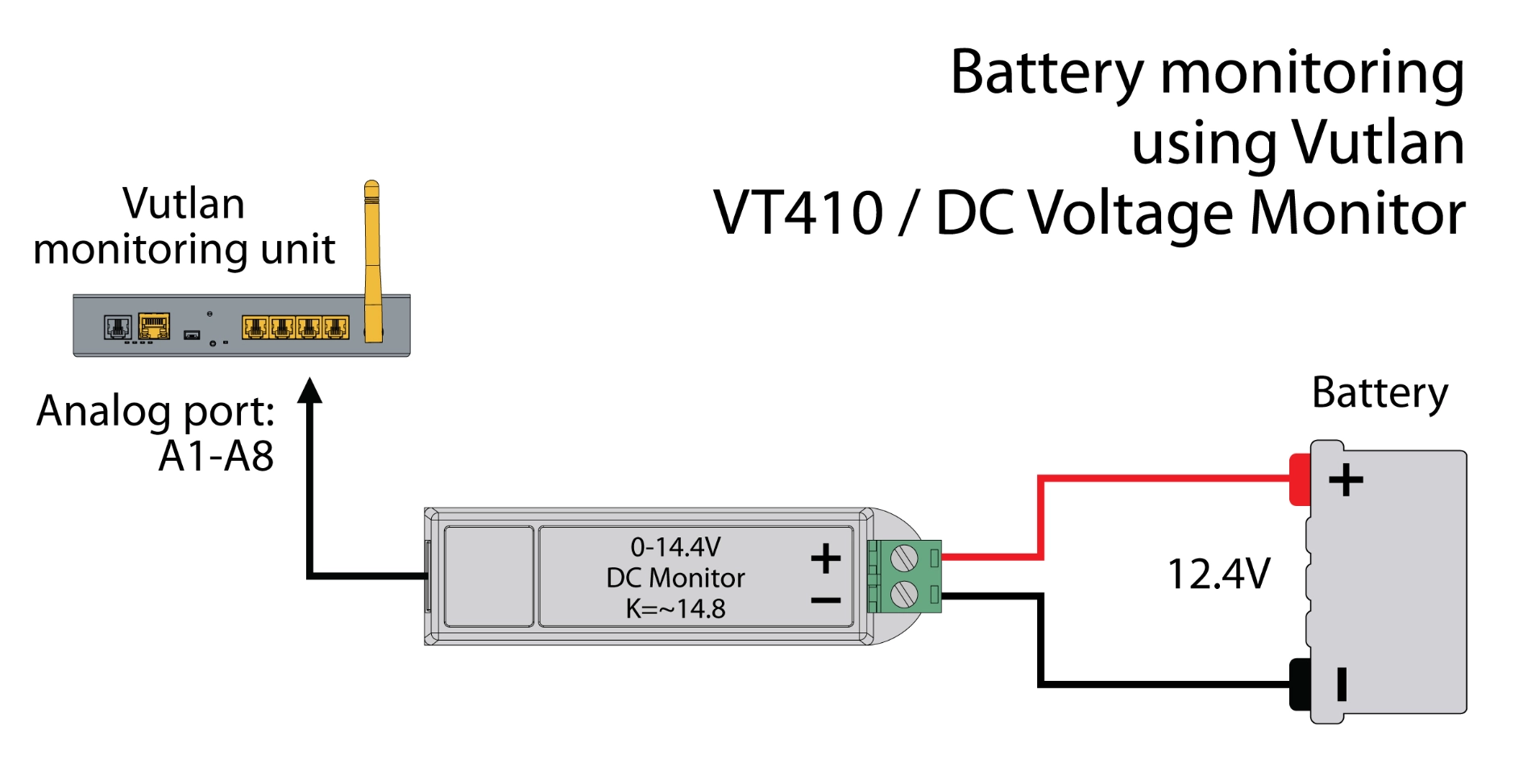

- Battery Systems: In energy storage systems, the VT410 helps monitor the DC voltage of batteries, ensuring they remain within safe charging and discharging levels, which is critical for battery health and longevity.
- Power Supply Monitoring: In telecommunications infrastructure, the VT410 can be used to monitor the DC voltage supplied to critical equipment such as routers and switches. This ensures reliable operation and helps prevent outages due to power failures.
- Backup Systems: Monitoring the voltage of backup power supplies, such as UPS systems, can help ensure that these systems are functioning correctly and can take over in case of a primary power failure.
- Charging Station Monitoring: The VT410 can be integrated into electric vehicle charging stations to monitor the DC voltage provided to EVs during charging, ensuring efficient and safe charging processes.
- Fault Detection: Continuous voltage monitoring can help detect faults in the charging process, preventing damage to vehicles and infrastructure.
- Energy Management: The VT410 can be part of a BMS to monitor DC voltage levels across various building systems (e.g., lighting, HVAC, security systems), helping optimize energy usage and improve efficiency.
- Load Shedding: In peak load scenarios, monitoring DC voltage can help in load management strategies to prevent overloading circuits and ensuring system stability.
Previous
Next
Sensor features
Logic schemes
Logic schemes are used to specify automatic actions to events that occur in the system.
Dashboard view
The system allows to customize the dashboard individually for each user and displays the most important information on it in a visual form.
Add widgets with multi graphs, gauge meters or knobs.
Thresholds
Each sensor has Low Alarm, Low Warning, Normal, High Warning, and High alarm threshold states for logic control & sending of notification.
Graphs and Logging
Vutlan supports SD card logging up to 500 Gb. You can log a whole systems loaded with sensors for 3 years.
Previous
Next
Add more analog sensors using VT408 or VT408DIN
'VT408 Sensor extension unit' and 'VT408DIN Sensor extension unit" increase the number of analog sensors connected to any Vutlan monitoring unit. Each VT408 unit adds 8 analog sensors. Multiple VT408 units can be connected using a daisy CAN chain. Sensors connected to the extension unit appear in the system automatically.
Systems with analog ports:
To read data from the analog sensors, you need Vutlan monitoring and control system. All the following monitoring & control systems have a different amount of analog ports.
