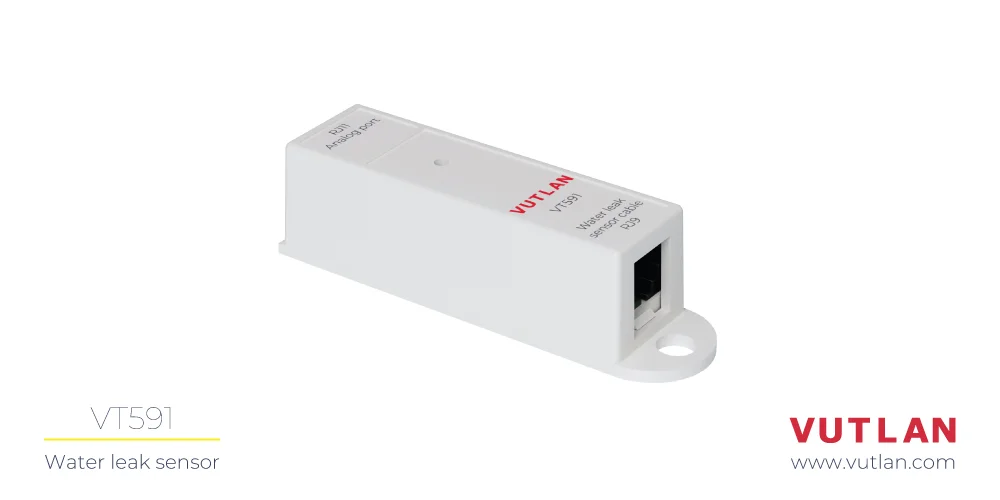

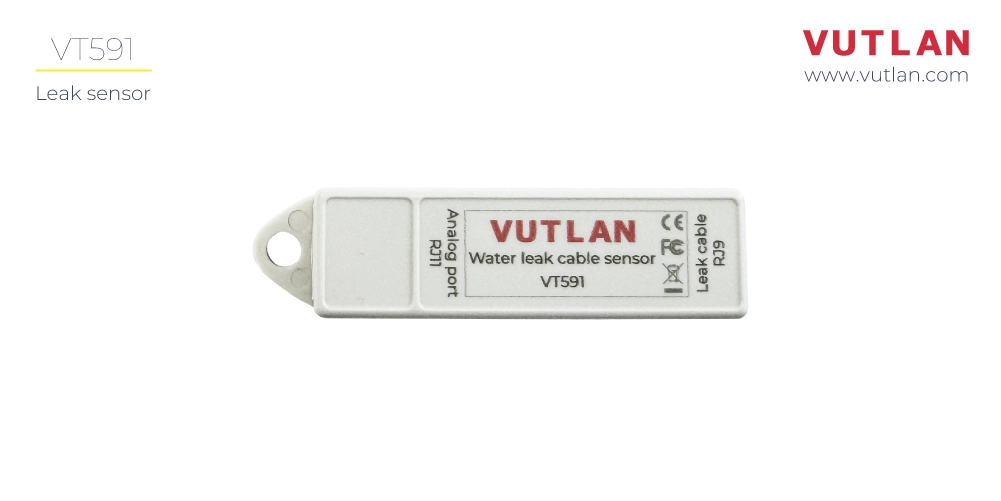

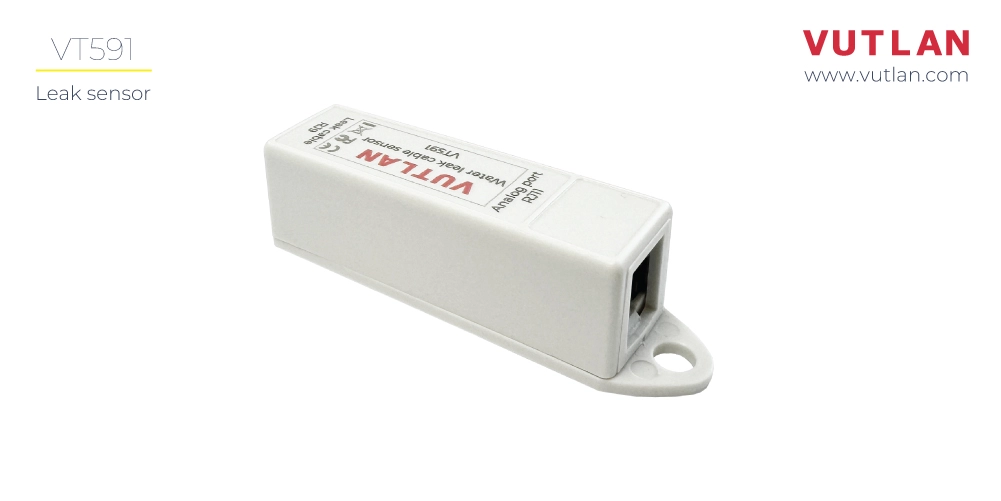

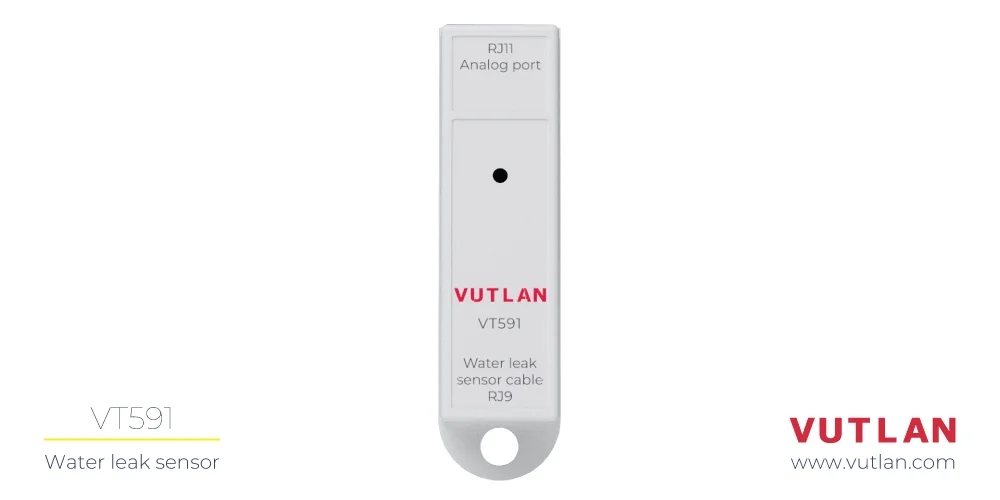

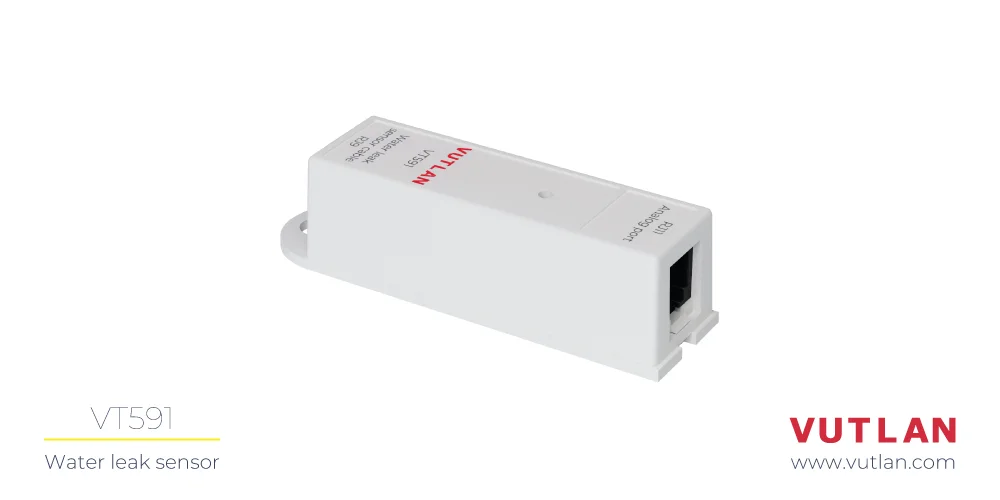

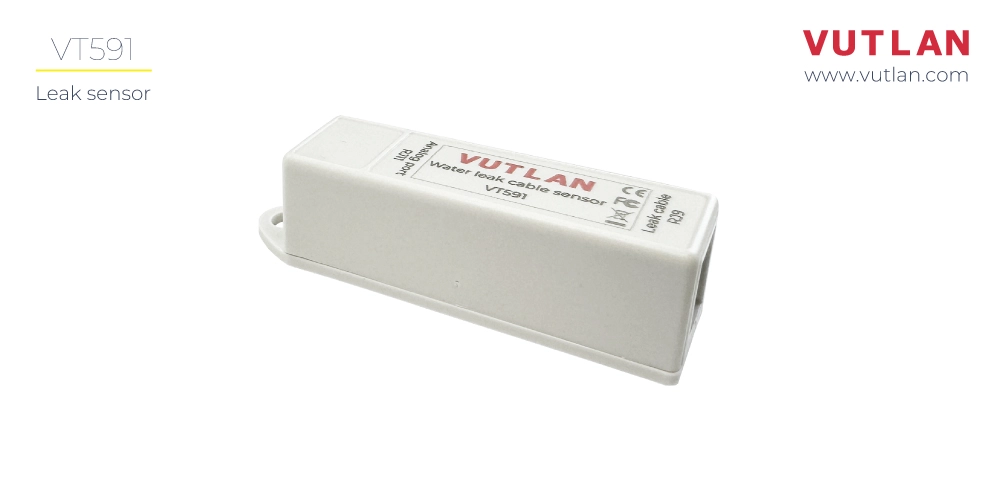

VT591 / Water Leak Sensor
Previous
Next
Description

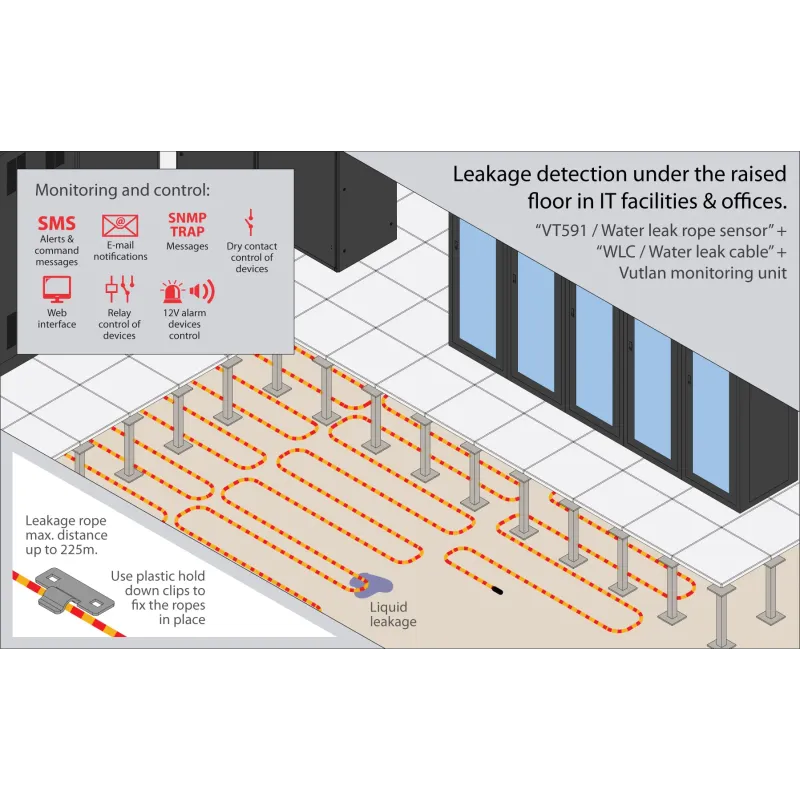

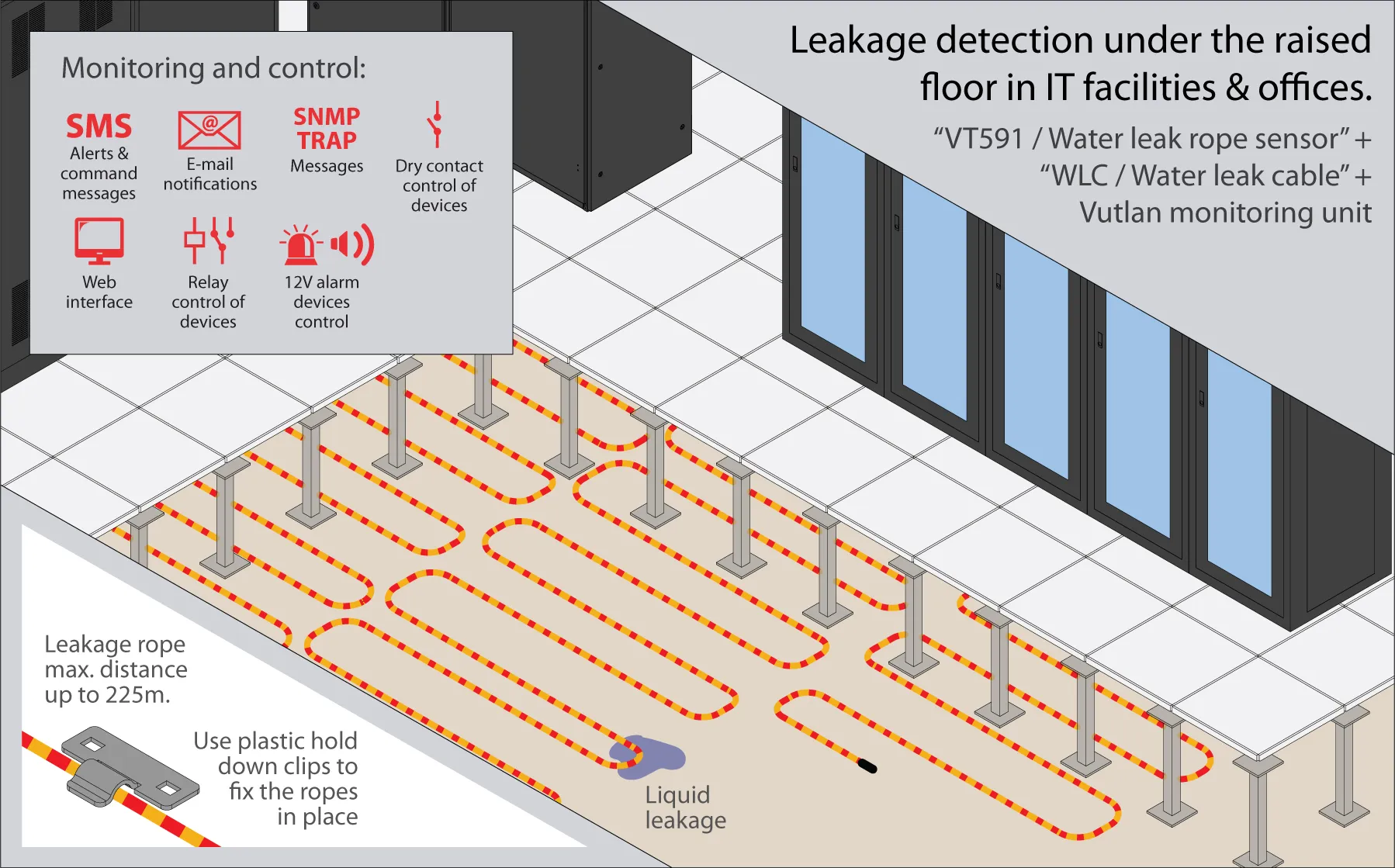

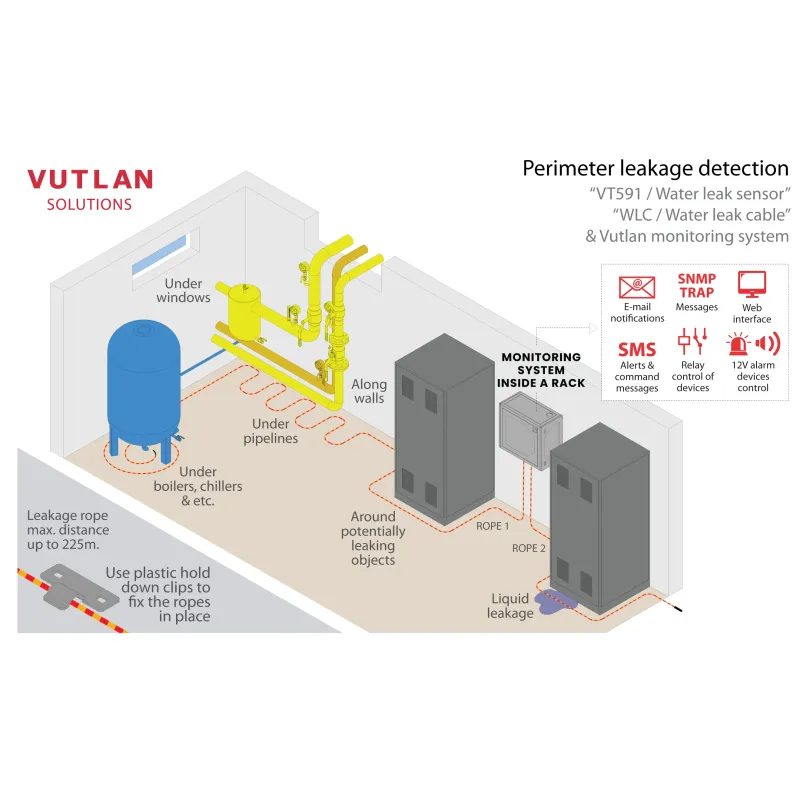

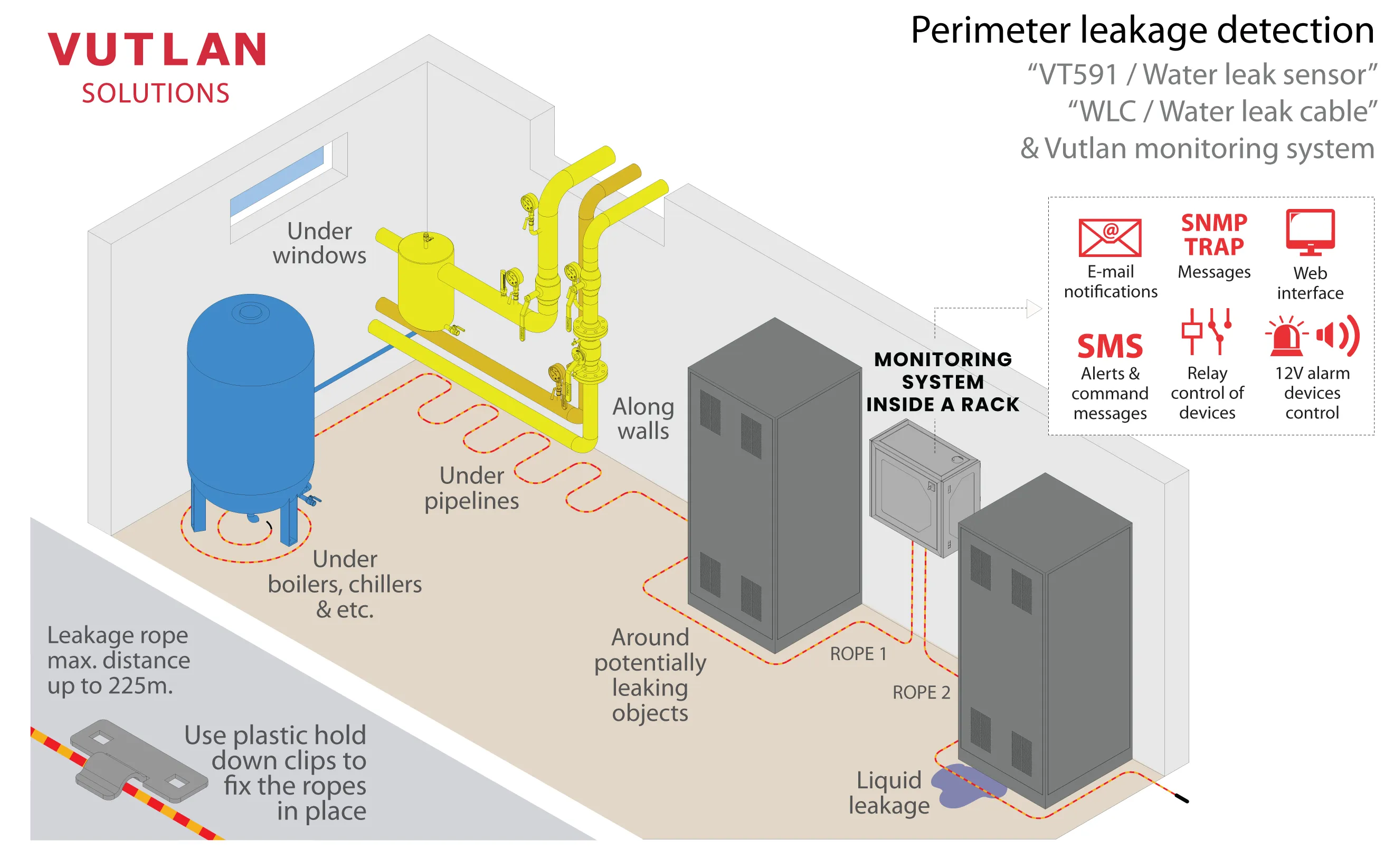

The sensor detects water by the drop in resistance of the WLC water leak cable. The sensor must be used together with the WLC leak cable. WLC leak cable is ordered separately, different lengths can be ordered.
VT591 can be connected to any analog port (A1...A8) of the Vutlan monitoring unit.
The maximum amount of VT591 sensors connected to a single monitoring unit and the maximum length from the monitoring or extension unit can be extended using the VT408 / Sensor extension unit.
Required Components
WLC / Leak detection cable
"WLC / Water leak cable" is ordered separately! Different lengths of the cable are available for order. Detectable liquids: clean, polluted & distilled water; acids; alkalis; alcohols, and other electrically conductive liquid. Product page...
Downloads
Specifications
Type of sensor:
Analog sensor
Measures:
Detects water leakage by the drop in resistance in WLC water leak cable
Daisy chain:
No
Dimensions:
60×18×18 mm
Inputs:
2 wire (WLC cable)
Outputs:
RJ11/RJ12 (6p4c)
Operating temperature:
Optimal range: -10° C to +80° C
Operating humidity:
5 to 95 % (Non-Condensing)
Mounting possibilities:
Mounting bracket included.
Power consumption:
60 mW
Max. distance from the unit:
100 m from the monitoring or extension unit
Response time:
15 sec.,
Recovery time:
Depends on how fast the sensor dries out
Manufactured in:
Slovak Republic, E.U.
HS Code:
9025 80 400
EAN:
8588009886211
Previous
Next
Sensor features
Logic schemes
Logic schemes are used to specify automatic actions to events that occur in the system.
Dashboard view
The system allows to customize the dashboard individually for each user and displays the most important information on it in a visual form.
Add widgets with multi graphs, gauge meters or knobs.
Thresholds
Each sensor has Low Alarm, Low Warning, Normal, High Warning, and High alarm threshold states for logic control & sending of notification.
Graphs and Logging
Vutlan supports SD card logging up to 500 Gb. You can log a whole systems loaded with sensors for 3 years.
Previous
Next
Add more analog sensors using VT408 or VT408DIN
'VT408 Sensor extension unit' and 'VT408DIN Sensor extension unit" increase the number of analog sensors connected to any Vutlan monitoring unit. Each VT408 unit adds 8 analog sensors. Multiple VT408 units can be connected using a daisy CAN chain. Sensors connected to the extension unit appear in the system automatically.
Systems with analog ports:
To read data from the analog sensors, you need Vutlan monitoring and control system. All the following monitoring & control systems have a different amount of analog ports.
