VT570 / Motion sensor
Previous
Next
Description

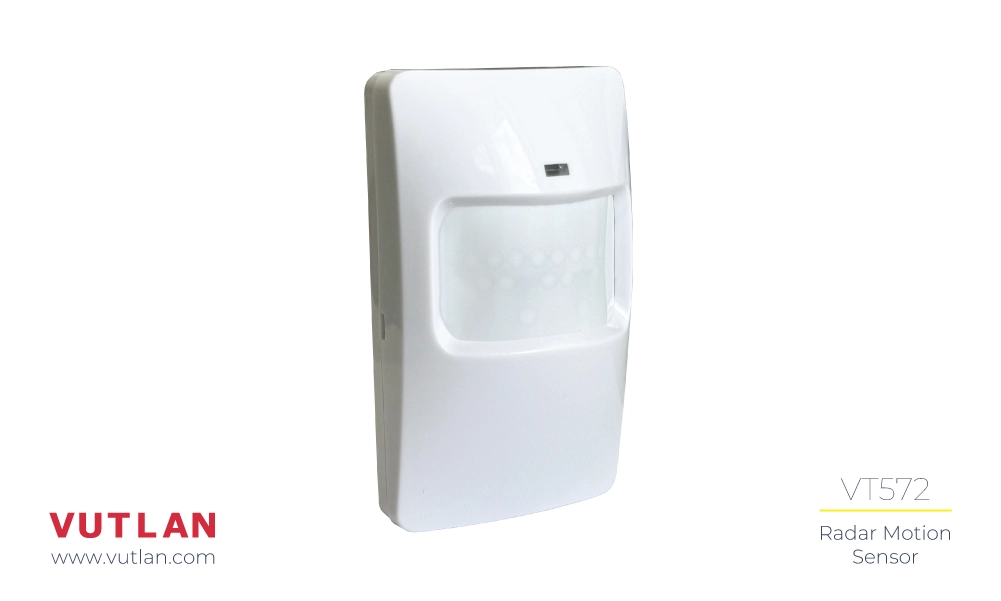

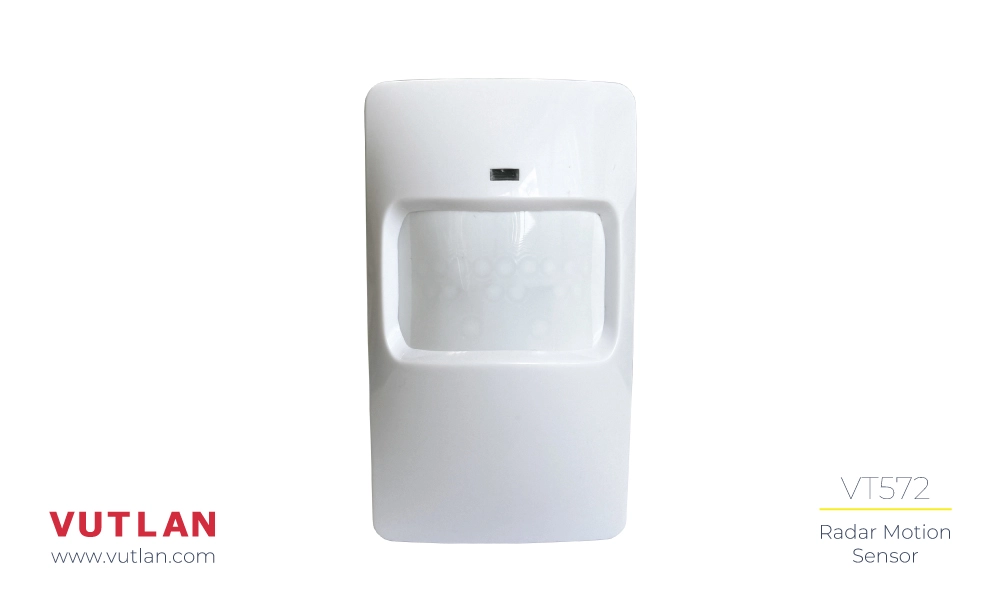

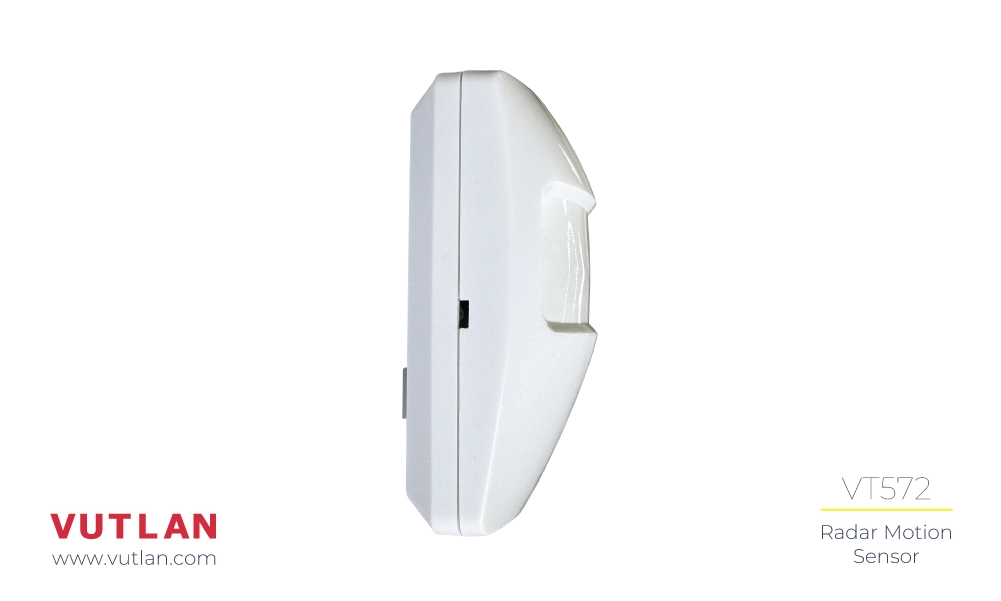

A high-performance sensor/detector using microwave radar as a control signal source to detect objects or human movement. This product is an indoor energy-saving high-sensitivity detector.
The scanned signal can penetrate plastic, glass, ceiling, wooden doors, and thin walls.

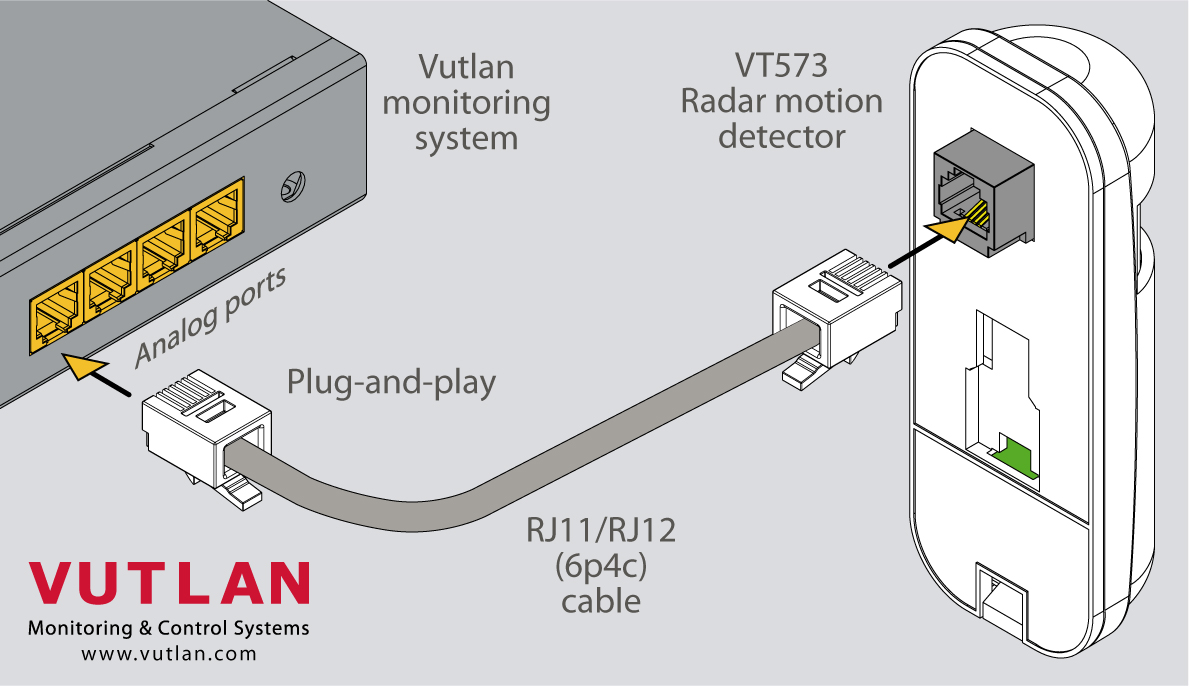

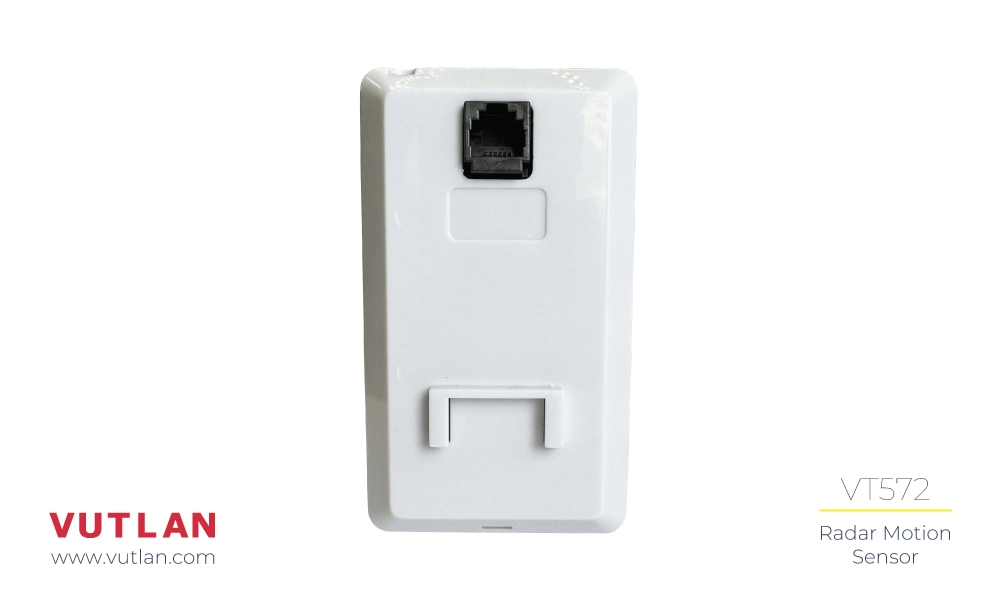

Can be connected to any analog port (A1...A8) of the Vutlan monitoring unit. The sensor is plug-and-play and can be configured for event triggering using logic schemes.

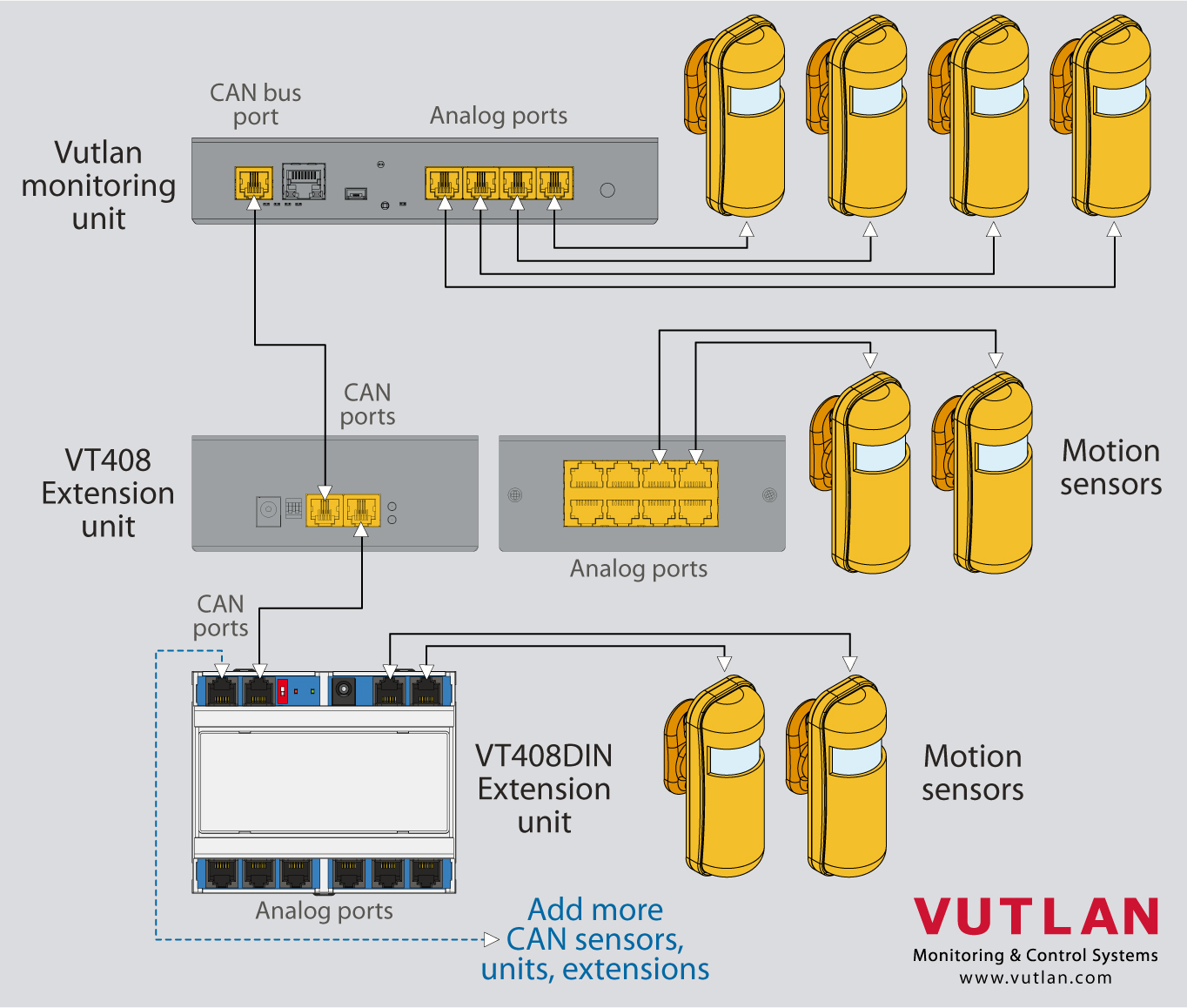

The maximum amount of sensors connected to the Vutlan monitoring unit and maximum length can be extended using the "VT408 / Sensor extension unit" or “VT408DIN / Extension unit”.
Downloads
Specifications
Type of sensor:
Analog sensor
Usage:
Motion, movement, position, proximity detector/sensor
Technology:
Doppler Principle (transmit and receive signals) using microwave radar with minituarized planar antennas
Daisy chain:
No
HS Code:
8531 80 950
GTIN:
Manufactured in:
Slovak Republic, E.U.
Certification standards:
FCC/CE/SRRC/RoHS
LEDs:
Red when movement detected. Green when no movement.
RF frequency range:
5.725GHz-5.875GHz
RF transmit power:
-4dBm
Antenna:
Built-in flat antennas
Operating temperature:
Sensor PCB: -20 ℃ to +85 ℃
ABS enclosure: -20 ℃ to +80 °C
PVC cable: -15 ℃ to +80 °C
Storage temperature:
-40° С to +100° C
Operating humidity:
0 to 85 % (Non-Condensing)
Storage humidity:
0 to 95 % (Non-Condensing)
Power consumption:
100 mW
Installation height:
3 meters is recommended
Detection angle:
120° degrees
Sensing distance:
maximum is 12 meters
Inducting distance:
Radius About 5-6m
Max. Induction Radius:
The radius is 6 meters when hanging height is 3 meters
Cable length:
RJ11 / RJ12 6P4C 2m cable included
Mounting possibilities:
Wall or ceiling mount
Outputs:
RJ-11 / 6P4C
Max. distance from the unit:
100 m from monitoring or extension unit
Previous
Next
Sensor features
Logic schemes
Logic schemes are used to specify automatic actions to events that occur in the system.
Dashboard view
The system allows to customize the dashboard individually for each user and displays the most important information on it in a visual form.
Add widgets with multi graphs, gauge meters or knobs.
Thresholds
Each sensor has Low Alarm, Low Warning, Normal, High Warning, and High alarm threshold states for logic control & sending of notification.
Graphs and Logging
Vutlan supports SD card logging up to 500 Gb. You can log a whole systems loaded with sensors for 3 years.
Previous
Next
Add more analog sensors using VT408 or VT408DIN
'VT408 Sensor extension unit' and 'VT408DIN Sensor extension unit" increase the number of analog sensors connected to any Vutlan monitoring unit. Each VT408 unit adds 8 analog sensors. Multiple VT408 units can be connected using a daisy CAN chain. Sensors connected to the extension unit appear in the system automatically.
Systems with analog ports:
To read data from the analog sensors, you need Vutlan monitoring and control system. All the following monitoring & control systems have a different amount of analog ports.
