VT530 / Access sensor
Previous
Next
Description

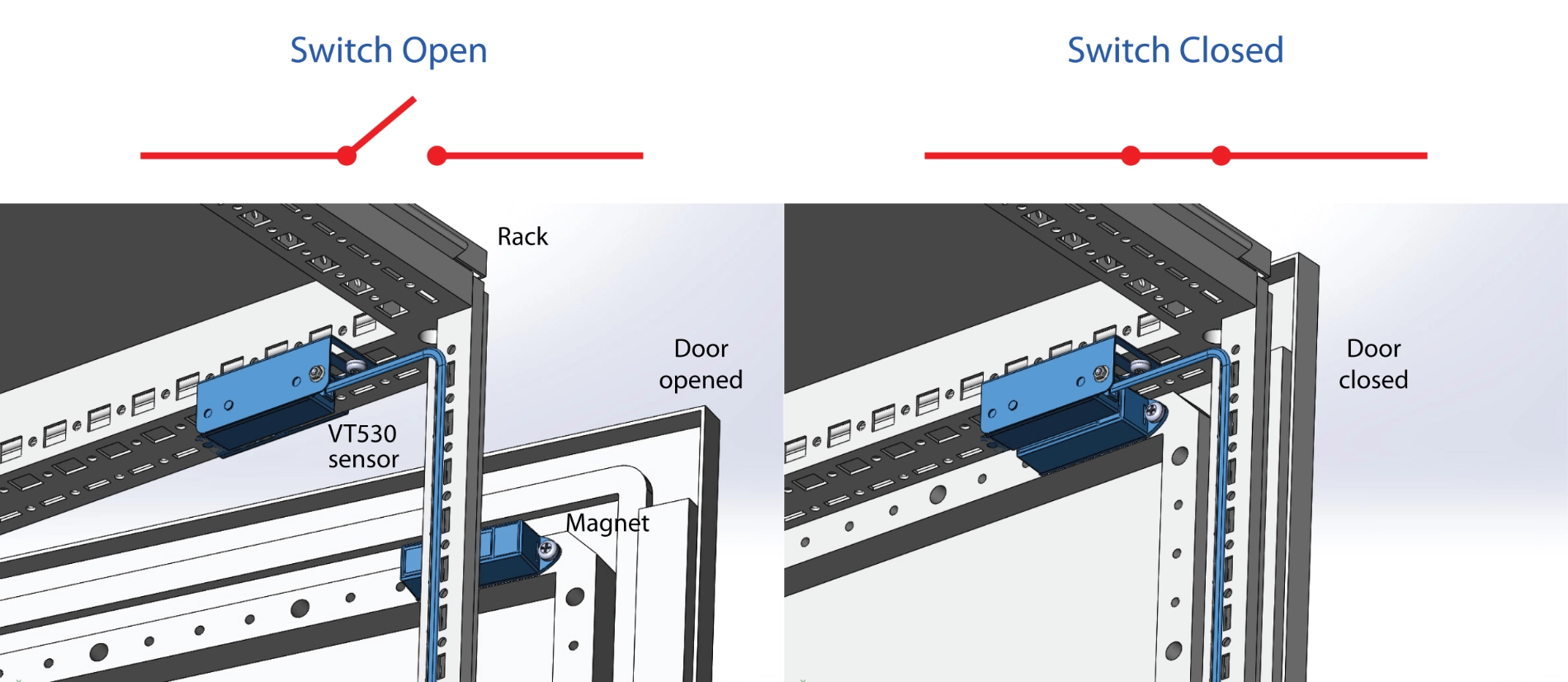

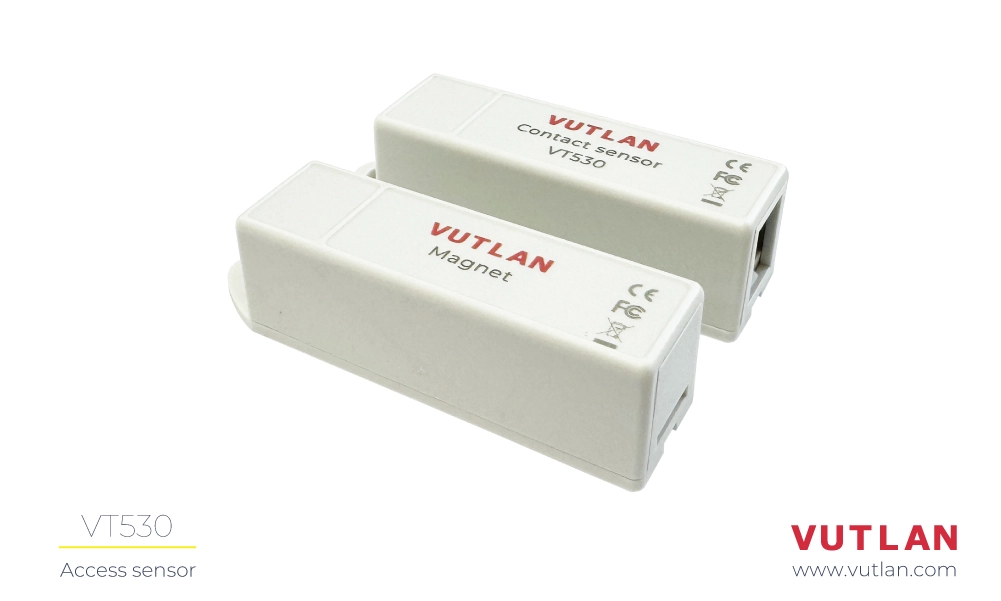

The sensor is needed for access control. For installation on doors, windows, etc. VT530 controls the status of the door, window: opened, closed. The sensor consists of two parts: a magnet and a sensor.
Can be connected to any analog port (A1...A8) of the Vutlan monitoring unit.
The maximum amount of sensors and maximum length can be extended using the VT408 / Sensor extension unit.
Downloads
Specifications
Type of sensor:
Analog sensor
Measures:
Contact closed/open using a magnet
Daisy chain:

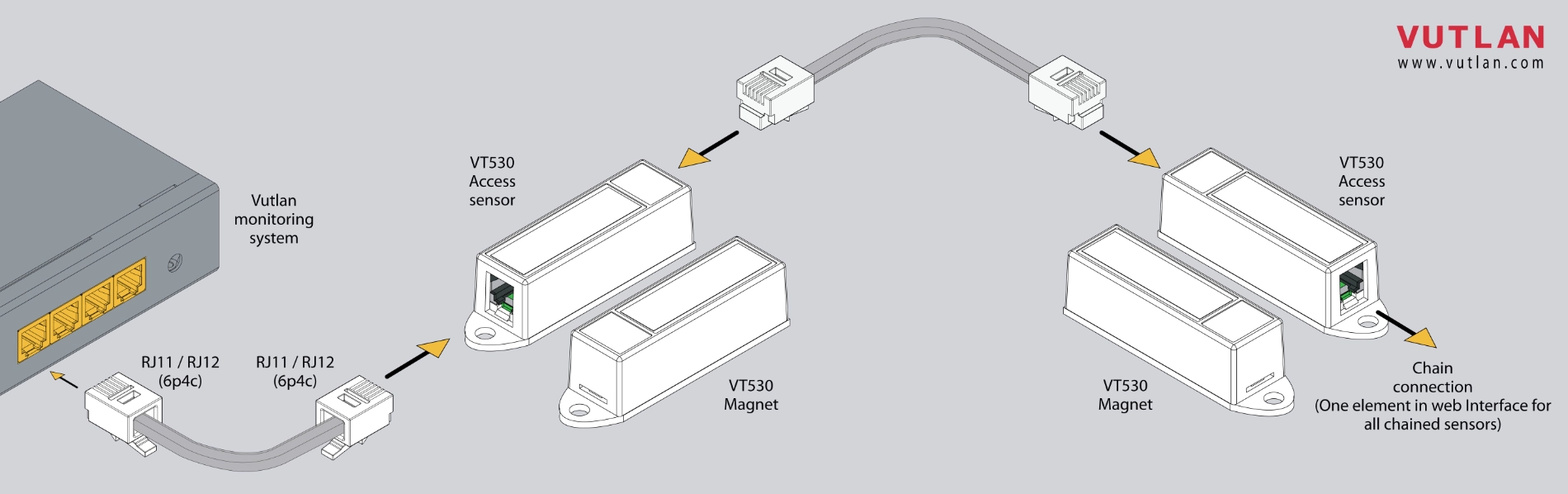

Yes. All sensors in a chain show as 1 element in web interface. Triggering any sensor triggers the same element.
Cable length:
RJ11 / RJ12 (6p4c), Telephone cable 2m included
Power consumption:
60 mW
Operating temperature:
Optimal temperature range: -10° C to +80° C
Operating humidity:
0 to 95 % (Non-Condensing)
Inputs:
RJ11 / RJ12 (6p4c)
Outputs:
RJ11 / RJ12 (6p4c)
Mounting possibilities:

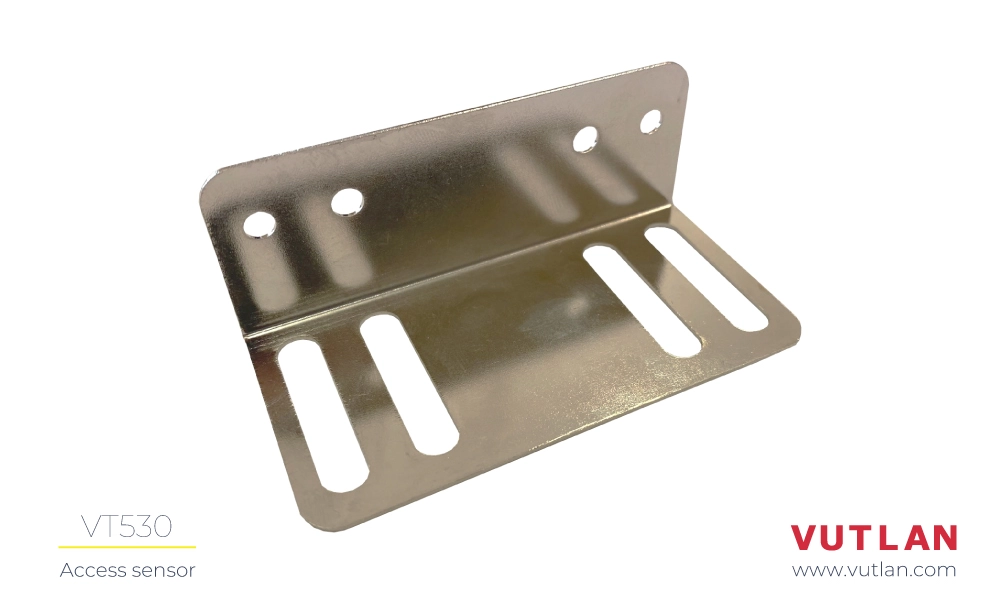

Mounting bracket, bolts, and stickers included for installation inside IT racks and cabinets
Max. distance from the unit:
150 m
Manufactured in:
Slovak Republic, E.U.
HS Code:
8531 10 300
GTIN:
8588009886167
Previous
Next
Sensor features
Logic schemes
Logic schemes are used to specify automatic actions to events that occur in the system.
Dashboard view
The system allows to customize the dashboard individually for each user and displays the most important information on it in a visual form.
Add widgets with multi graphs, gauge meters or knobs.
Thresholds
Each sensor has Low Alarm, Low Warning, Normal, High Warning, and High alarm threshold states for logic control & sending of notification.
Graphs and Logging
Vutlan supports SD card logging up to 500 Gb. You can log a whole systems loaded with sensors for 3 years.
Previous
Next
Add more analog sensors using VT408 or VT408DIN
'VT408 Sensor extension unit' and 'VT408DIN Sensor extension unit" increase the number of analog sensors connected to any Vutlan monitoring unit. Each VT408 unit adds 8 analog sensors. Multiple VT408 units can be connected using a daisy CAN chain. Sensors connected to the extension unit appear in the system automatically.
Systems with analog ports:
To read data from the analog sensors, you need Vutlan monitoring and control system. All the following monitoring & control systems have a different amount of analog ports.
