Scalability & connectivity of Vutlan monitoring systems
Keeping track of hundreds of equipment may be thousands, or tens of thousands proves to be a difficult task. Keeping all these machines secure, compliant, and well-managed requires a centralized, easily expandable remote management system.
.png)
.png)
Vutlan Web Interface
Our web interface is flexible enough to empower you with all the tools you need to monitor and control your mission-critical facility. It is embedded in each remote monitoring unit and can be accessed with an IP address inside your browser.
- Multi language
- Free, included with every monitoring system
- Very easy to use
- Charts & Multi charts
- Multiple panels: Dashboard, Statistics, System tree, Dry contacts, Event log, Logic schemes, Cameras, Map, Outlets, Users, CAN configuration, Graphs, Preferences, System tools
Centralized Infrastructure Management Software using SNMP protocol
No matter how complex your IT infrastructure is, you can manage all assets using DCIM SNMP software, infrastructure management software.
Vutlan supports SNMP v1, SNMP v2c, SNMP v3. Hence the data from Vutlan monitoring units can be monitored from any SNMP managemnt software package.
- Monitor your entire IT infrastructure
- Spot problems before they occur
- Know immediately when problems arise
- Share availability data with stakeholders
- Detect security breaches
- Plan and budget for IT upgrades
- Reduce downtime and business losses
Duplicator software
Duplicator is a program for the management of several devices. The duplicator program allows you to upload the configuration and firmware for many devices at once. To use the program user must have administrator permissions. Look at the main menu.
- Licenses can be purchased from Vutlan partners
- Manage several devices
- Update multiple units
- Configure multiple units
Network reservation
LTE modem (extension) can be used for Ethernet access reservation and alert notification reservation. Can be used to access unit's Web Interface, monitor over SNMP, and other communications.
VT740 LTE slot modem allows to receive and send SMS messages (2G, 3G). Provides Ethernet access over LTE (4G). All Vutlan systems except VT225t can connect LTE modem.
All Vutlan systems are embedded with a LAN port.
We are now developing a new system with two LAN ports 1 GBit/s.
Software Scalability Options
All current Vutlan monitoring units use the latest Linux operating system.
- Full monitoring and control over IP
- 3-Tier user access
- Time synchronization
- Day / night cycles
- Manual season time setup
- Multi language web interface
- Floor map plan
- System & group trees
- Dashboard & statistics panels
- Dry contacts panel
- Outlets / relays panels
- Event log panel
- Logic scheme panel
- Access panel
- Graph panel
- SNMP v1, SNMP v2c, SNMP v3
- FTP Logs
- Syslog export to XML, CSV
- SD card or USB flash drive
- RSS export
- 5 level thresholds
- Analog sensors
- CAN sensors
- Dry contact sensors
- Onboard sensors
- Plug & Play
- Hysteresis for alert delay if the sensor value jumps to fast
- Linear formula for sensor value adjustments
- Math element for calculating your own formulas
- Graphs, multi-graphs
- 12V DC relay switching
- Outlet switching
- Dry contact outputs
- NC NO COM relay switching
- E-mail alerts
- SNMP Trap alerts
- SMS notifications
- Dial phone task
- Web-to-SMS
- SMS gate
- Logic schemes (IF, THEN, OR, AND events)
- No programming skills needed
- One time or repeated events
- Control equipment
- Send notifications
- Event triggers
- Group events
- SNMP GET element
- HTTP request
- Open API
- By HTTP
- By USB
- Using Duplicator software license
- USB camera (video notifications)
- IP MJPEG cameras (only view)
- PING
- Timer
- Logic scheme
- Trigger
- Modbus RTU
- Modbus TCP
- Math sensor
- Dew point
- Monitoring: modules, sensors, groups, map, USB web-cam & etc.
- CAN bus configuration
- Users DB
- Access keys DB
- Date and time configurations
- Network settings
- HTTP Server settings
- Logging settings
- Radius settings
- SNMP settings
- DynDNS
- Settings of update
- Settings of backup
- No SSH
- SSL cerrtificate
- OpenVPN client & server
- Routing
- NTP server
- Dynamic DNS
- Radius server
.jpg)
-01.jpg)
Connecting extension units
Adds x8 analog ports per unit. Multiple VT408 units can be connected using a CAN bus.

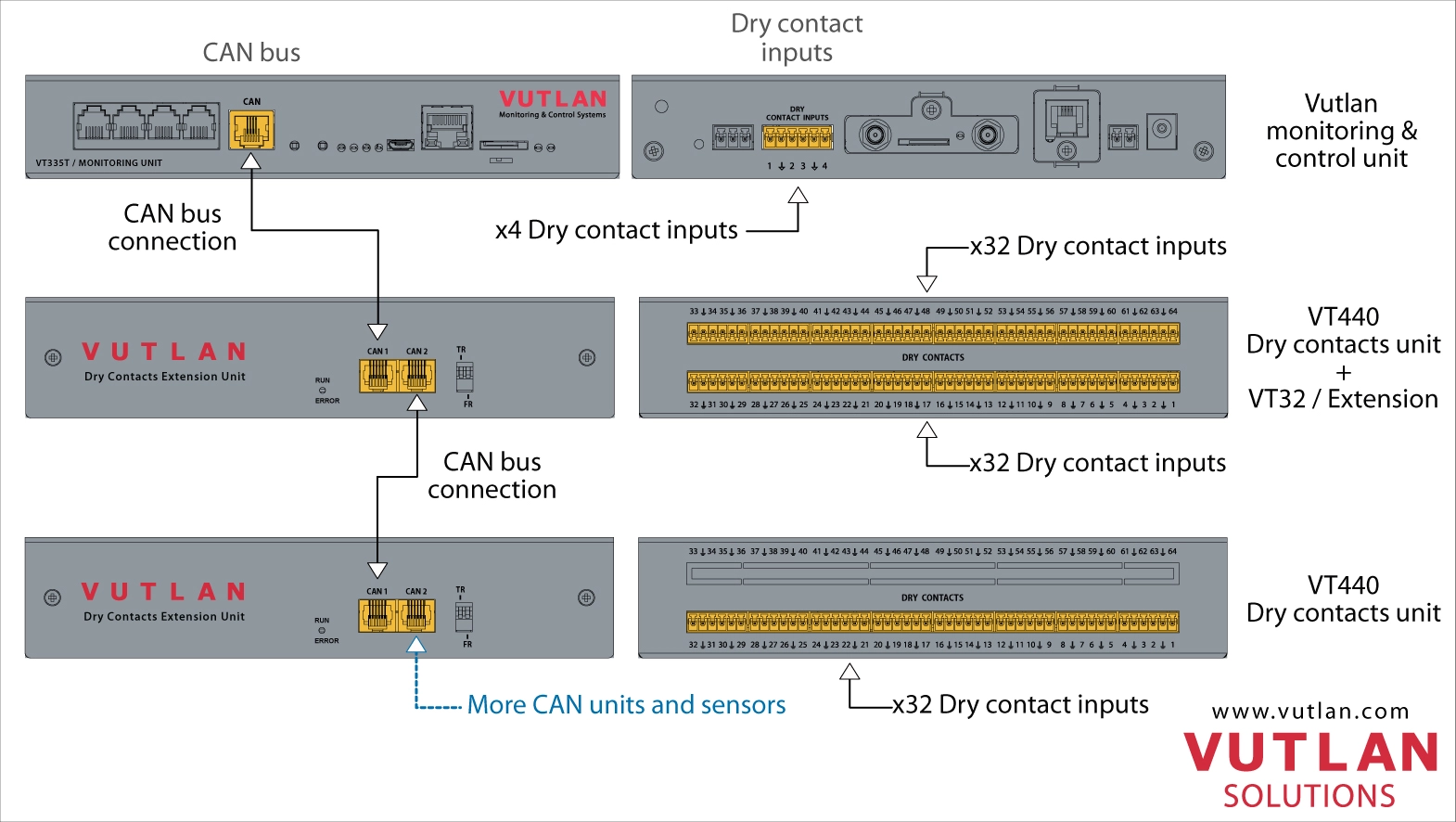

Adds 32 or 64 dry contact input terminals per unit. Multiple VT440 units can be connected over a CAN bus.
Connecting multiple CAN & analog sensors
Some Vutlan monitoring units are equipped with a CAN bus port or two. It can be used to connect up to x32 CAN bus digital sensors or extension units.
VT530 access sensor and VT560 smoke sensor analog sensors can be connected in a daisy chain. Each chain is displayed as a single sensor in Vutlan web Interface.
