VT408 Sensor Extension Unit
Previous
Next
Description
The VT408 is an extension unit that increases the number of analog sensors connected to any Vutlan monitoring unit. Each VT408 adds 8 analog sensor ports, allowing for greater scalability in monitoring complex environments. Multiple VT408 units, along with other CAN devices or sensors, can be daisy-chained via the CAN bus port for efficient expansion. All connected sensors are automatically detected and integrated into the system, simplifying setup and ensuring seamless critical infrastructure monitoring.
Up to 10-32 CAN devices can be connected in a chain. You can connect CAN sensors or extensions on a CAN bus line.
Up to x24 VT408 units can be connected on a CAN bus line. CAN-12V-1A / CAN Power Supply has to be used to provide additional power on a CAN bus line.
Accessories

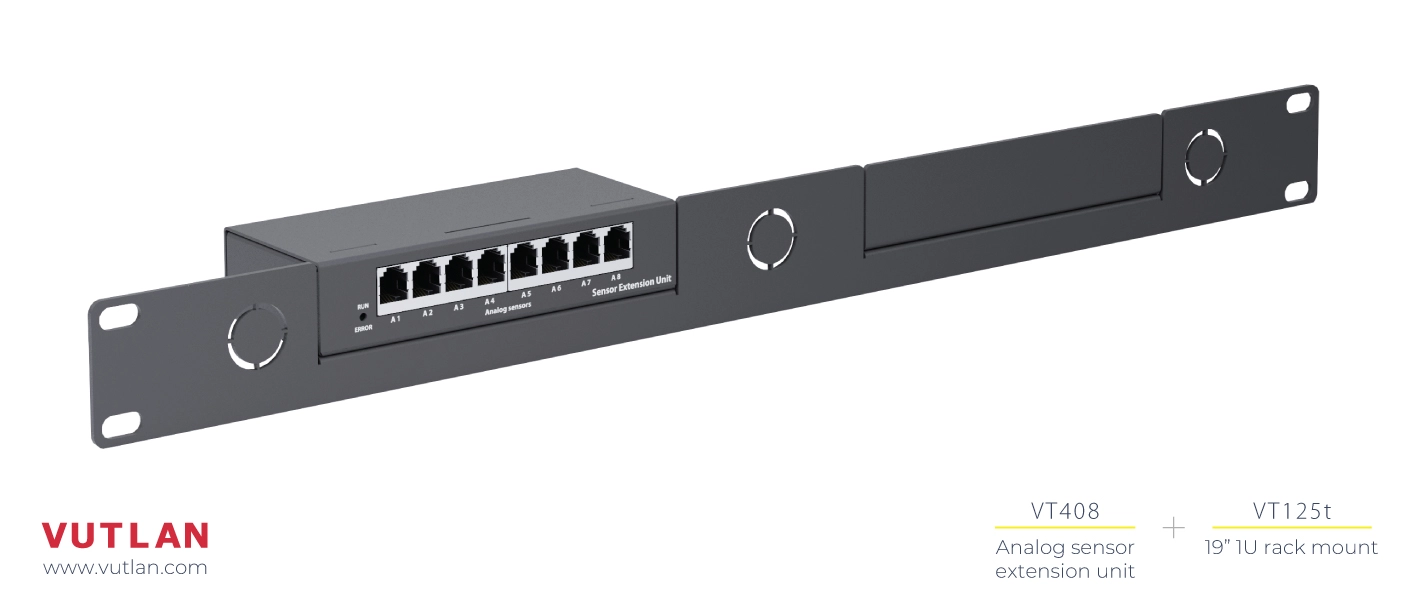

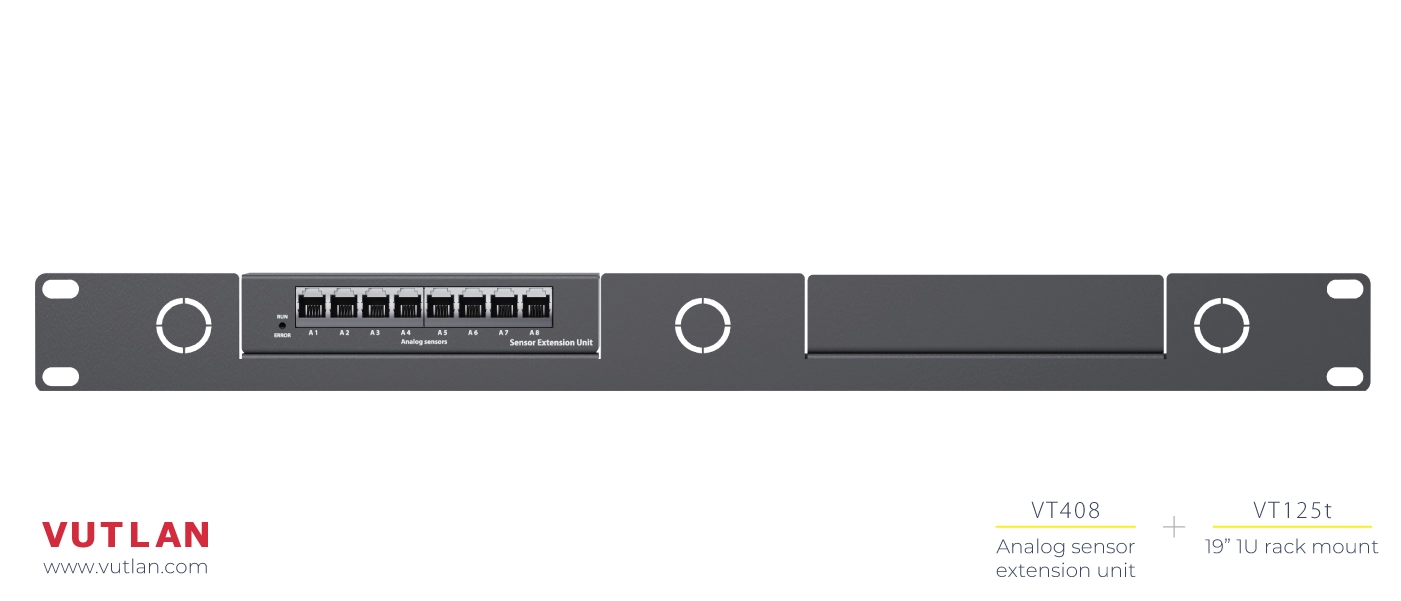

VT125t / Mounting bracket
Allow to mount x1 VT408 and x1 VT335t monitoring system onto a 19" server rack into a 1U space.
Specifications
Device type:
CAN bus device
Network Interface:
CAN open
Inputs:

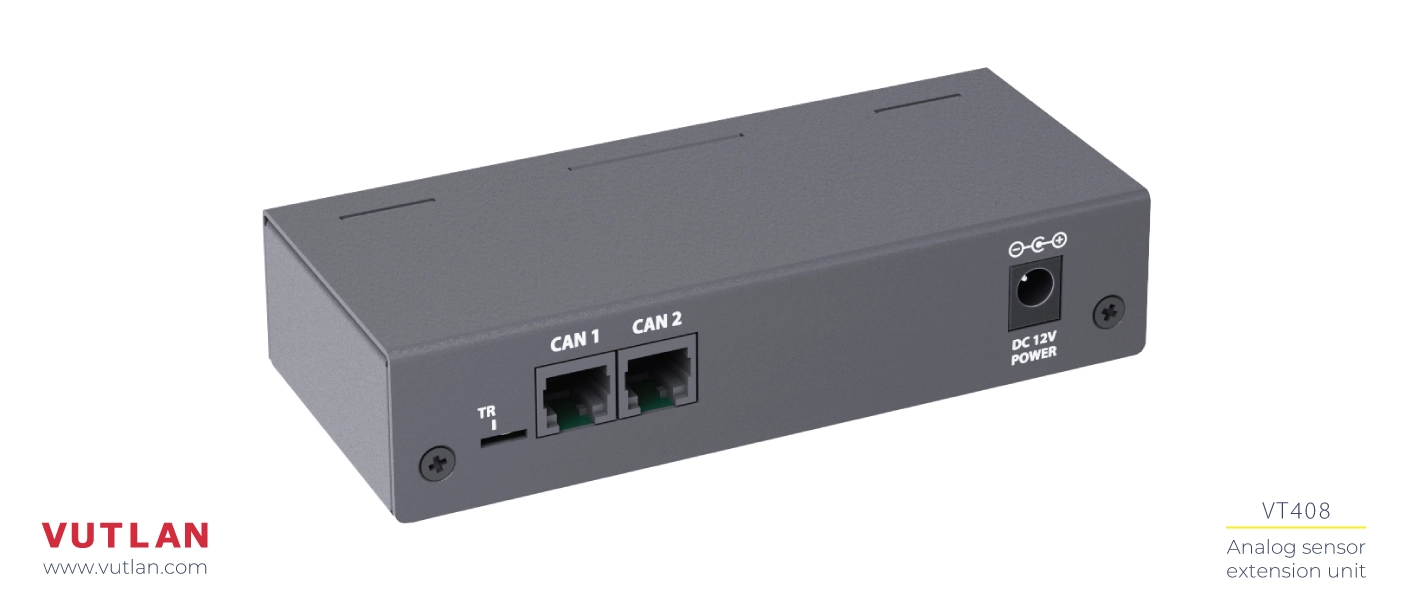

x8 analog sensor ports, x2 RJ11/RJ12 6P4C CAN ports
Daisy chain:
Yes, can be connected in a chain with other CAN bus sensors and extensions.
Operating temperature:
-10° C to +80° C
Max. distance from the unit:
Max. bus length: 225m,
Max. length of analog sensor cables: 50-150m (depends on sensor type)
Maximum units in a chain:
You can install a maximum of x24 VT 408 units, provided that no other CAN devices are installed in a CAN chain.
Power input:
12V DC
Accuracy:
Width 129, Height 28.6, Depth 56 mm
Mounting possibilities:

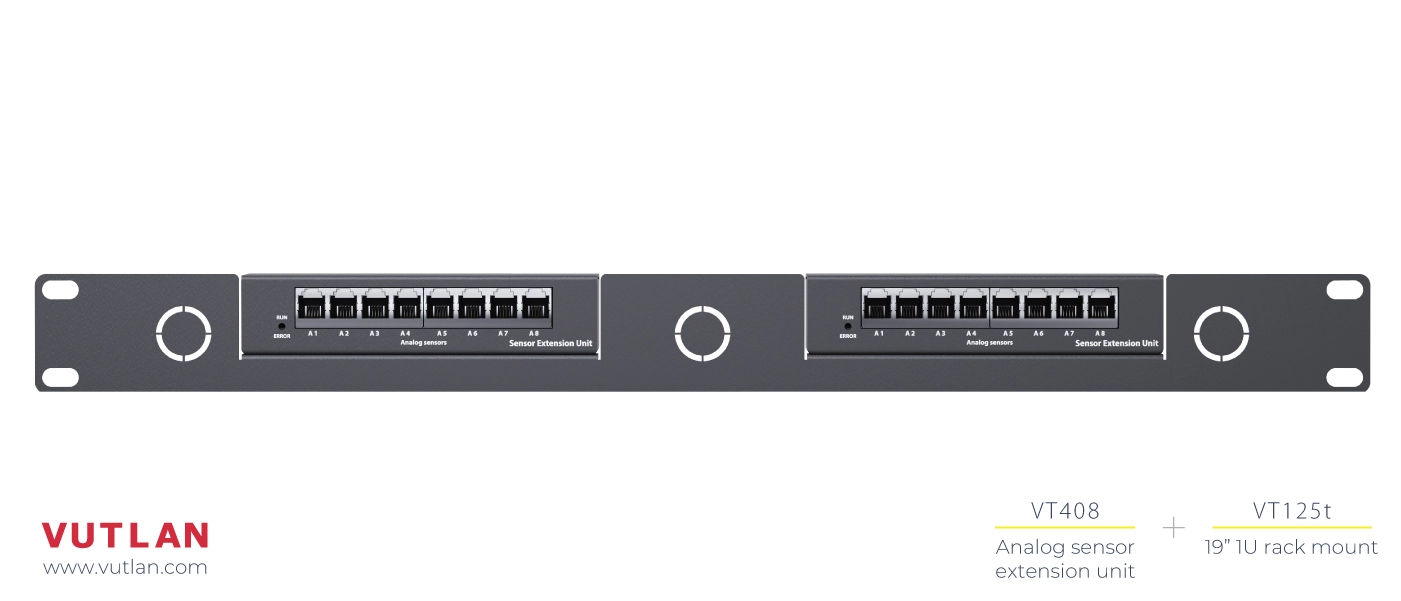

VT123 / Wall mount brackets (ordered separately) VT125t / 19” 1U Mounting kit for x2 VT408 units (ordered separately)
Status Indicators:
Red (Error) / Green Led (Run)
TR switch:
Activate if the unit is the last unit in a CAN bus chain.
Manufactured in:
Slovak Republic, E.U.
HS Code:
8471 50 000
GTIN:
8588009886389
.jpg)
Previous
Next

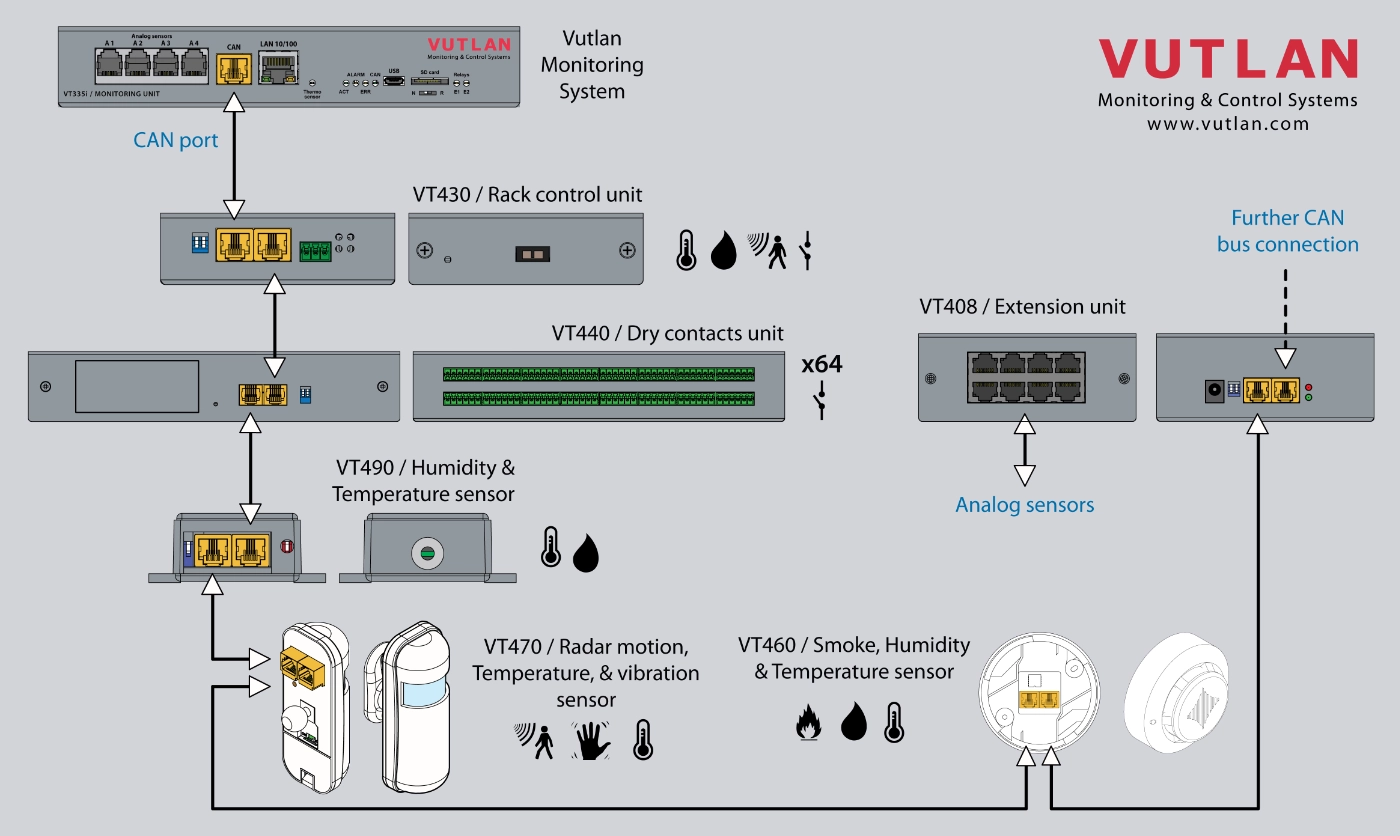

Connecting CAN sensors
You can connect up to x32 CAN units in a CAN bus chain.
E.g. Each VT408 unit in a CAN bus chain adds 8 analog sensors.
E.g. Each VT440 unit adds x32 or x64 dry contact inputs to the system.
The additional power supply CAN12V-1A is needed only if the number of sensors in a CAN bus chain is more than 12 sensors. Supplies power for each additional group of 12 sensors.
Systems with CAN ports:
To read data from the CAN sensors, you need a Vutlan monitoring and control system. A monitoring system may have x1 or x2 CAN ports.
