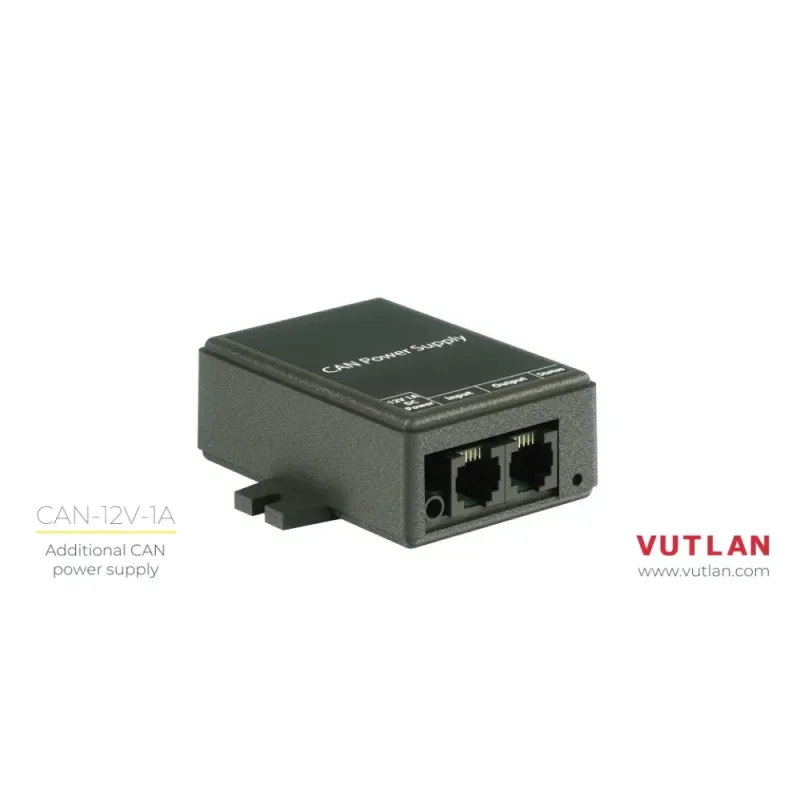

CAN-12V-1A / CAN Power Supply
Previous
Next
Description
The additional power supply is needed only if the number of sensors in a CAN bus chain is more than 12 sensors. CAN-12V-1A supplies power for each additional group of 12 CAN devices (sensors and extensions).
CAN devices and sensors can be chained together. Up to 10-32 CAN devices can be connected in a chain. You can connect CAN sensors or extensions on a CAN bus line.
Downloads
Specifications
Type of sensor:
CAN bus power source
Used for:
Additional power supply for a CAN bus chain
Inputs/Outputs
x2 ports RJ11/RJ12 6P4C
Daisy chain:
Allows daisy chain
Power:
x12 Maximum quantity of CAN sensors powered:
LED indicators:
Green (Status On/Off)
Operating temperature:
-40° C to +100° C
Operating humidity:
0 to 95 % (Non-Condensing)
Power input:
12V DC, min. 1A, max.2A, ⌀3.4/1,35 mm
Dimensions:
68 x 67 x 26,2 mm (LxWxH)
Mounting possibilities:
Desktop, Wall mount, Indoor
Manufactured in:
Slovak Republic, E.U.
HS Code:
8504 40 90
GTIN:
8588009886471
.jpg)
Previous
Next
Connecting CAN sensors
You can connect up to x32 CAN units in a CAN bus chain.
E.g. Each VT408 unit in a CAN bus chain adds 8 analog sensors.
E.g. Each VT440 unit adds x32 or x64 dry contact inputs to the system.
The additional power supply CAN12V-1A is needed only if the number of sensors in a CAN bus chain is more than 12 sensors. Supplies power for each additional group of 12 sensors.
Systems with CAN ports:
To read data from the CAN sensors, you need a Vutlan monitoring and control system. A monitoring system may have x1 or x2 CAN ports.
