€137.76 Tax included

Comfort Climate Monitoring

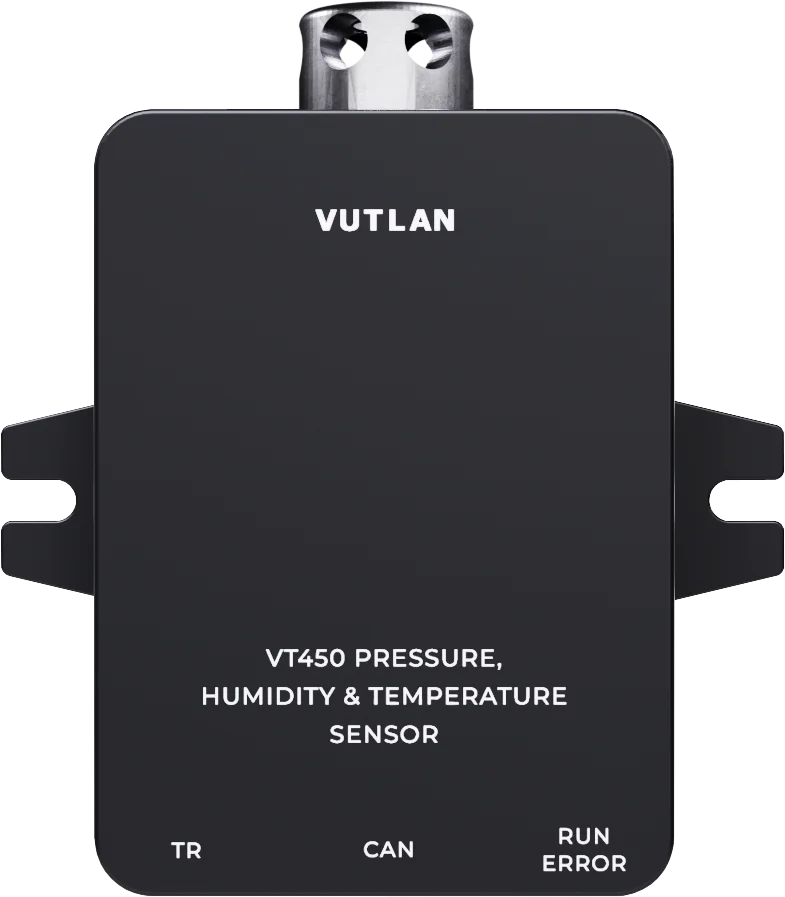

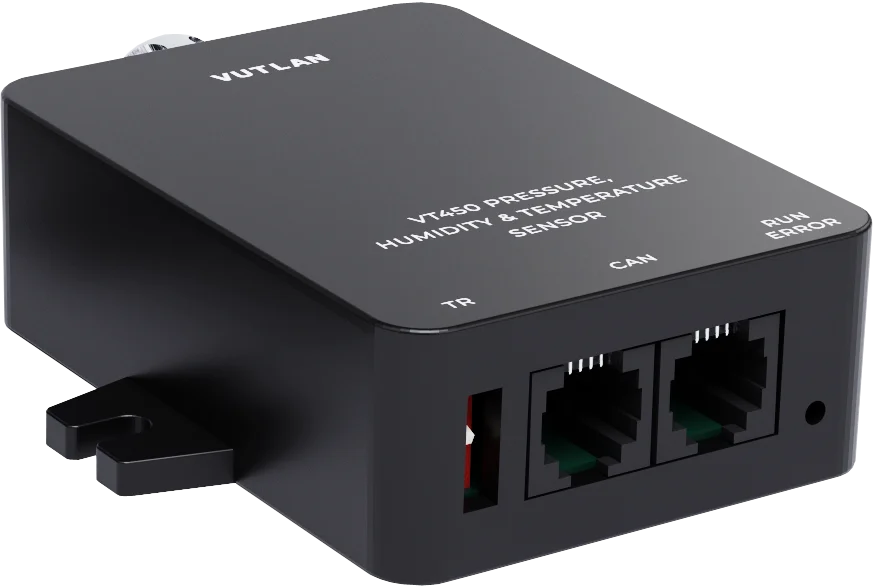

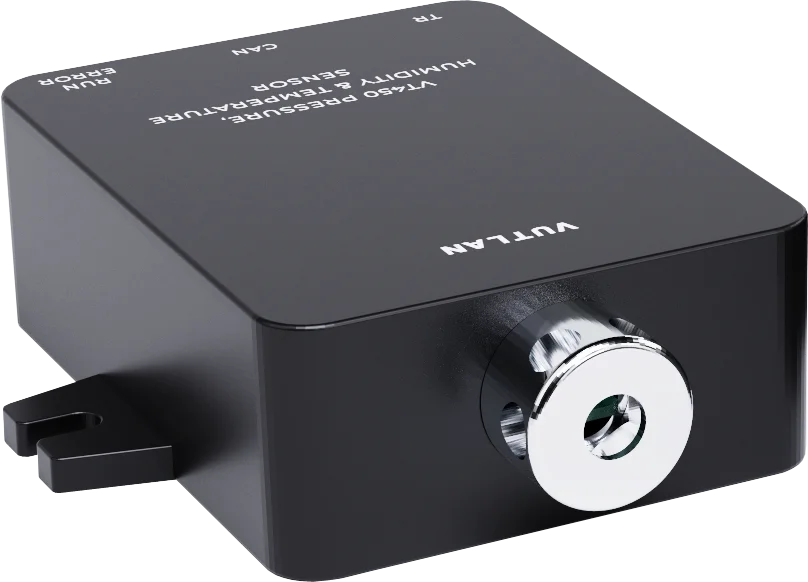

The VT450 Triple sensor is a high-quality pressure, humidity and temperature sensor. By connecting VT450 in a CAN daisy chain you can measure parameters in each location of a room or a server rack. The Dew point is easily calculated using the temperature and humidity parameters of VT450 sensor inside the Vutlan web interface. CAN devices and sensors can be chained together. Up to 10-32 CAN devices can be connected in a chain. RH accuracy is ± 3%, temperature accuracy is ± 1°C, pressure accuracy is ±1.5Pa/K.

Wireless comfort climate monitoring in office buildings

Use cases

The flexibility of the VT450 sensor is critical, allowing it to be adapted to any specific environmental conditions.

  • Industrial facilities: monitoring environmental conditions in manufacturing plants.
  • Data Center Monitoring: Monitors critical environmental factors such as temperature and humidity.
  • Warehouses & Storage: Protect goods from moisture damage or mold by keeping ambient conditions under control.
  • Pharmaceutical Storage Rooms: Maintain precise climate control for medicine and vaccine storage compliance.
  • Food Processing Plants: Monitor humidity and temperature to prevent spoilage and ensure food safety standards.

Sensor features

Vutlan sensors are designed to deliver reliable, real-time environmental monitoring with flexible configuration and clear data visualization. Each sensor integrates seamlessly into your system, providing precise measurements and actionable insights.

- Logic schemes
- Create automated actions based on defined conditions
- Dashboard overview
- Thresholds
- Graphs and Logging

Web UI customizable dashboard
Sensor data logging
High temperature notification alarm
Sensor graph

Connecting CAN sensors

You can connect multiple CAN devices to a CAN bus chain.

Each VT408 unit in the CAN bus chain adds 8 analog sensors. Each VT440 unit adds 32 or 64 dry contact inputs to the system.

An additional CAN12V-1A power supply is only required if the number of CAN devices in the CAN bus chain exceeds 12 pieces.

Connecting CAN sensors
Configure CAN bus
CAN-12V-1A CAN power supply

Systems with CAN ports:

To read data from the CAN sensors, you need a Vutlan monitoring device with one or two CAN ports.

Technical Specification

Function & Purpose
Detects:
Pressure, humidity and temperature
Dew point element in WebUI.
Communications
Sensor type:
CAN digital sensor
Network Interface:
CAN open
Inputs/Outputs:
x2 RJ11 6P4C ports
Daisy chain:
Yes, the daisy chain is possible for all CAN sensors.
Accuracy
Pressure RMS noise:
0.2Pa (equivalent to 1.7cm)
Pressure error:
±0.25% (equivalent to 1m at 400m height change)
Pressure from °C:
±1.5Pa/K (equivalent to ±12.6cm at 1 °C temperature change)
RH accuracy:
± 3% RH (max)
Hysteresis:
≤2% RH
Response time:
1 s
Temperature:
1.5°C
Environmental
Pressure range:
300 to 1100 hPa
Working temperature range:
−40 to +85 °С
Humidity operating range:
0 to 95% RH
Power Requirement
Power input:
12V DC, 1A (power supplied on a CAN bus chain)
Current consumption:
1 Watt
Max. distance from the monitoring unit:
225m
Mechanics
Dimensions:
68x47x26 mm
Packaging weight:
160 g
Mounting options:
Desktop, Wall mount
LED indicators:
Red / Green (RUN/ERR)
TR switch:
Turn on for the last device in a CAN bus line
General
Origin:
Made in EU
Manufactured by:
Vutlan s.r.o.
HS code:
9025 11 800
GTIN:
8588009886518
Warranty:
90 days
