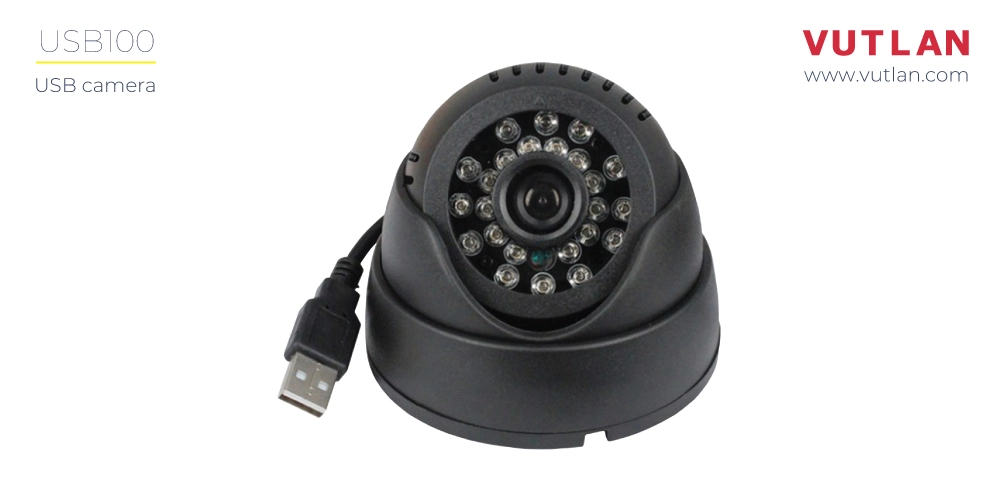

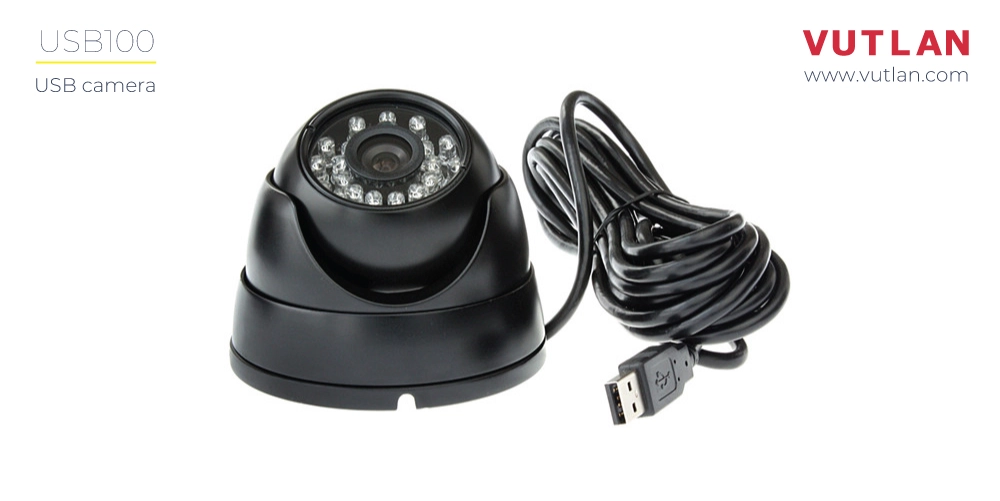

USB100 Dome Camera
Previous
Next
Description
A USB100 USB camera can be easily connected to any Vutlan monitoring system via a USB port, allowing it to capture and record video in the MJPEG stream format.

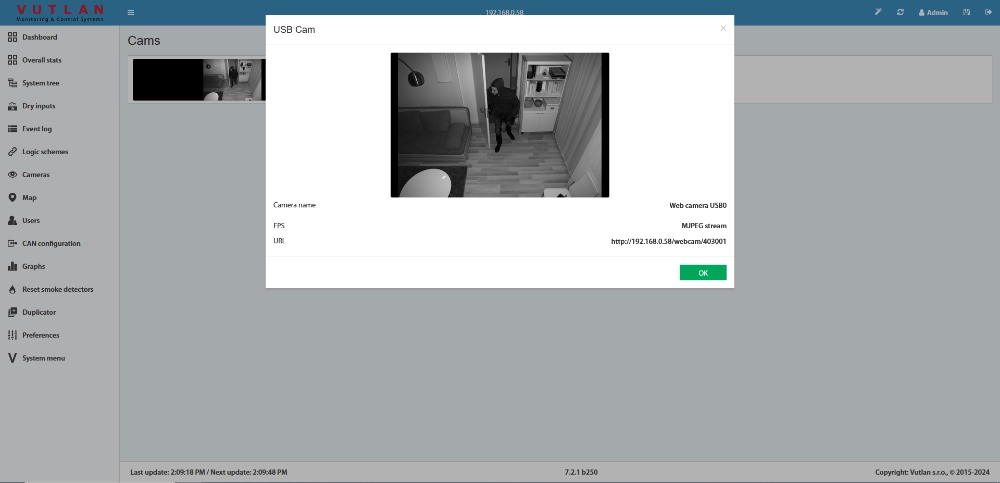

Alarm-Triggered Recording: When an alarm event occurs, the camera automatically records the video stream.

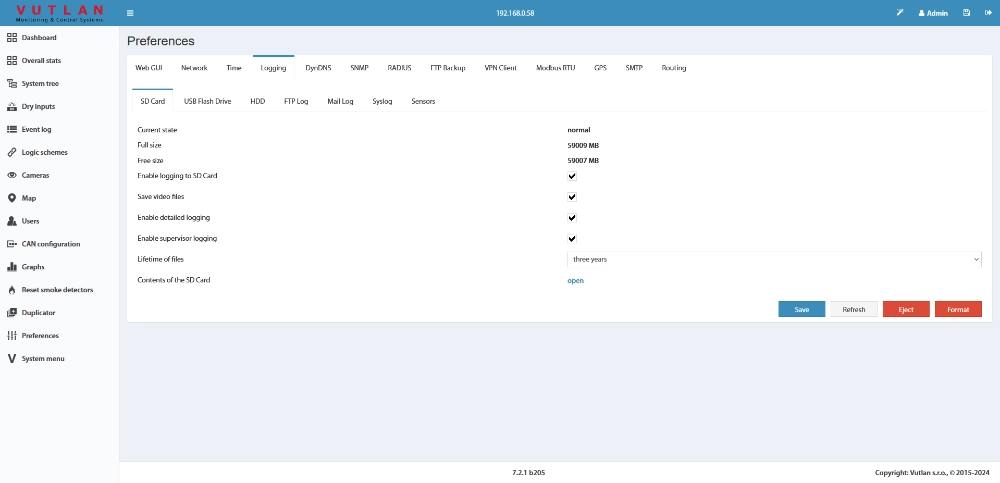

Flexible Storage Options: The recorded video can be saved to an SD card, or USB flash drive, or uploaded to an FTP log.

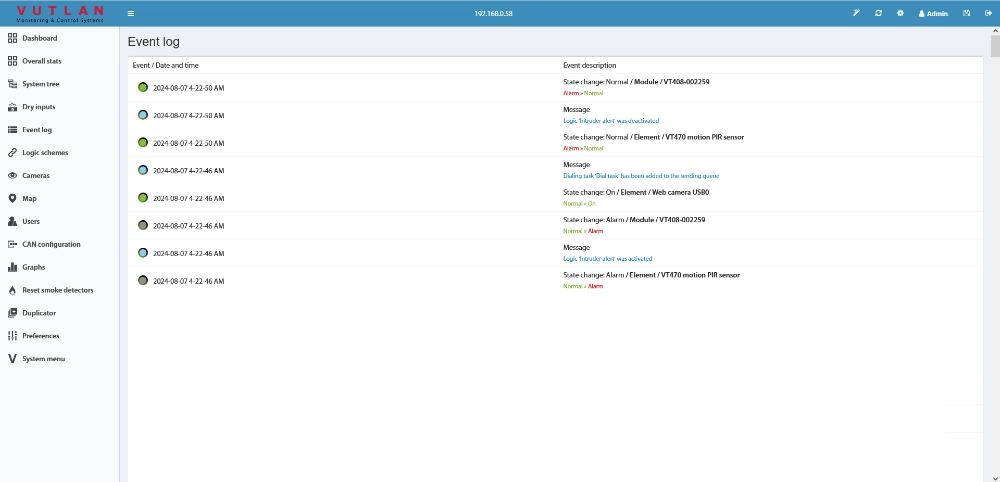

Real-Time Alerts: Video notifications can be sent through email, providing immediate visibility into critical events.
This solution is ideal for adding a visual layer of security and monitoring to various systems, ensuring that footage is captured and accessible during key moments.
Specifications
Type:
USB Dome camera
Used for:
Recording video stream in case of triggered event. For sending video notifications.
Output:
USB Type A
Max. Resolution:
720P HD
Compression format:
MJPEG
Connecting Port type:
USB2.0 High Speed
LED:
24 LEDs
Power supply:
USB BUS POWER 4P-2.0mm socket
Power supply:
5V DC
Operating Voltage:
100mA~120mA
Optical operating temperature:
-10～70℃
Working temperature:
-20～85℃
Working temperature:
Diameter 92mm, Height 65.5 mm
Cable length:
5 meters
Manufactured in:
China
HS code:
8525 80 30
GTIN:
8588009886532
Systems with CAN ports:
To read data from the CAN sensors, you need a Vutlan monitoring and control system. A monitoring system may have x1 or x2 CAN ports.
