VT510 Humidity sensor
Previous
Next
Description

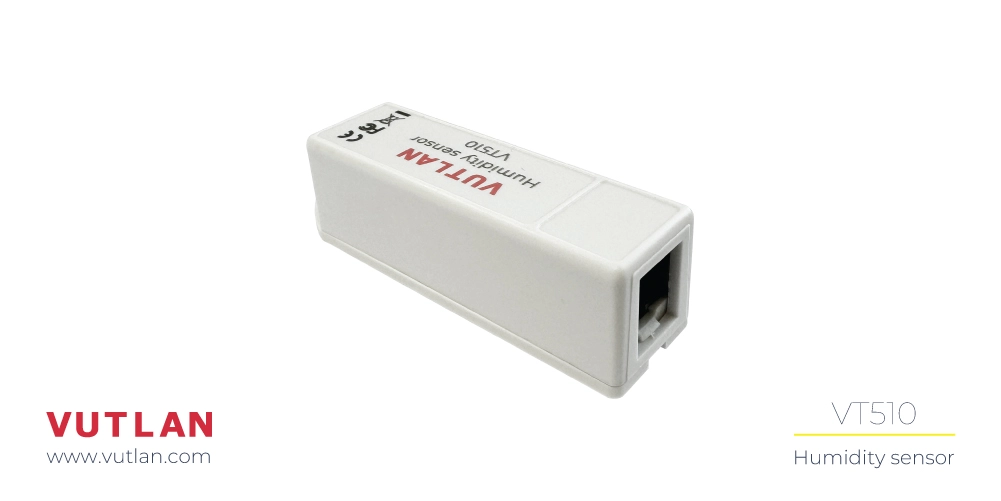

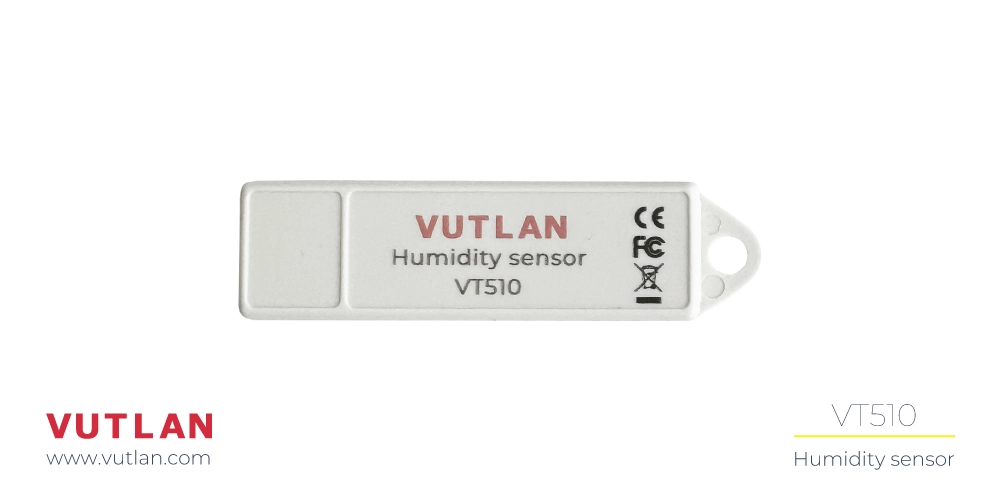

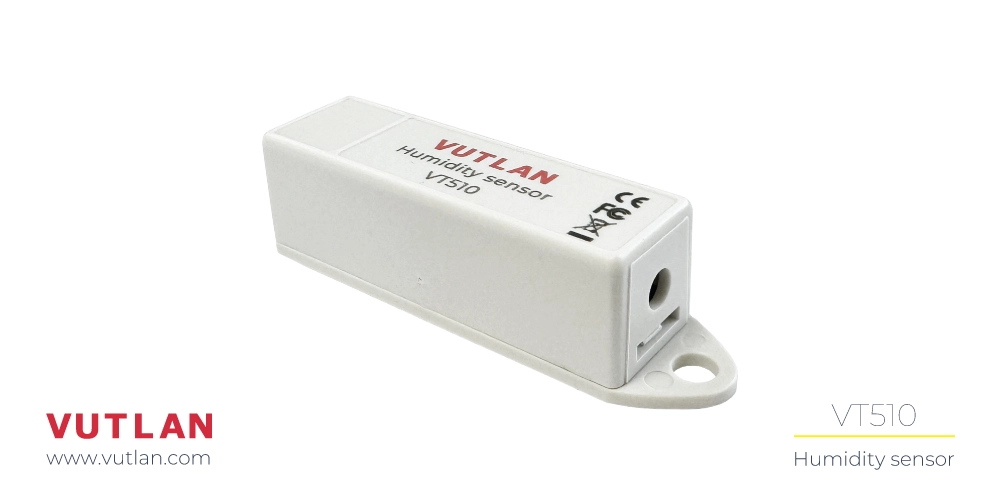

The VT510 / Relative Humidity Sensor is designed for precise measuring indoor relative humidity levels ranging from 10% to 95%. It’s an analog plug-and-play sensor that seamlessly integrates with Vutlan monitoring units.

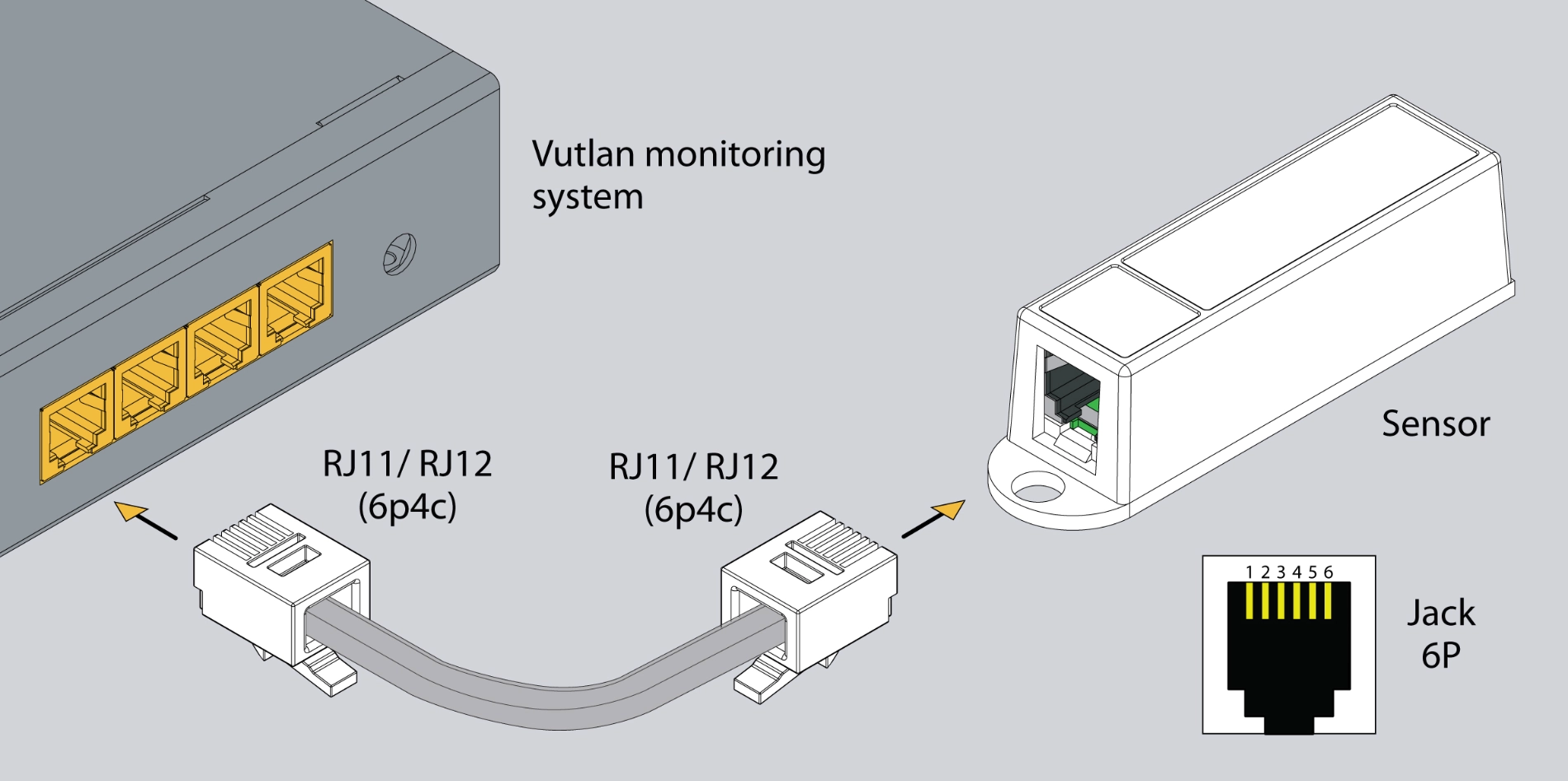

This sensor can be connected to any analog port (A1...A8) of the Vutlan monitoring system, providing real-time humidity data. The maximum number of sensors and the distance from the monitoring unit can be extended using the "VT408 / Sensor extension unit", offering greater flexibility for larger installations.
Use cases
These examples show the sensor’s versatility in various fields where monitoring and maintaining optimal humidity is crucial.
- Data Centers and Server Rooms: Used to monitor humidity levels, preventing moisture buildup that could damage sensitive electronic equipment and lead to downtime or hardware failure.
- Industrial Automation: Helps maintain optimal environmental conditions in factories, warehouses, and production facilities where humidity control is critical for processes, equipment longevity, or product quality.
- Clean Rooms: In pharmaceutical or electronics manufacturing, maintaining precise humidity levels is essential to avoid contamination or static electricity that could impact product quality.
- HVAC Systems: Provides real-time data for climate control systems, enabling efficient regulation of humidity in buildings and ensuring a comfortable indoor environment.
- Laboratories: Ensures that controlled environments like research labs maintain proper humidity levels for experiments, equipment, and sample storage.
- Greenhouses and Indoor Farming: Vital for controlling the humidity necessary for plant growth and preventing mold or fungal growth.
Specifications
Type of sensor:
Analog sensor
Measures:
Relative humidity
Accuracy:
3% RH
Daisy chain:
No
Cable length:
RJ11 6P4C 2m telephone cable included
Power consumption:
60 mW
Operating temperature:
Optimal temperature range: -10° C to +80° C
Operating humidity:
0 to 95 % indoors
Mounting possibilities:
Indoor,
Rack mountable,
Wall mount
Max. distance from the unit:
50 m
Manufactured in:
Slovak Republic, E.U.
HS Code:
9025 11 800
EAN:
8588009886136
Previous
Next
Sensor features
Logic schemes
Logic schemes are used to specify automatic actions to events that occur in the system.
Dashboard view
The system allows to customize the dashboard individually for each user and displays the most important information on it in a visual form.
Add widgets with multi graphs, gauge meters or knobs.
Thresholds
Each sensor has Low Alarm, Low Warning, Normal, High Warning, and High alarm threshold states for logic control & sending of notification.
Graphs and Logging
Vutlan supports SD card logging up to 500 Gb. You can log a whole systems loaded with sensors for 3 years.
Previous
Next
Add more analog sensors using VT408 or VT408DIN
'VT408 Sensor extension unit' and 'VT408DIN Sensor extension unit" increase the number of analog sensors connected to any Vutlan monitoring unit. Each VT408 unit adds 8 analog sensors. Multiple VT408 units can be connected using a daisy CAN chain. Sensors connected to the extension unit appear in the system automatically.
Systems with analog ports:
To read data from the analog sensors, you need Vutlan monitoring and control system. All the following monitoring & control systems have a different amount of analog ports.
