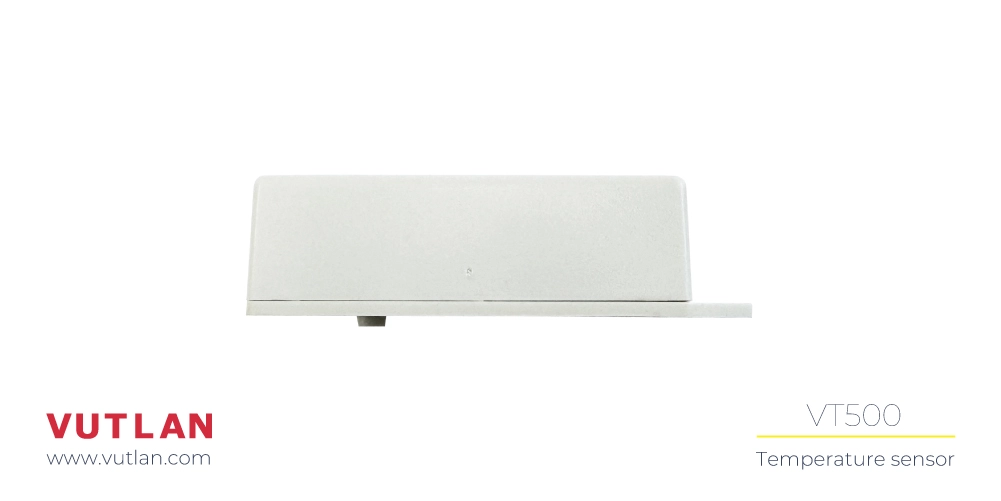

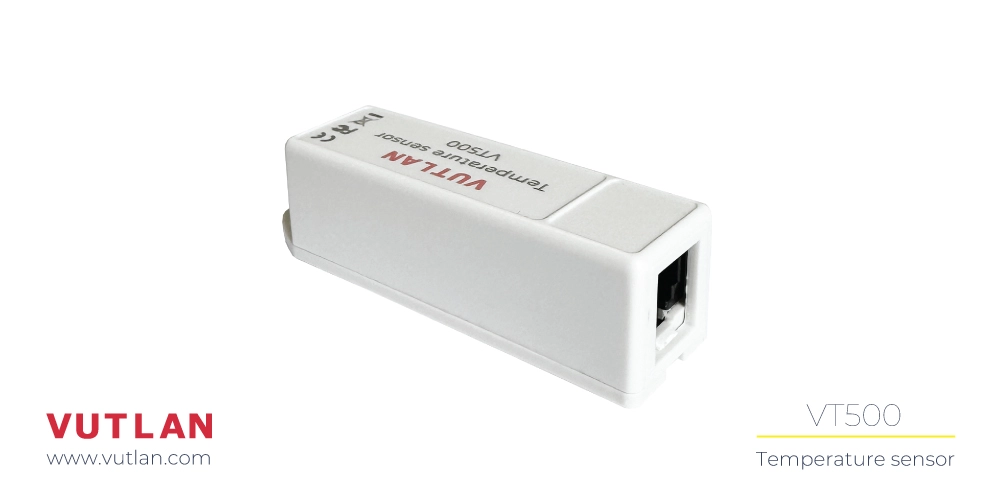

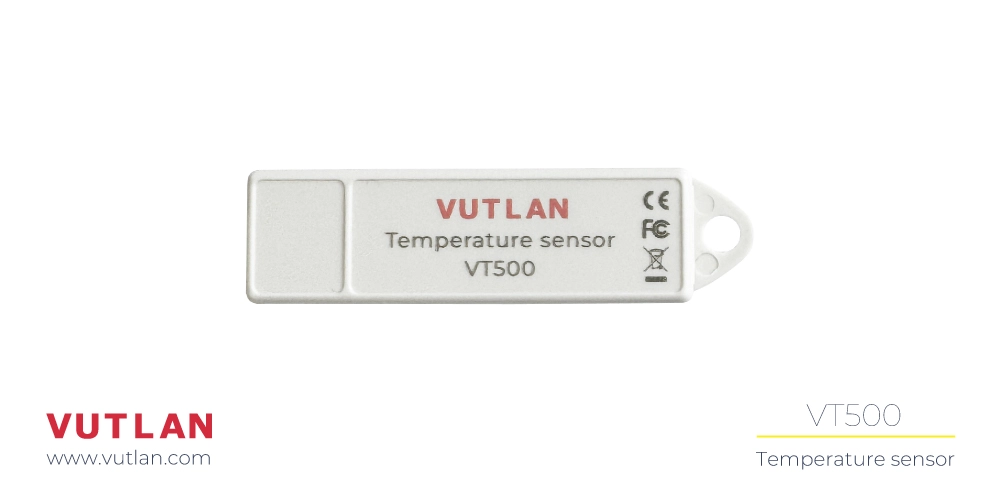

VT500 Temperature sensor
Previous
Next
Description
The VT500 / Temperature Sensor is designed for precise indoor temperature measurements, providing an accuracy of ± 0.15 °C at room temperature. This plug-and-play sensor can be easily connected to any analog port (A1...A8) of Vutlan monitoring systems.
The maximum amount of sensors and maximum length can be extended using the VT408 / Sensor extension unit.
Use cases
VT500 helps maintain environmental conditions for equipment and inventory across various industries.
- Data Centers & Server Rooms: Monitor temperature levels in sensitive environments to prevent overheating or cooling issues, ensuring optimal performance of servers and IT equipment.
- Telecom Facilities: Track temperature in telecom base stations to safeguard electronic equipment from temperature extremes and ensure operational stability.
- Industrial Automation: Maintain control over environmental conditions in automated systems, ensuring that temperature-sensitive machinery operates within safe limits.
- Pharmaceutical Storage: Monitor temperature in storage areas to ensure the safety and stability of temperature-sensitive products like medications and vaccines.
- Energy and Utility Monitoring: Measure the temperature in utility rooms and electrical panels, preventing overheating of vital infrastructure.
- Warehouses: Use the sensor to monitor temperature in large storage facilities, maintaining optimal conditions for goods and inventory.
Specifications
Type of sensor:
Analog sensor
Measures:
Temperature
Accuracy:
± 0.5 °C at room temperature
Daisy chain:
No
Cable length:
2 meters
Power consumption:
60 mW
Operating temperature:
Optimal temperature range: -10° C to +80° C
Operating humidity:
0 to 95 %
Mounting possibilities:
Desktop,
Indoor,
Rack mountable,
Wall mount
Max. distance from the unit:
100 m
Outputs terminals:
RJ-11 / 6P4C
Manufactured in:
Slovak Republic, E.U.
HS Code:
9025 11 800
EAN:
8588009886112
Previous
Next
Sensor features
Logic schemes
Logic schemes are used to specify automatic actions to events that occur in the system.
Dashboard view
The system allows to customize the dashboard individually for each user and displays the most important information on it in a visual form.
Add widgets with multi graphs, gauge meters or knobs.
Thresholds
Each sensor has Low Alarm, Low Warning, Normal, High Warning, and High alarm threshold states for logic control & sending of notification.
Graphs and Logging
Vutlan supports SD card logging up to 500 Gb. You can log a whole systems loaded with sensors for 3 years.
Previous
Next
Add more analog sensors using VT408 or VT408DIN
'VT408 Sensor extension unit' and 'VT408DIN Sensor extension unit" increase the number of analog sensors connected to any Vutlan monitoring unit. Each VT408 unit adds 8 analog sensors. Multiple VT408 units can be connected using a daisy CAN chain. Sensors connected to the extension unit appear in the system automatically.
Systems with analog ports:
To read data from the analog sensors, you need Vutlan monitoring and control system. All the following monitoring & control systems have a different amount of analog ports.
