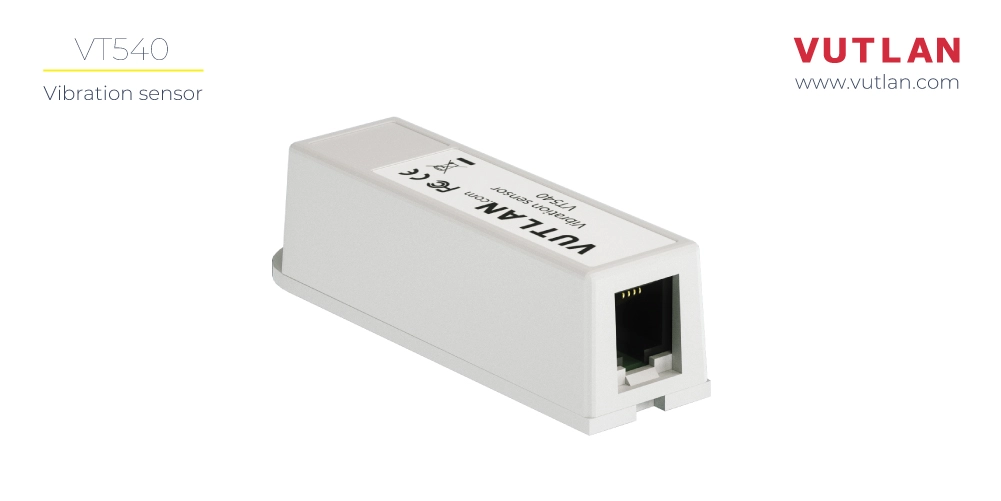

VT540 Vibration Sensor
Previous
Next
Description
The VT540 Vibration Sensor is designed to detect and monitor vibrations when installed on surfaces such as walls or windows. It can detect events like window breakage by an intruder when installed on window glass. The sensor connects to any analog port (A1...A8) of the Vutlan monitoring unit, offering real-time vibration monitoring.
For larger setups, the number of sensors and system length can be extended using the VT408 Sensor Extension Unit, providing scalable and secure monitoring for your facility.
Use cases
The VT540 Vibration Sensor can be used for a variety of security and monitoring purposes:
- Intrusion Detection: When installed on windows or walls, it can detect vibrations caused by break-ins, such as glass breakage or forced entry attempts, making it ideal for securing doors, windows, and other access points.
- Building and Structural Monitoring: It can monitor vibrations in buildings or infrastructure to detect structural issues, like cracks or instability, and provide early warnings for preventive maintenance.
- Equipment Monitoring: The sensor can detect unusual vibrations in machinery or equipment, helping to identify mechanical failures or operational issues in industrial or data center environments.
- Vibration-sensitive Areas: It can be used in environments where vibration levels must be controlled, such as laboratories or areas with delicate equipment.
Specifications
Type of sensor:
Analog sensor
Measures:
Vibration
Daisy chain:
No
Cable length:
RJ11/RJ12 6P4C 2m telephone cable included
Power consumption:
60 mW
Operating temperature:
Optimal temperature range: -10° C to +80° C
Operating humidity:
5 to 95 % (Non-Condensing)
Outputs:
RJ11 / RJ12 (6p4c)
Mounting possibilities:
The mounting bracket, sticker, and screws are included. Installed on the surface where possible vibration is possible. E.g. windows, doors, etc.
Max. distance from the unit:
150 m
Manufactured in:
Slovak Republic, E.U.
HS Code:
9025 11 800
GTIN:
8588009886174
Previous
Next
Sensor features
Logic schemes
Logic schemes are used to specify automatic actions to events that occur in the system.
Dashboard view
The system allows to customize the dashboard individually for each user and displays the most important information on it in a visual form.
Add widgets with multi graphs, gauge meters or knobs.
Thresholds
Each sensor has Low Alarm, Low Warning, Normal, High Warning, and High alarm threshold states for logic control & sending of notification.
Graphs and Logging
Vutlan supports SD card logging up to 500 Gb. You can log a whole systems loaded with sensors for 3 years.
Previous
Next
Add more analog sensors using VT408 or VT408DIN
'VT408 Sensor extension unit' and 'VT408DIN Sensor extension unit" increase the number of analog sensors connected to any Vutlan monitoring unit. Each VT408 unit adds 8 analog sensors. Multiple VT408 units can be connected using a daisy CAN chain. Sensors connected to the extension unit appear in the system automatically.
Systems with analog ports:
To read data from the analog sensors, you need Vutlan monitoring and control system. All the following monitoring & control systems have a different amount of analog ports.
