VT520 AC Voltage Monitor
Previous
Next
Description
Ensure stable power conditions with the VT520 AC Voltage Monitor. Designed for real-time monitoring of AC voltage levels, it helps protect critical infrastructure by detecting fluctuations and power anomalies. Easily integrated with Vutlan’s monitoring systems for instant alerts and automatic actions.
The sensor measures AC voltage 0-246V. Interchangeable plug types for Europe, the US, China, Australia, and South Africa for power sockets or power strips with IEC C14 outlets.

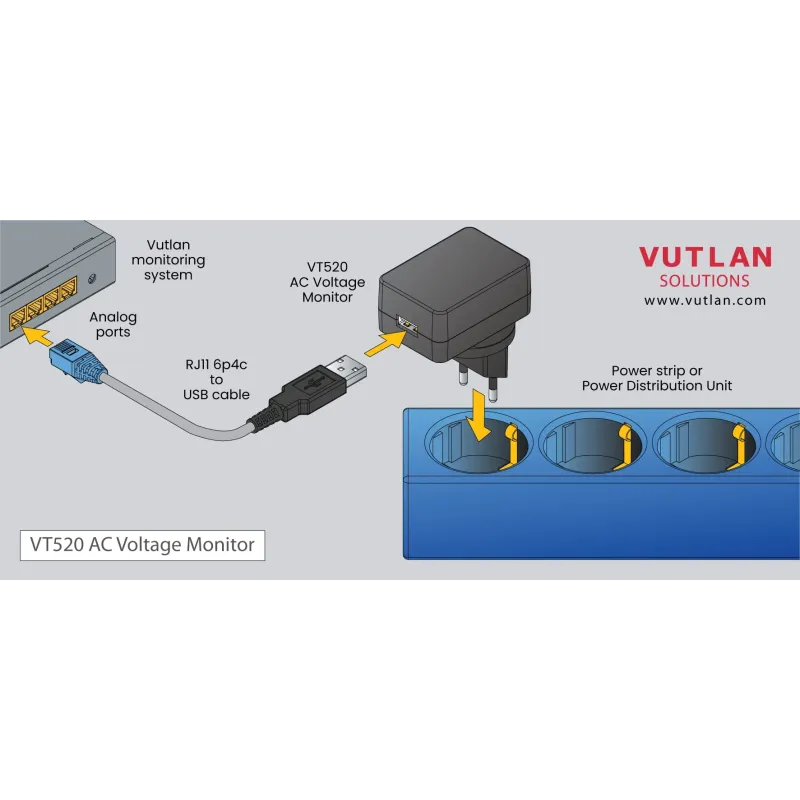

Can be connected to any analog port (A1...A8) of the Vutlan monitoring unit. The sensor is plug-and-play.
Using the VT408/Sensor extension unit, the maximum number of sensors connected to a single Vutlan monitoring unit and its maximum length can be extended.

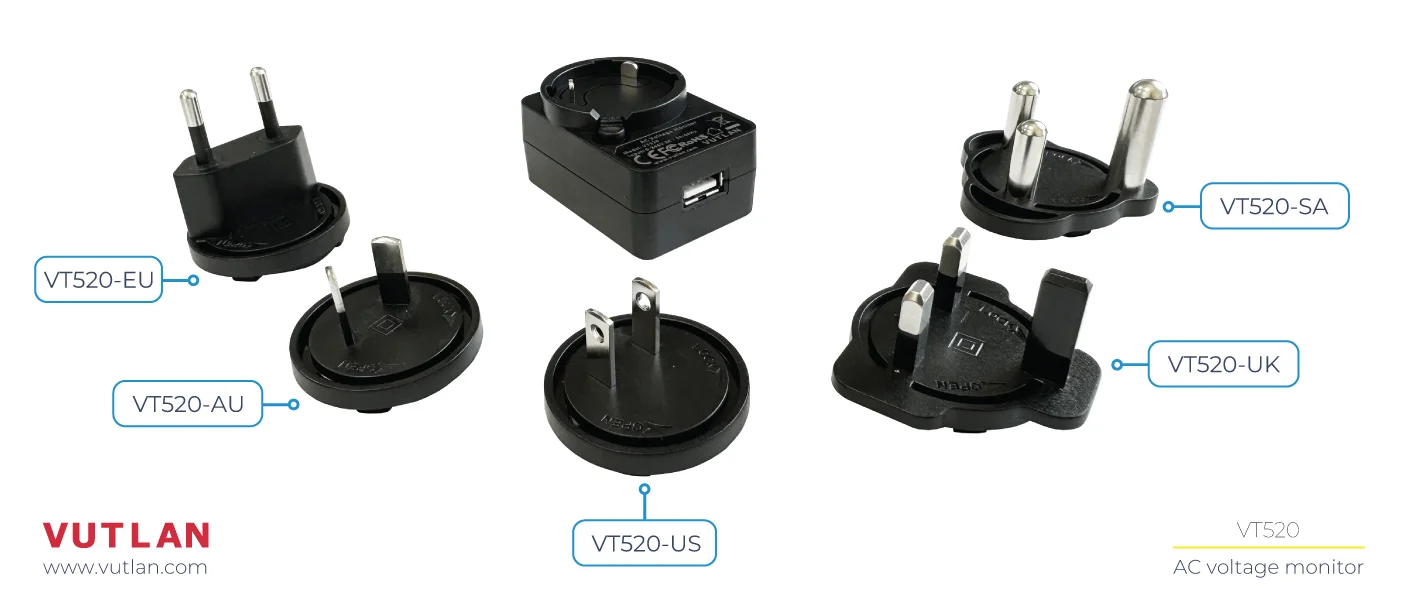

Models

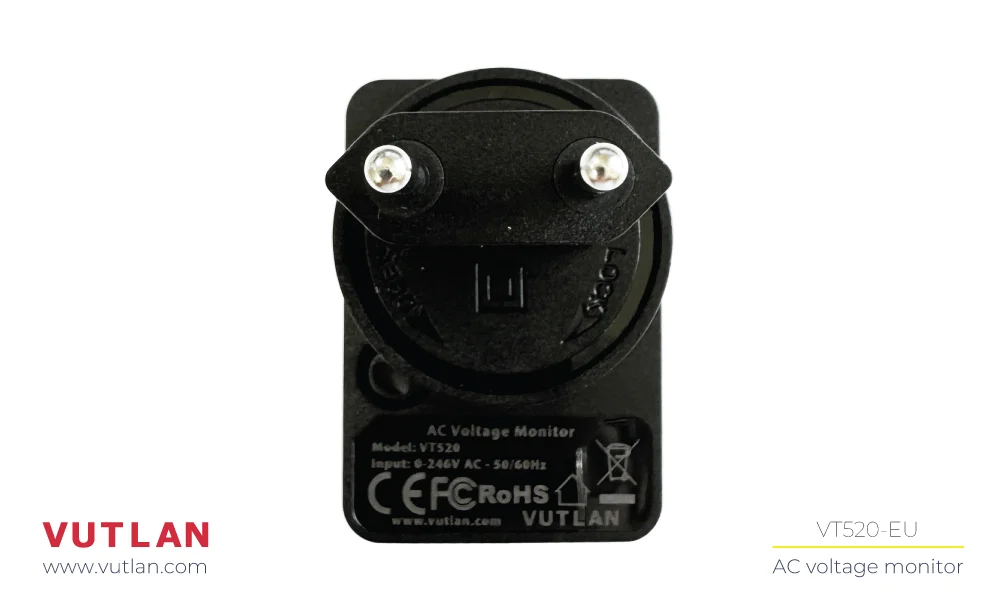

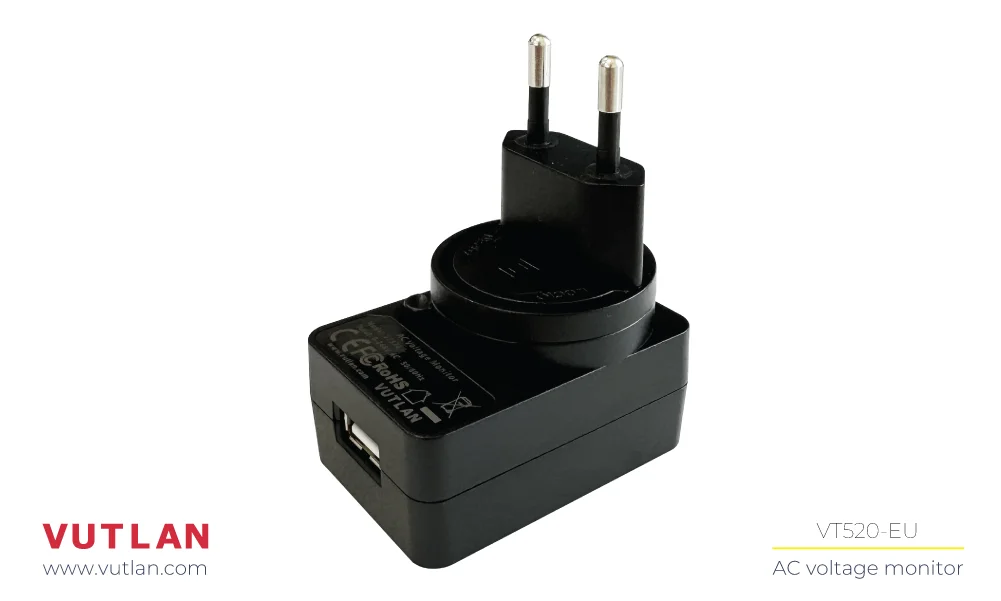

VT520-EU:
For Europe, South America & Asia
European plug type C (CEE 7/16 Europlug)

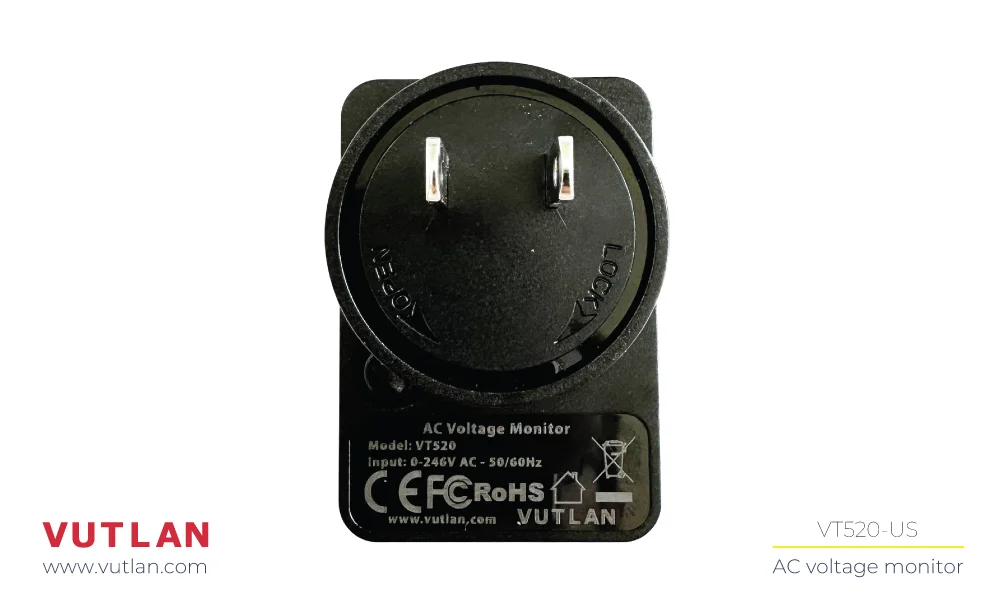

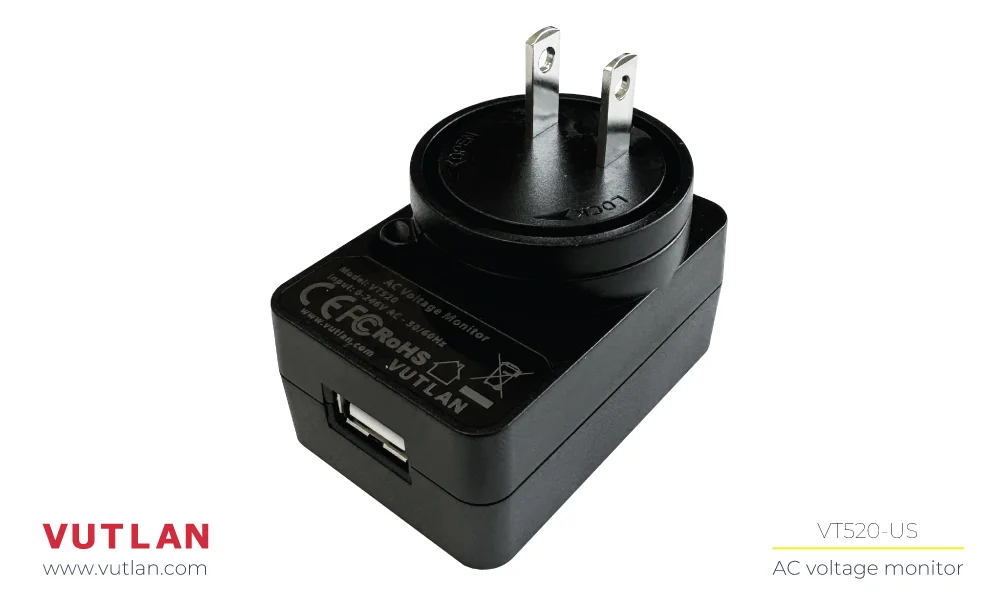

VT520-US:
For USA, Canada, Mexico & Japan
European plug type A (NEMA 1-15 U.S. 2 pin)

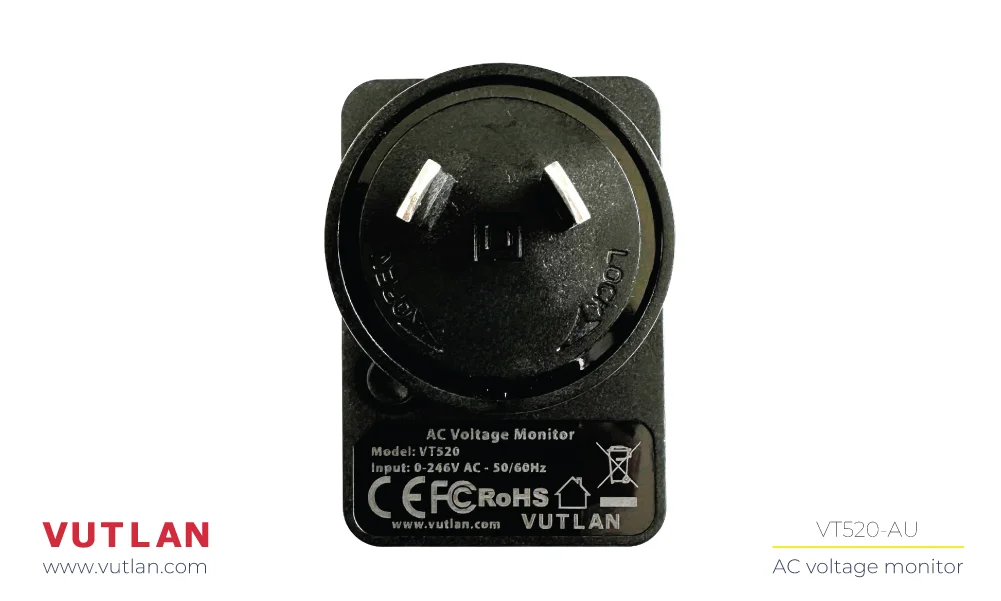

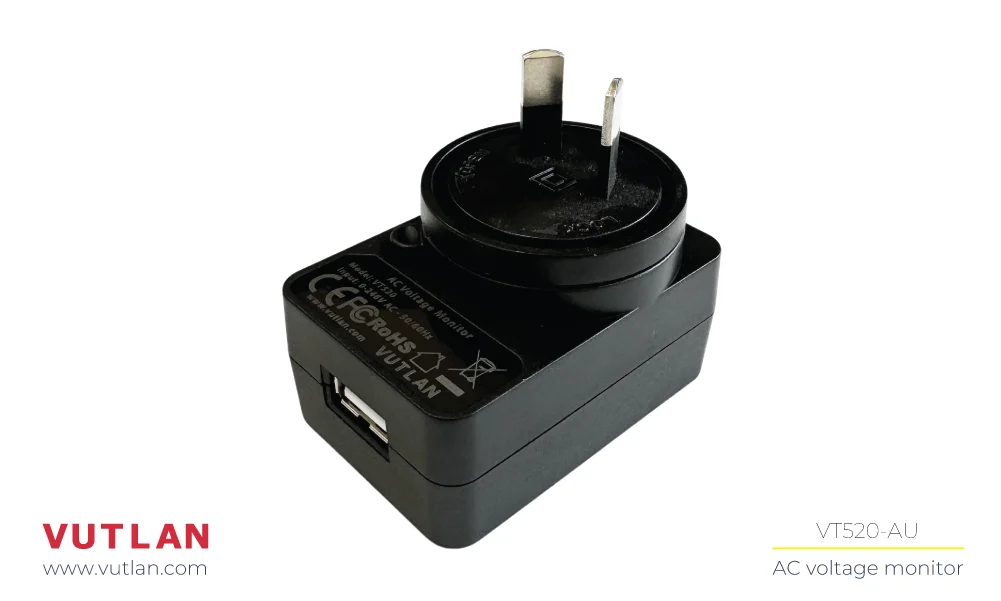

VT520-AU:
For Australia, New Zealand, China & Argentina
European plug type I (Australian AS/NZS 3112)

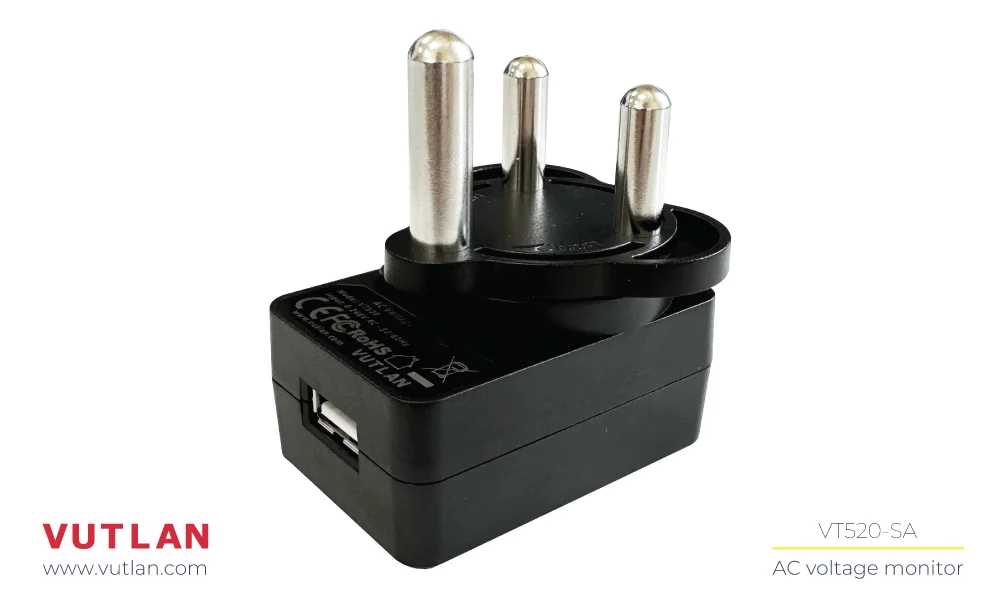

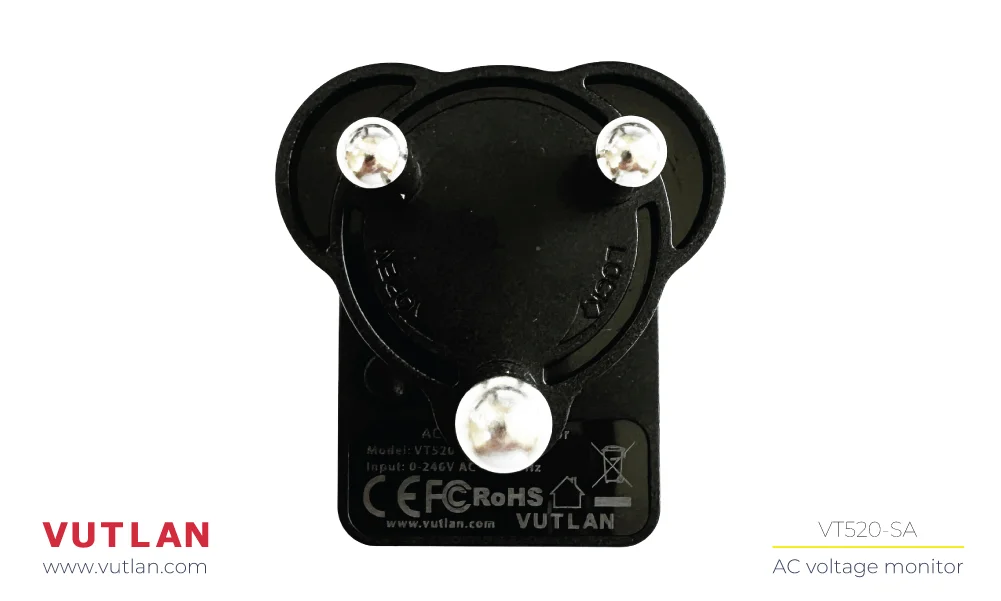

VT520-SA:
For South Africa
European plug type M (15 A BS 546)

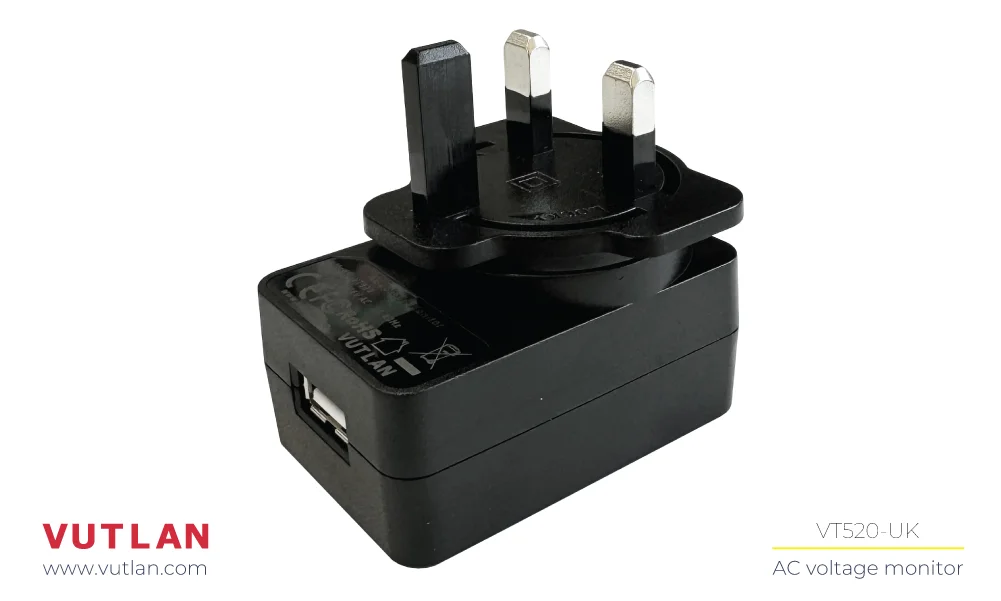

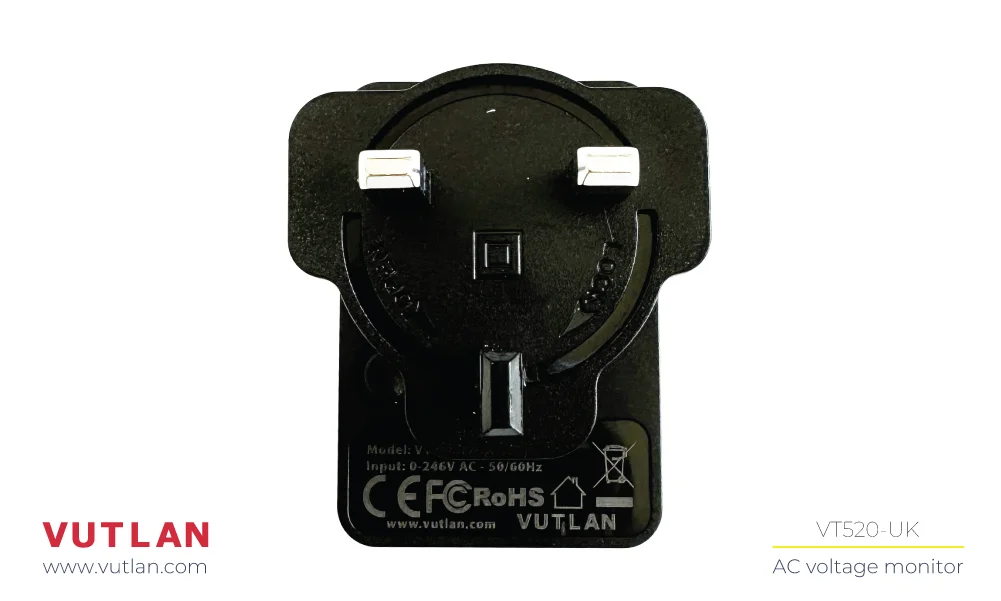

VT520-UK:
For United Kingdom, Ireland, Malta, Malaysia, Singapore & the Arabian Peninsula
European plug type G (BS 1363 UK)
Specifications
Type of sensor:
Analog sensor
Measured voltage:
0 .. 246 V AC
Accuracy:
1 %
Measures:
AC voltage
Daisy chain:
No
Cable length:
RJ11/RJ12 6P4С to USB cable included, 1.8 meters.
Power consumption:
60 mW
Operating temperature:
Optimal temperature range: -10° C to +80° C
Operating humidity:
0 to 95 %
Mounting possibilities:
Insert in the socket. See order options for socket types.
Max. distance from the unit:
100 m
Outputs terminals:
RJ-11 / 6P4C
Manufactured in:
Slovak Republic, E.U.
HS Code:
9030 33 300
EAN:
8588009886143
Use cases
These use cases show how the VT520 helps monitor AC voltage to ensure the stability and safety of equipment in various sectors.
- Data Center Power Monitoring: Measure and monitor the AC voltage supplied to server racks and other critical equipment in data centers, ensuring reliable power delivery and preventing equipment damage due to power fluctuations.
- Telecom Stations: Use the sensor to monitor AC power supply in telecom base stations, ensuring consistent power and preventing network disruptions caused by power issues.
- Industrial Power Systems: Monitor the voltage in industrial automation systems, where a stable AC power supply is essential for the correct operation of machinery and control systems.
- Uninterruptible Power Supply (UPS) Systems: Integrate the sensor with UPS systems to track and report on incoming voltage, helping prevent equipment failure due to under or over-voltage conditions.
- Electrical Panel Monitoring: Install electrical distribution panels to measure and monitor the voltage supply to critical systems, ensuring safety and compliance with regulatory standards.
- Building Management Systems (BMS): Incorporate the VT520 sensor into a BMS to monitor the AC voltage supplied to various systems across a facility, helping detect and address power issues before they escalate.
Previous
Next
Sensor features
Logic schemes
Logic schemes are used to specify automatic actions to events that occur in the system.
Dashboard view
The system allows to customize the dashboard individually for each user and displays the most important information on it in a visual form.
Add widgets with multi graphs, gauge meters or knobs.
Thresholds
Each sensor has Low Alarm, Low Warning, Normal, High Warning, and High alarm threshold states for logic control & sending of notification.
Graphs and Logging
Vutlan supports SD card logging up to 500 Gb. You can log a whole systems loaded with sensors for 3 years.
Previous
Next
Add more analog sensors using VT408 or VT408DIN
'VT408 Sensor extension unit' and 'VT408DIN Sensor extension unit" increase the number of analog sensors connected to any Vutlan monitoring unit. Each VT408 unit adds 8 analog sensors. Multiple VT408 units can be connected using a daisy CAN chain. Sensors connected to the extension unit appear in the system automatically.
Systems with analog ports:
To read data from the analog sensors, you need Vutlan monitoring and control system. All the following monitoring & control systems have a different amount of analog ports.
