VT501 Outdoor temperature sensor
Previous
Next
Description

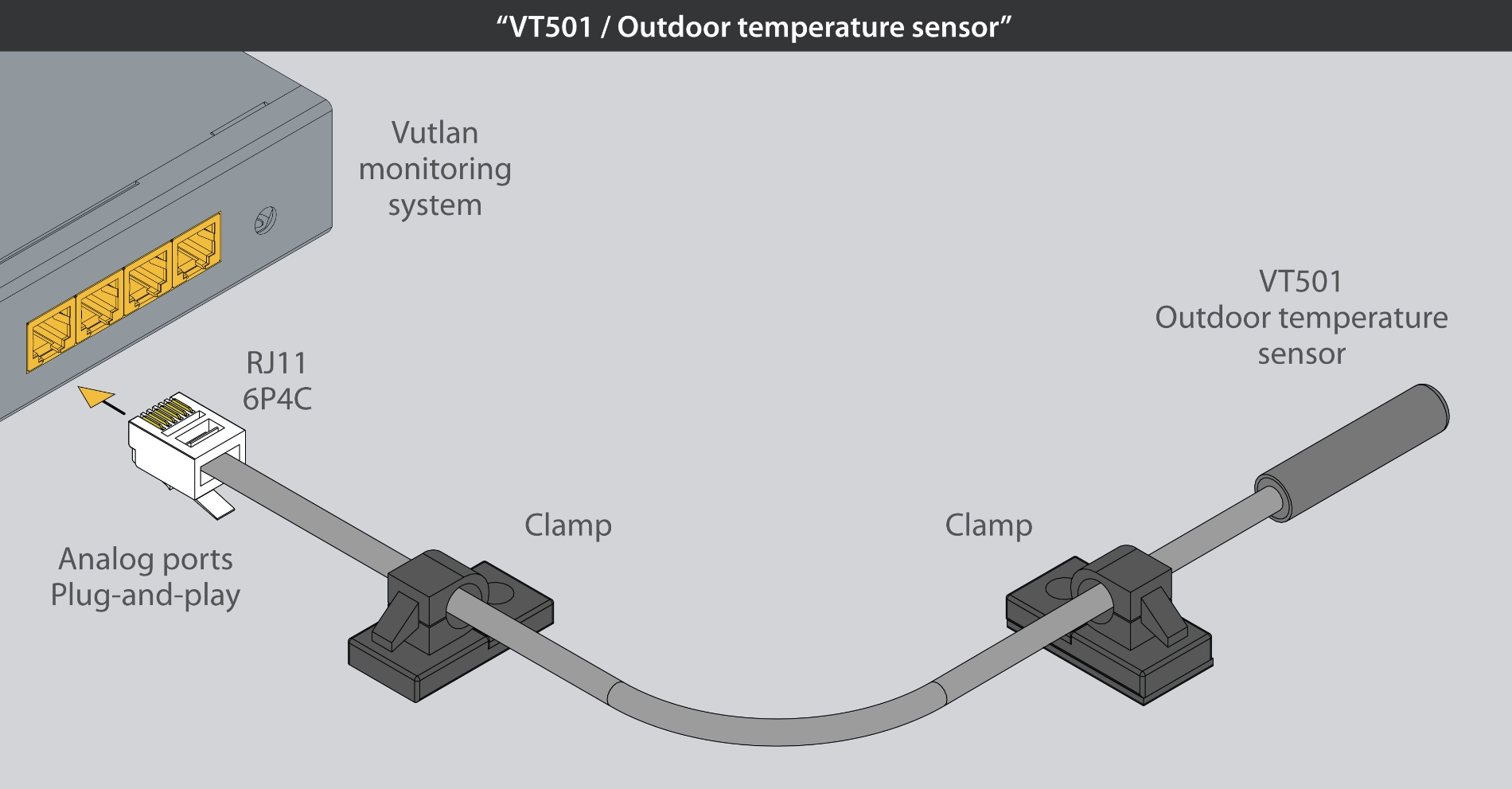

This analog plug-and-play temperature sensor is designed for measuring temperatures in outdoor or cold environments. It can be connected to any analog port (A1...A8) of a Vutlan monitoring unit for seamless integration. Its reliable performance makes it ideal for monitoring outdoor conditions or maintaining temperature-sensitive areas such as cold storage rooms. With automatic detection and simple installation, the sensor provides accurate temperature readings and immediate alerts for better environmental control.
The maximum amount of sensors and maximum length can be extended using the "VT408 / Sensor extension unit".
Use cases
These use cases demonstrate the VT501 sensor's flexibility in applications that require accurate and consistent temperature monitoring.
- Server Rooms and Data Centers: Essential for monitoring and maintaining optimal temperature conditions to prevent overheating of critical IT equipment.
- Industrial Equipment Monitoring: Used to track the temperature of machines and processes in manufacturing environments, ensuring operational efficiency and safety.
- HVAC Systems: Helps regulate the temperature in climate control systems for buildings, ensuring efficient cooling and heating.
- Cold Storage and Warehouses: Vital for monitoring temperature levels in storage areas for sensitive goods like food, pharmaceuticals, or other temperature-sensitive products.
- Laboratories: Useful for monitoring environmental conditions to ensure that experiments, materials, and sensitive equipment are stored and operated at appropriate temperatures.
- Indoor Environmental Monitoring: Can be used in offices or homes to track and maintain comfortable temperature levels and ensure energy efficiency.
Specifications
Type of sensor:
Analog sensor
Measures:
Temperature
Accuracy:
± 1.5 °C
Daisy chain:
No
Cable length:
15 m
Power consumption:
60 mW
Operating temperature:
Min. -40° C - Max.+105° C

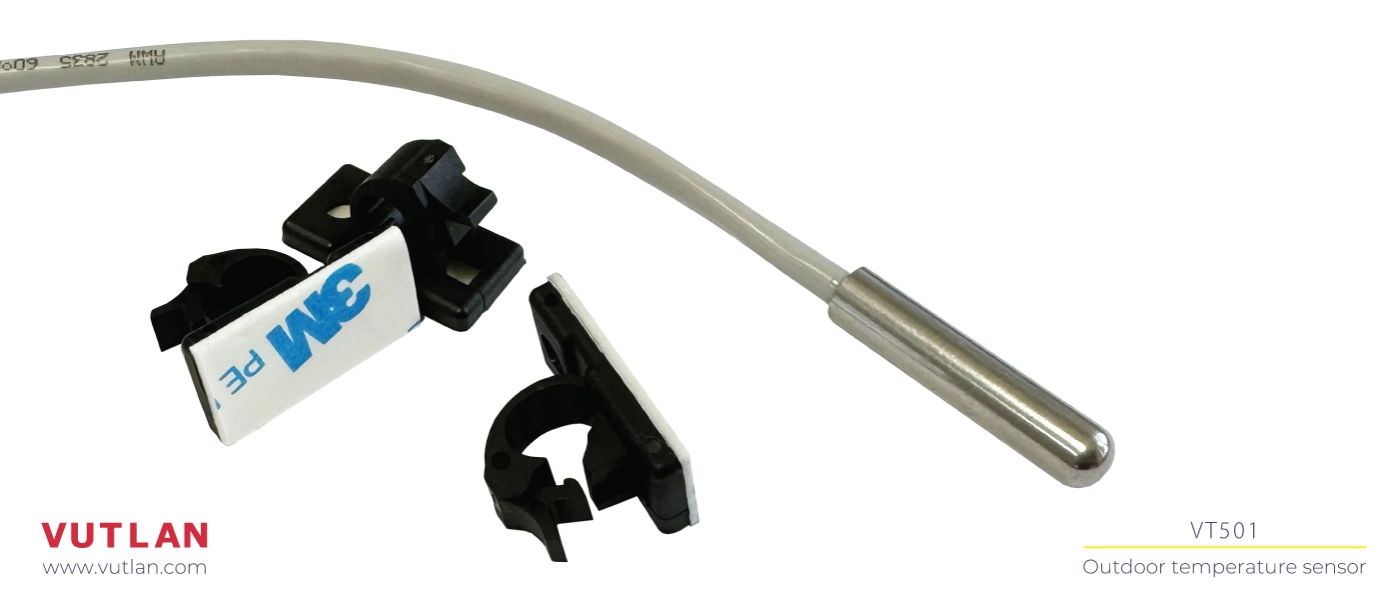

Mounting possibilities:
Sticky 4J-S clamps included, see package content.
Max. distance from the unit:
100 m
Cable jack:
RJ-11 / 6P4C

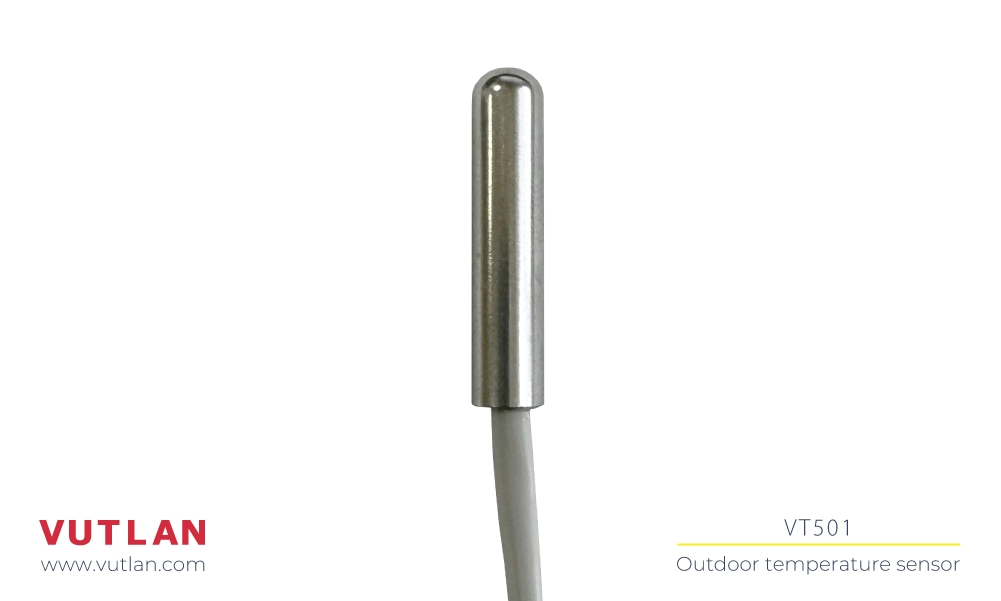

Dimensions:
∅7×30 mm
Manufactured in:
Slovak Republic, E.U.
HS Code:
9025 11 800
EAN:
8588009886129
Previous
Next
Sensor features
Logic schemes
Logic schemes are used to specify automatic actions to events that occur in the system.
Dashboard view
The system allows to customize the dashboard individually for each user and displays the most important information on it in a visual form.
Add widgets with multi graphs, gauge meters or knobs.
Thresholds
Each sensor has Low Alarm, Low Warning, Normal, High Warning, and High alarm threshold states for logic control & sending of notification.
Graphs and Logging
Vutlan supports SD card logging up to 500 Gb. You can log a whole systems loaded with sensors for 3 years.
Previous
Next
Add more analog sensors using VT408 or VT408DIN
'VT408 Sensor extension unit' and 'VT408DIN Sensor extension unit" increase the number of analog sensors connected to any Vutlan monitoring unit. Each VT408 unit adds 8 analog sensors. Multiple VT408 units can be connected using a daisy CAN chain. Sensors connected to the extension unit appear in the system automatically.
Systems with analog ports:
To read data from the analog sensors, you need Vutlan monitoring and control system. All the following monitoring & control systems have a different amount of analog ports.
