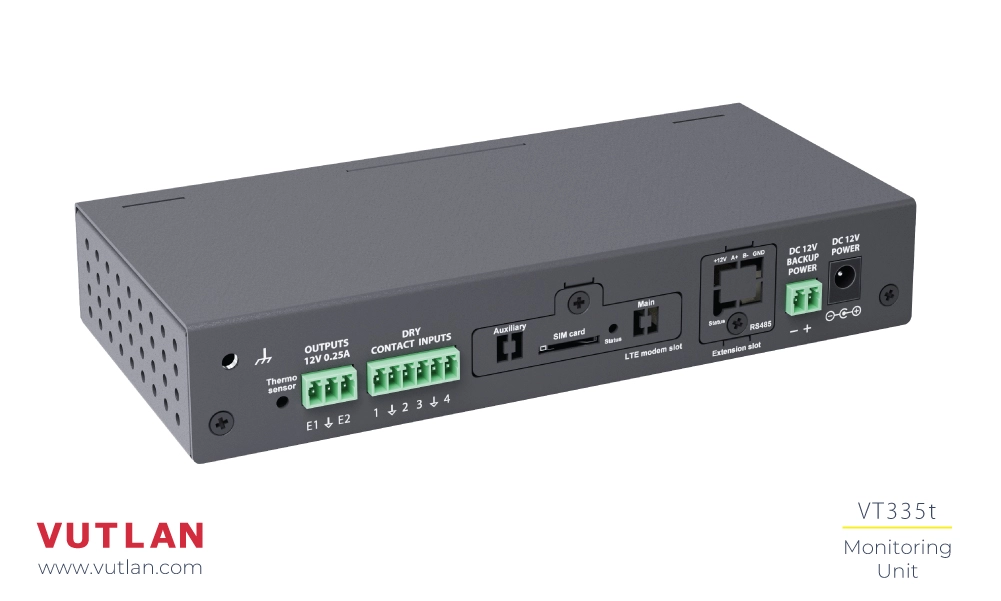

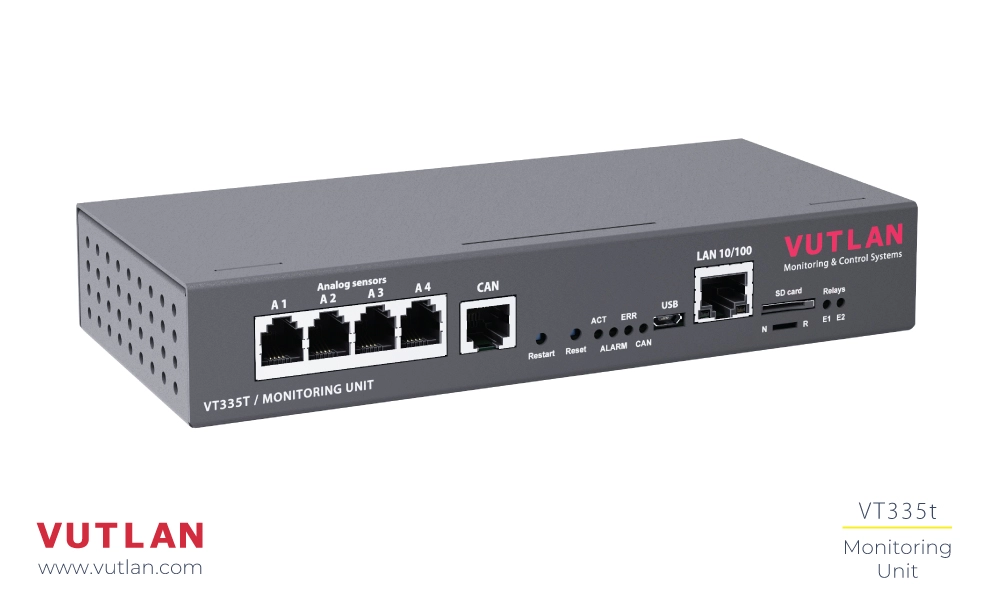

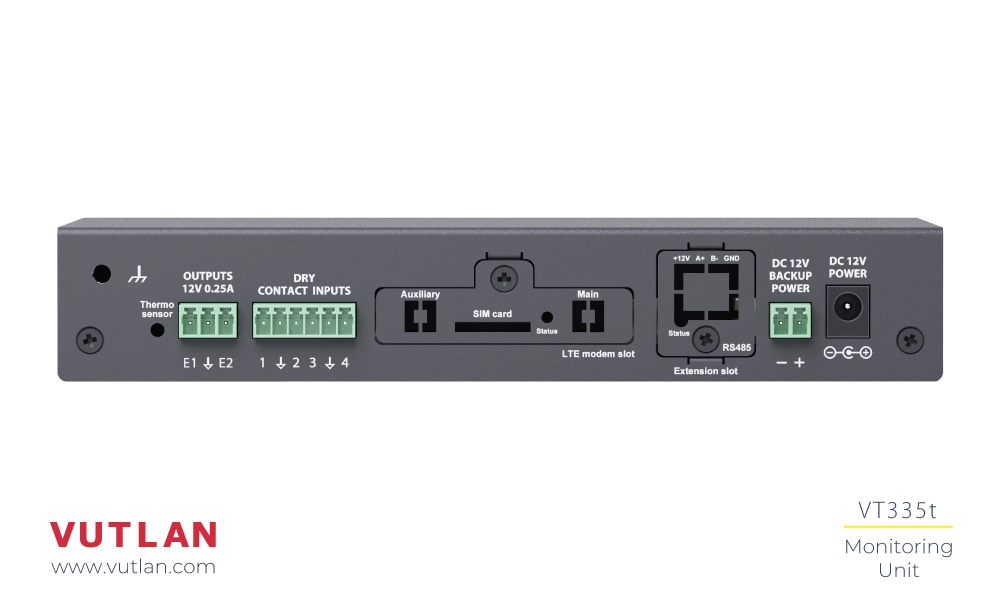

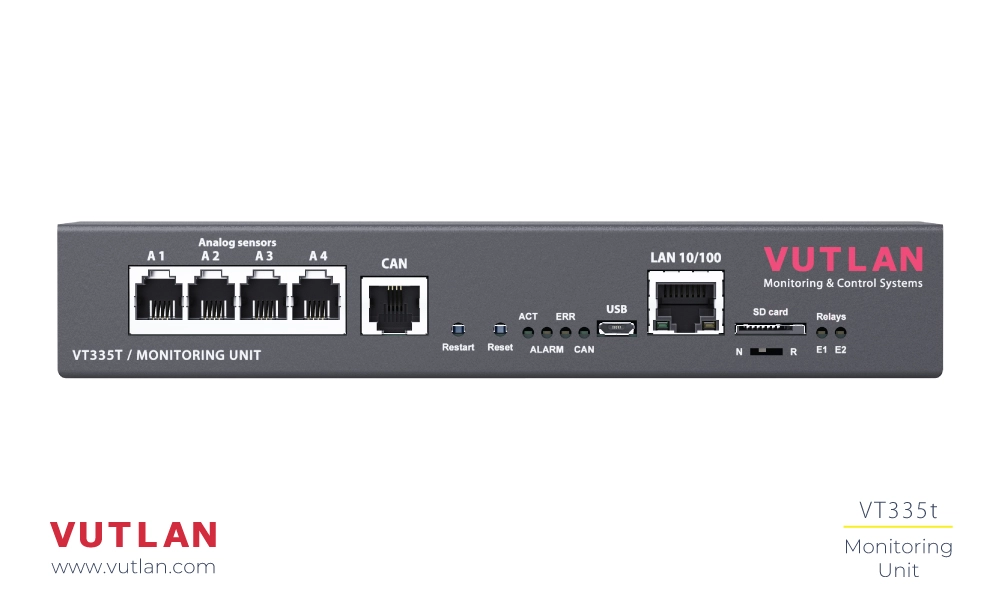

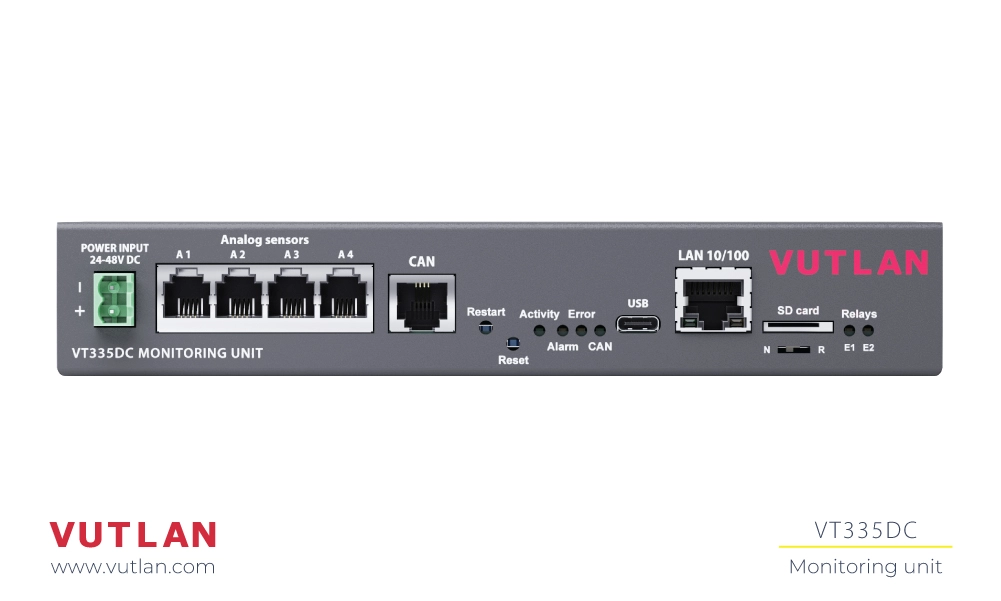

VT335t IT Monitoring unit
Previous
Next
Description

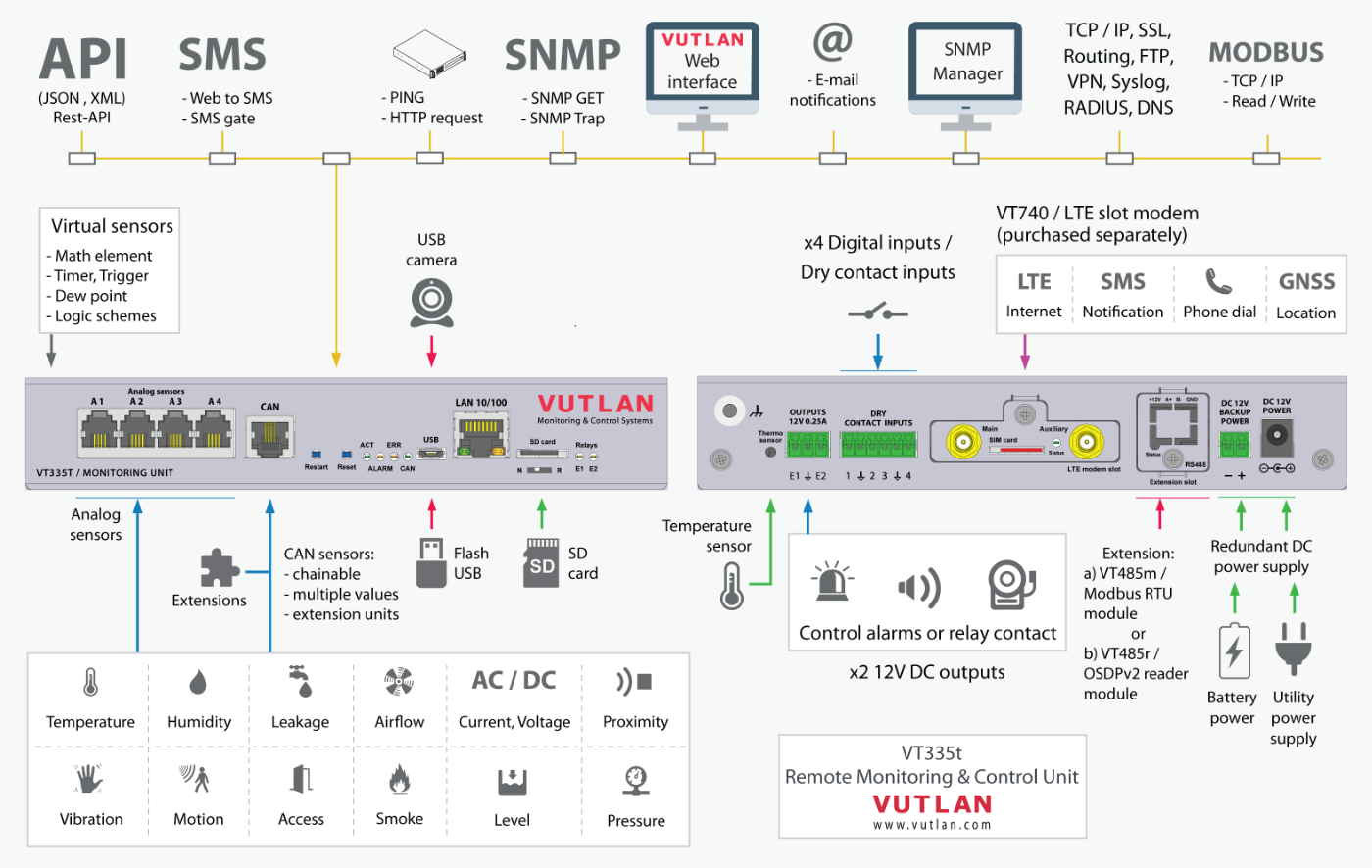

The VT335 / IT Room Monitoring Unit can be used for remote environmental monitoring in small IT rooms. Its primary features include:
Environmental Monitoring: Measures temperature, humidity, voltage, access, smoke, dust, vibration, access, leakage, movement, airflow.
I/O Controller: 4 analog inputs, CAN input, 4 dry contacts IN, 2 relays 12V, SD, USB, extensions.
Scalability: Supports up to 800 elements, including sensors, virtual sensors, logic, notifications.
Built-in Web Interface: Provides a user-friendly interface, 100Mbit/s.
Extensions: LTE modem, Modbus, Reader.
- Notifications: Telegram, push, mail; VPN, SMS and voice call in case of LTE modem built-IN.
- Processor: 720Mhz dual-core Cortex-A7, 128Mbit RAM.
Use cases
- Rack/cabinet manufacturers: Low-cost OEM module under your brand increases rack sales value, brings technological innovation and increases company value.
- Data centers: Built-in interface in 40 languages allows local staff to work without knowledge of other languages.
Hardware specifications
- Grad A
- Plug & Play
- 5 level thresholds
- Hysteresis for alert delay if the sensor value jumps to fast
- Linear formula for sensor value adjustments
- Math element for calculating your own formulas
- Graphs, multi-graphs
- Ethernet 10/100 Base-T
- VT7670 LTE modem ordered separately
- SMS notifications
- Ethernet, VPN network reservation
- Connect in a daisy chain
- Restart button
- Factory reset
- N-R switch
- Activity, Error, Alarm, CAN
- 12V relays
- Receive voltage free signals from devices and sensors
- Connect KMS-30 access sensor
- 12V DC 5.5*2.1
- 12V 2P, pitch 3.81mm
- Control VT103 alarm beacon
- Control VT105 strobe light
- Control VT11 relay contact switch
- Control other 12V DC devices
- Temperature
- Voltage sensor
- Chassis grounding
Extensions

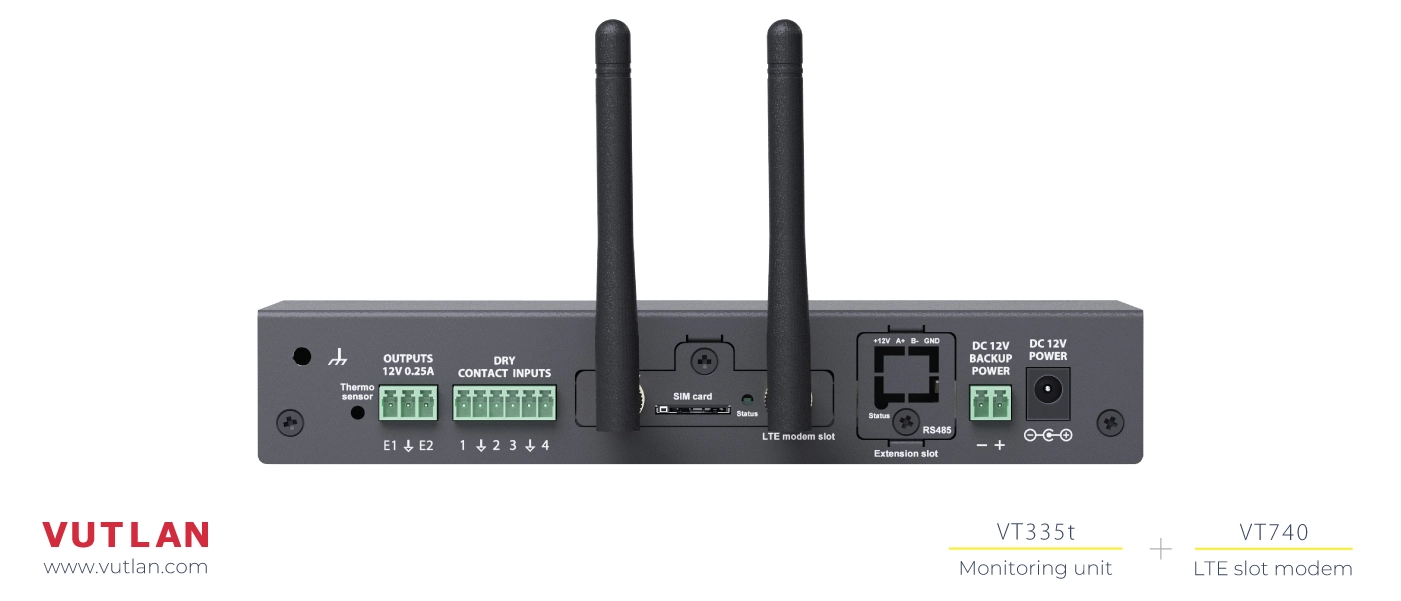

VT7670 LTE slot modem
Allows to receive and send SMS notifications (2G, 3G). Provides Ethernet reservation over LTE (4G).
RS485 slot

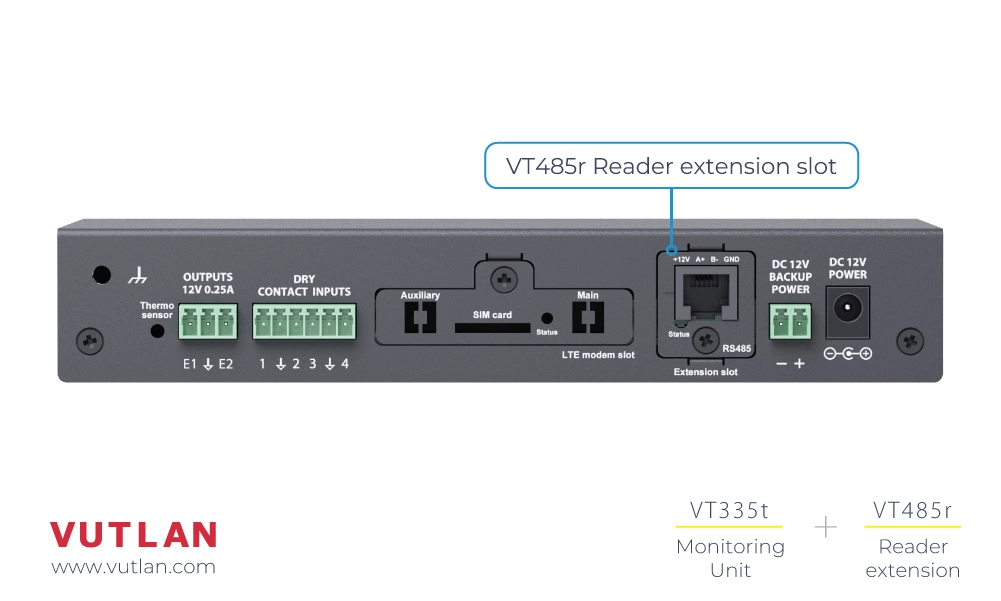

VT485r Reader extension
Allows to connect readers, and keypads with OSDP protocol support.
or

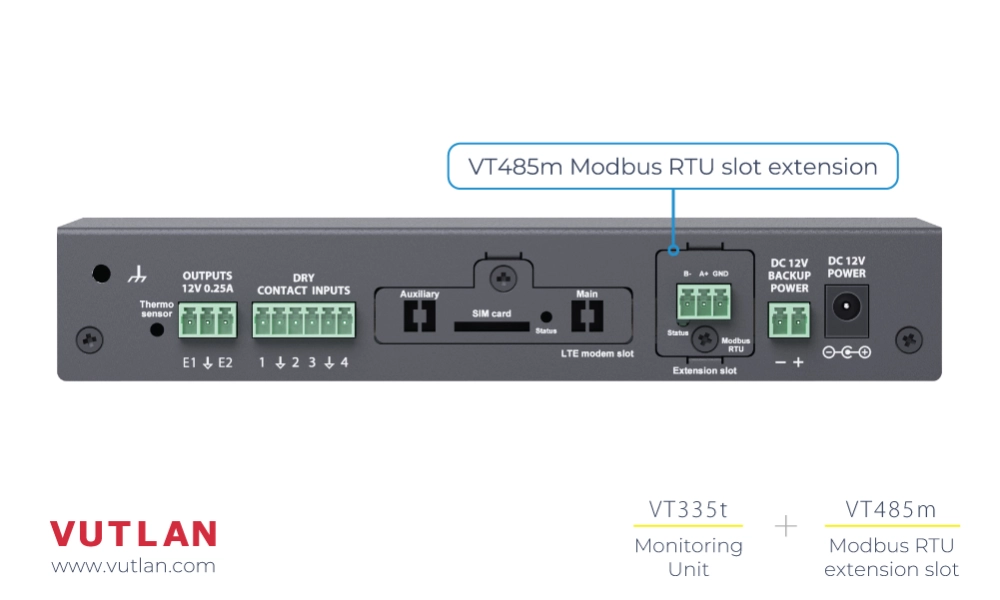

VT485m Modbus extension
Allows to monitor up to 32 Modbus RTU devices/meters/sensors.
Advanced technology
From sensing to connecting, from data to the power that transforms the world, what we do matters.
Advanced protocols
Vutlan supports most popular communication protocols & adding more...
SNMP v1, v2c, v3
Simple Network Protocol for connecting multiple Vutlan units to a single DCIM, NMS, and Infrastructure monitoring software.
+
Modbus RTU,
Modbus TCP
Modbus serial communication protocol designed for industrial automation systems, and industrial meters.
+
OSDPv2 RS485
Open Supervised Device Protocol is an access control communications standard for readers, & keypads.
+
and other...
DHCP, HTTP, HTTPS, SMTP, FTP, Syslog, TLS, DynDNS, RADIUS, SSL, NTP, OpenVPN
Pushing limits
The most powerful monitoring and control systems in the world!
OS Linux
v.6.2
Processors
720 MHz, 2 Cores
Maximum sensors
100 physical sensors
Maximum elements
700 virtual elements
Built-in web interface
All Vutlan monitoring devices have a built-in multilingual web interface for monitoring and managing the device.
Here you can configure notifications and alerts, logic schemes, user access rights, sensors and elements.
You can also view sensor graphs, logs and camera images.
Previous
Next

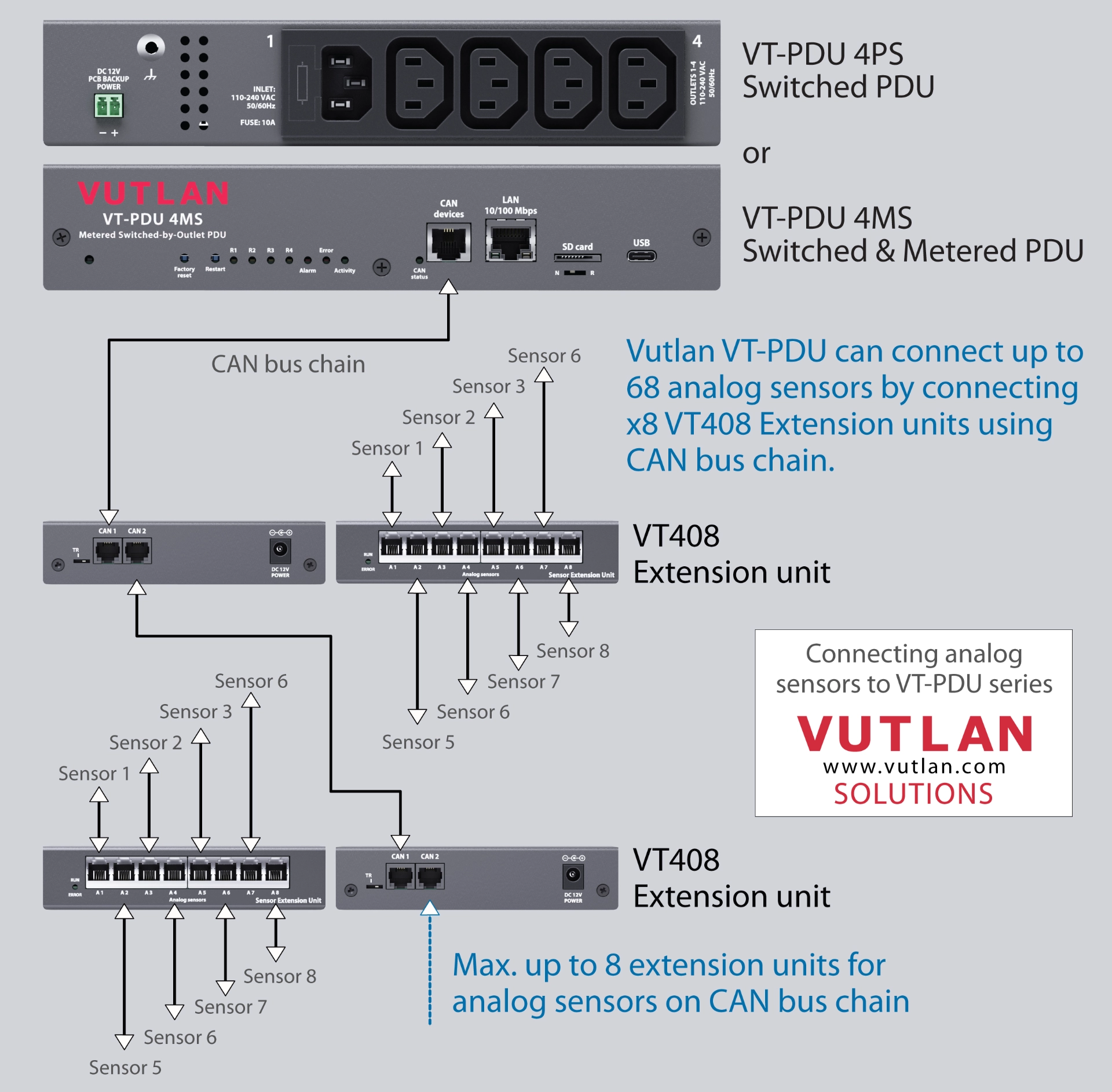

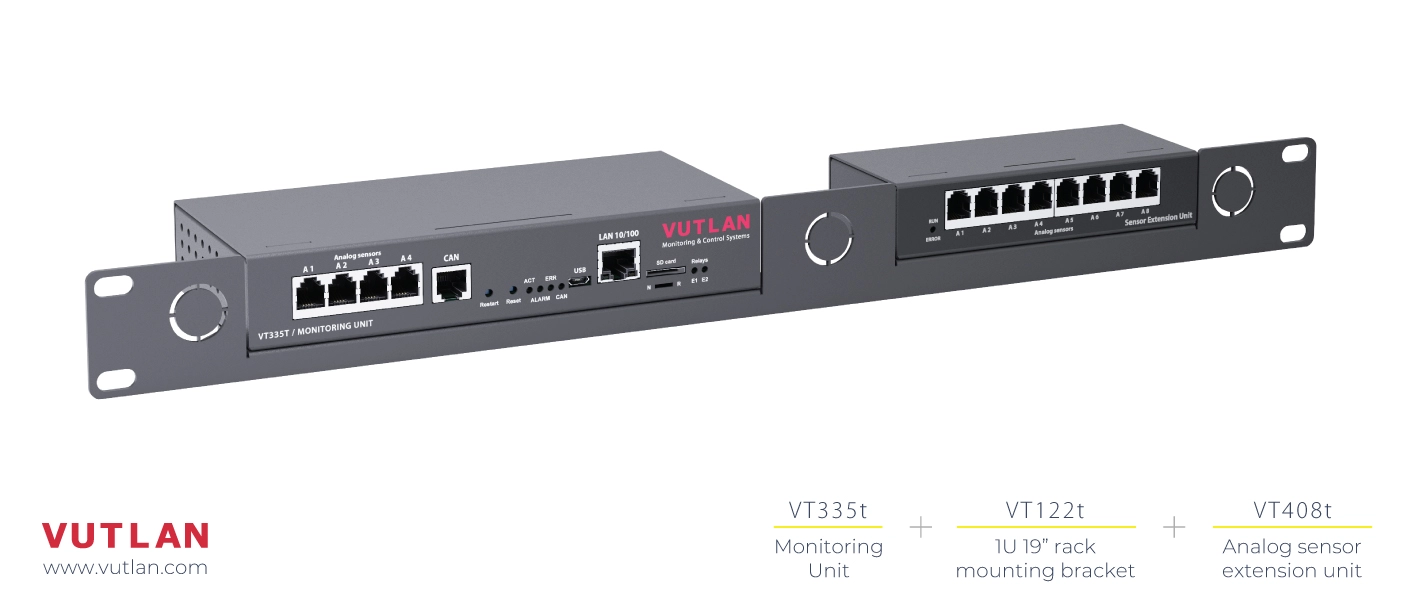

Add more analog sensors using VT408 extension unit.
Each VT408 extension unit connected to the Vutlan monitoring device via the CAN bus adds the ability to connect 8 analog sensors to the system.
Sensors connected to the unit are automatically displayed in the system.
-01.webp)
Previous
Next
Add more Dry contacts using VT440
The VT440 / Dry Contacts extension unit increases the number of Dry contacts that can be connected to any Vutlan monitoring device.
Each VT440 device adds 32 dry contacts. Each VT440 + VT32 expansion module adds 64 dry contacts.
A tab for monitoring and configuring dry contacts is available in the Vutlan device interface.
Previous
Next
Connecting CAN sensors
You can connect multiple CAN devices to a CAN bus chain.
Each VT408 unit in the CAN bus chain adds 8 analog sensors. Each VT440 unit adds 32 or 64 dry contact inputs to the system.
An additional CAN12V-1A power supply is only required if the number of CAN devices in the CAN bus chain exceeds 12 pieces.
Centralized Infrastructure Management Software using SNMP protocol
No matter how complex your IT infrastructure is, you can manage all assets using DCIM SNMP software, infrastructure management software.
Vutlan supports SNMP v1, SNMP v2c, SNMP v3. Hence the data from Vutlan monitoring units can be monitored from any SNMP managemnt software package.
Software
Multilingual Web Interface with setup wizard, with time setup, built-In vector map with floors, with Logic, Graph, Logs, Outlets and Dry contact tabs.
- Duplicator license is purchased separately
- Multiple devices settings over a large area
- Upload configuration and firmware
- USB camera (MJpeg stream)
- IP cameras (MGpeg, only view)
