VT105 / Strobe light
Previous
Next
Description

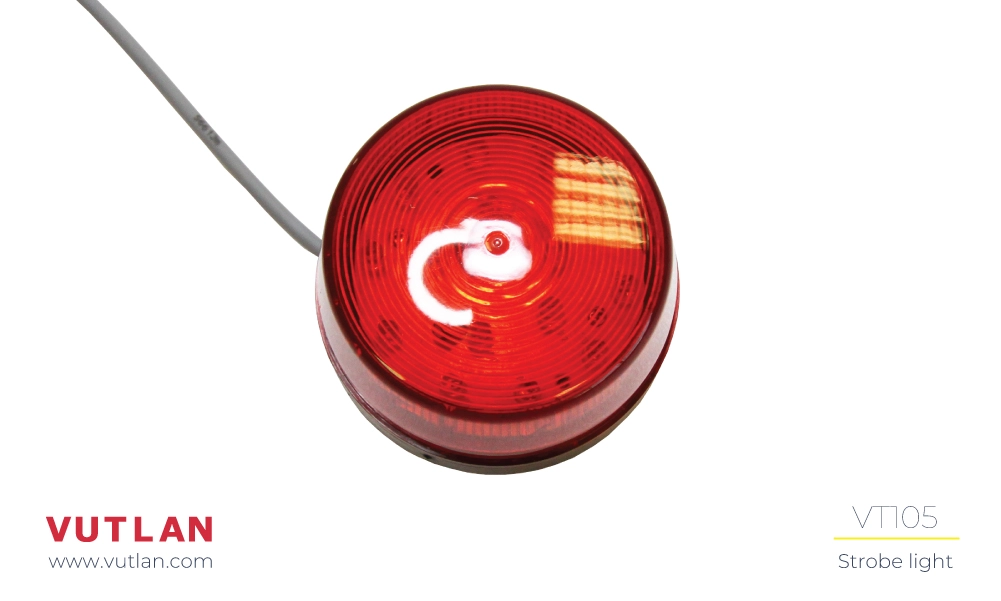

VT105 LED strobe light is a 12V DC device for light flashing in case of warnings and alarms.

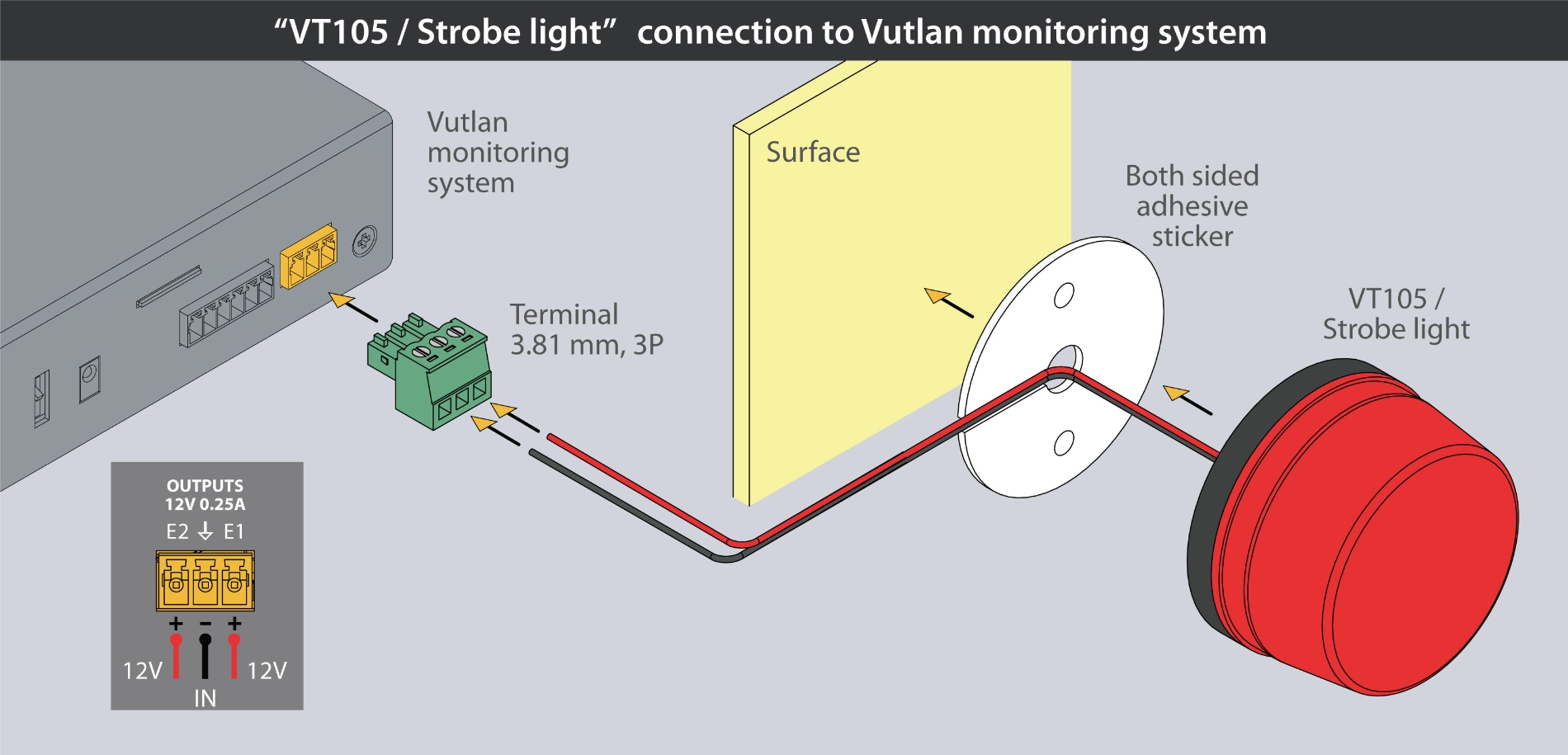

Connects to 12V DC, 0.25A electronic relay output of Vutlan monitoring systems. Can be configured to sound/light an alarm if an alarm event has been triggered.
Can be used with 3rd party controllers.
Downloads
Specifications
Used for:
VT105 is a LED Security Alarm powered by 12V relay outputs.
Flashing frequency:
90/Min
Input:
2-wire cable (red/black)
Output:
LED source
Operating temperature:
Min. -50 °C - Max.105 °C
Operating humidity:
Min. 5% - Max. 95% (Non-Condensing)
IP rating standard:
IP54
Voltage:
12V DC
Rated current:
120mA
Power consumption:
1 Watt
Dimensions:
⌀73.5mm, Height 45.5mm, cable length 3m
Mounting:
Wall or ceiling mounting, cabinet top or side
Casing:
Color: red and white; Material: plastic
Components:
Manufactured in E.U.
HS Code:
8531 10 300
GTIN:
8588009886600
Warranty:
Previous
Next
12V relay devices features
Logic schemes
Logic schemes are used to specify automatic actions to events that occur in the system. Automatically activate strobe lights or other 12V devices.

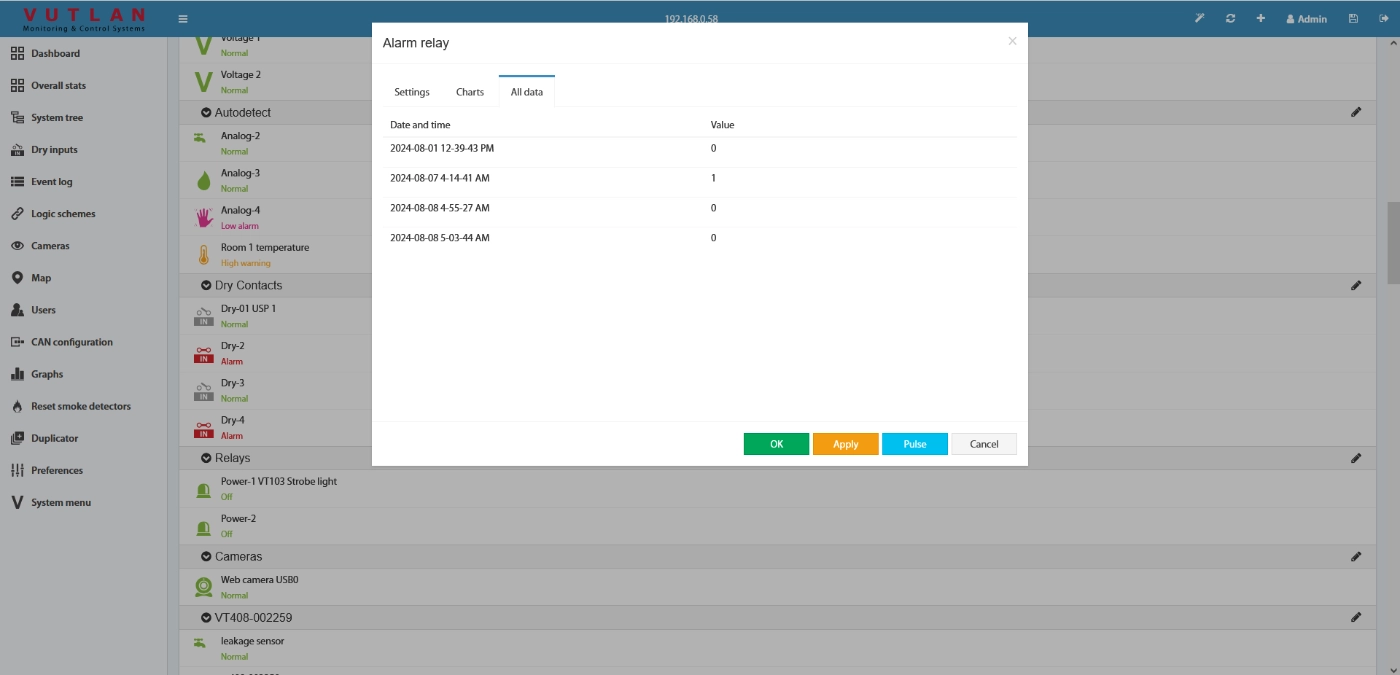

Dashboard view
The system allows to customize the dashboard individually for each user and displays the most important information on it in a visual form.
You can add your 12V relay device on a Dashboard for monitoring.
Accessories
Use VT103 Alarm beacon, VT105 Strobe light or VT11 switchable relay contact or other 12V DC devices. Max amperage 0.25A.
Graphs and Logging
Vutlan supports SD cards, USB flash, and FTP. For example, a 500Gb SD card can log sensors, and device logs for 3-5 years.
Controllers with 12V DC outputs:
The following systems have 12V DC outputs that can connect 12V DC devices, and VT11 switchable relay contact.
