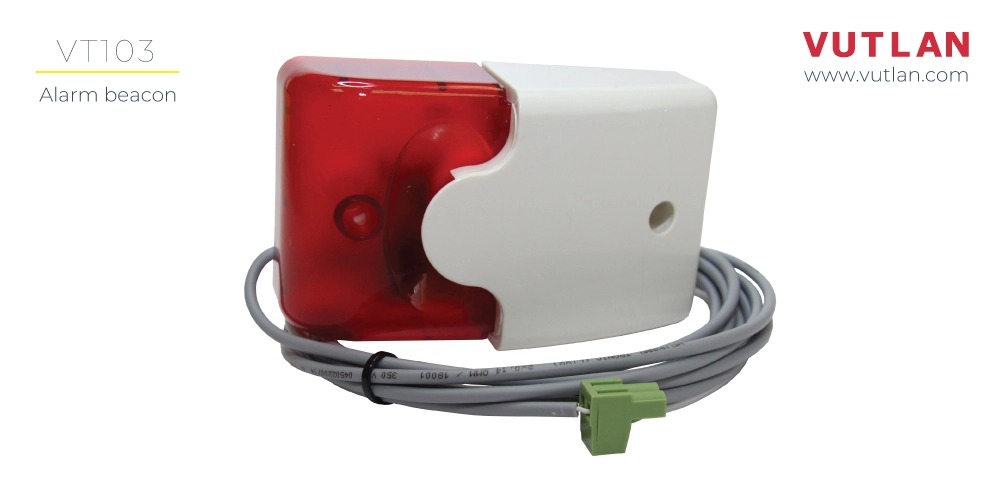

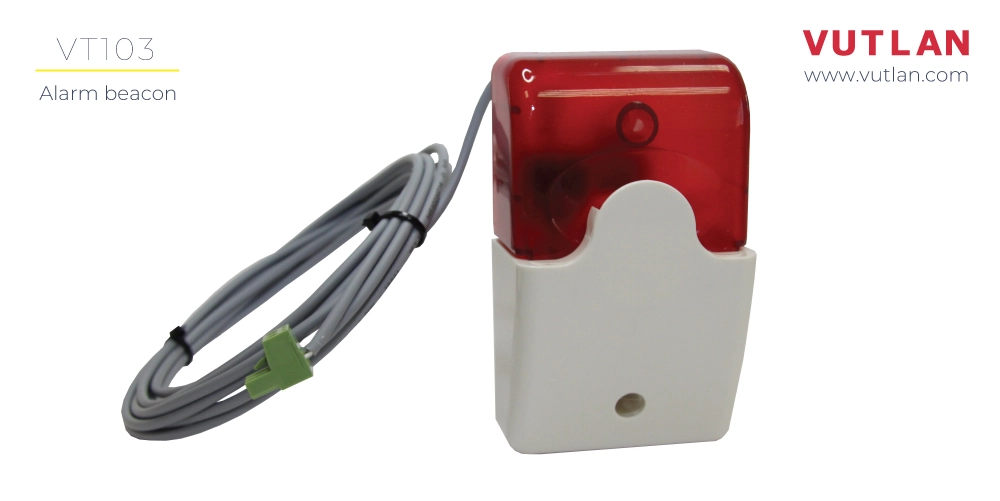

VT103 Alarm beacon
Previous
Next
Description
The VT103 is designed for light and sound alarms in monitoring systems. It can be connected to a 12V DC, 0.25A electronic relay output of Vutlan monitoring systems to provide a visual or audible alert when an alarm event is triggered. This makes it ideal for scenarios where immediate local alerts are needed to inform users of system issues.
Can be used with 3rd party controllers.
Specifications
Device type:
12V DC sound and light alarm
Rated voltage:
12V DC, 1A
Sound pressure:
108 dB
Tone frequency:
3.8 kHz
Flash frequency:
2.5Hz red 150/min
Output:
Light and sound
Operating temperature:
Min. -50 °C - Max.105 °C
Operating humidity:
Min. 5% - Max. 95% (Non-Condensing)
IP rating standard:
IP54
Power consumption:
250mA
Power consumption:
Dimensions:
Mounting:
Wall mount
Cable length:
3 meters
Case color:
ABS plastic, red, white
Manufactrued in:
Manufactured in E.U.
HS code:
8531 10 300
GTIN:
8588009886594
Warranty:
Previous
Next
12V relay devices features
Logic schemes
Logic schemes are used to specify automatic actions to events that occur in the system. Automatically activate strobe lights or other 12V devices.
Dashboard view
The system allows to customize the dashboard individually for each user and displays the most important information on it in a visual form.
You can add your 12V relay device on a Dashboard for monitoring.
Accessories

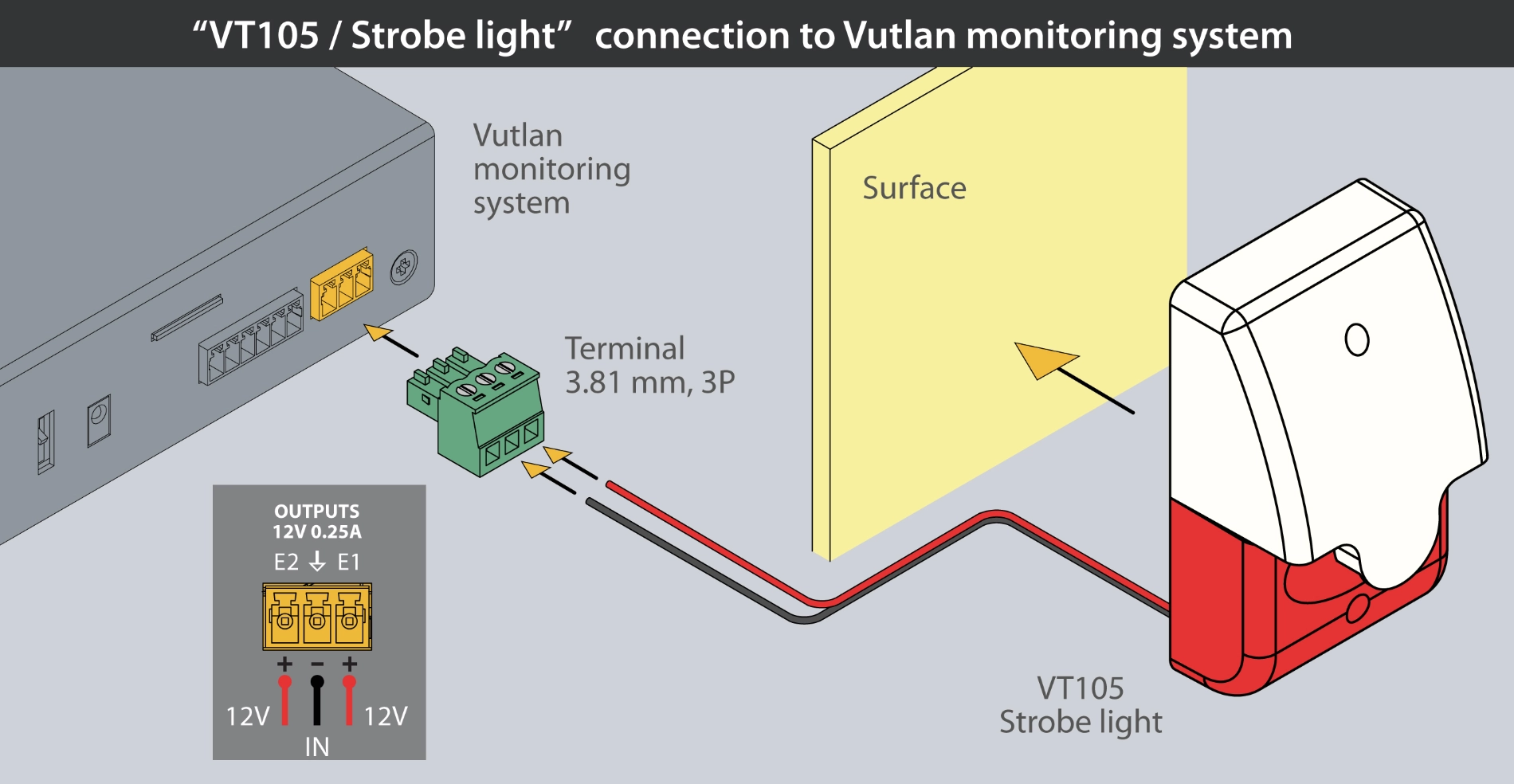

Use VT103 Alarm beacon, VT105 Strobe light or VT11 switchable relay contact or other 12V DC devices. Max amperage 0.25A.
Graphs and Logging
Vutlan supports SD cards, USB flash, and FTP. For example, a 500Gb SD card can log sensors, and device logs for 3-5 years.
Controllers with 12V DC outputs:
The following systems have 12V DC outputs that can connect 12V DC devices, and VT11 switchable relay contact.
