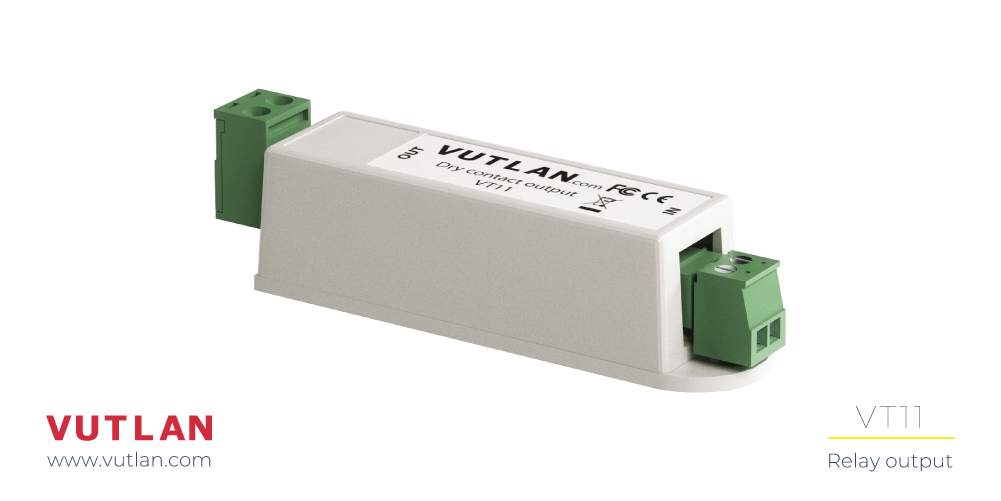

VT11 Relay output
Previous
Next
Description

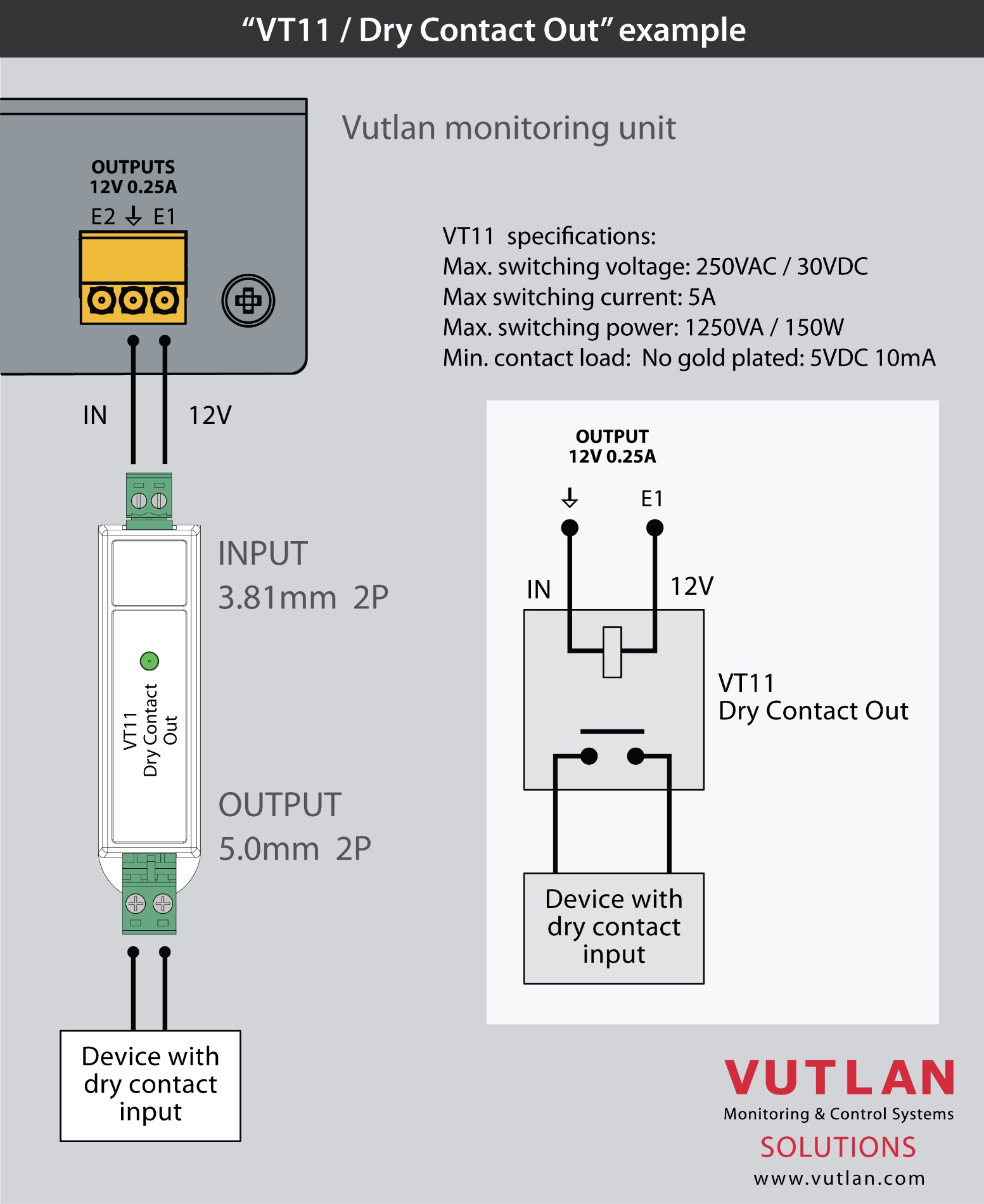

Relay switchable contact. Can be used together with equipment, for example for switching it ON/OFF. For controlling devices that have dry contact input or controlling their power source.

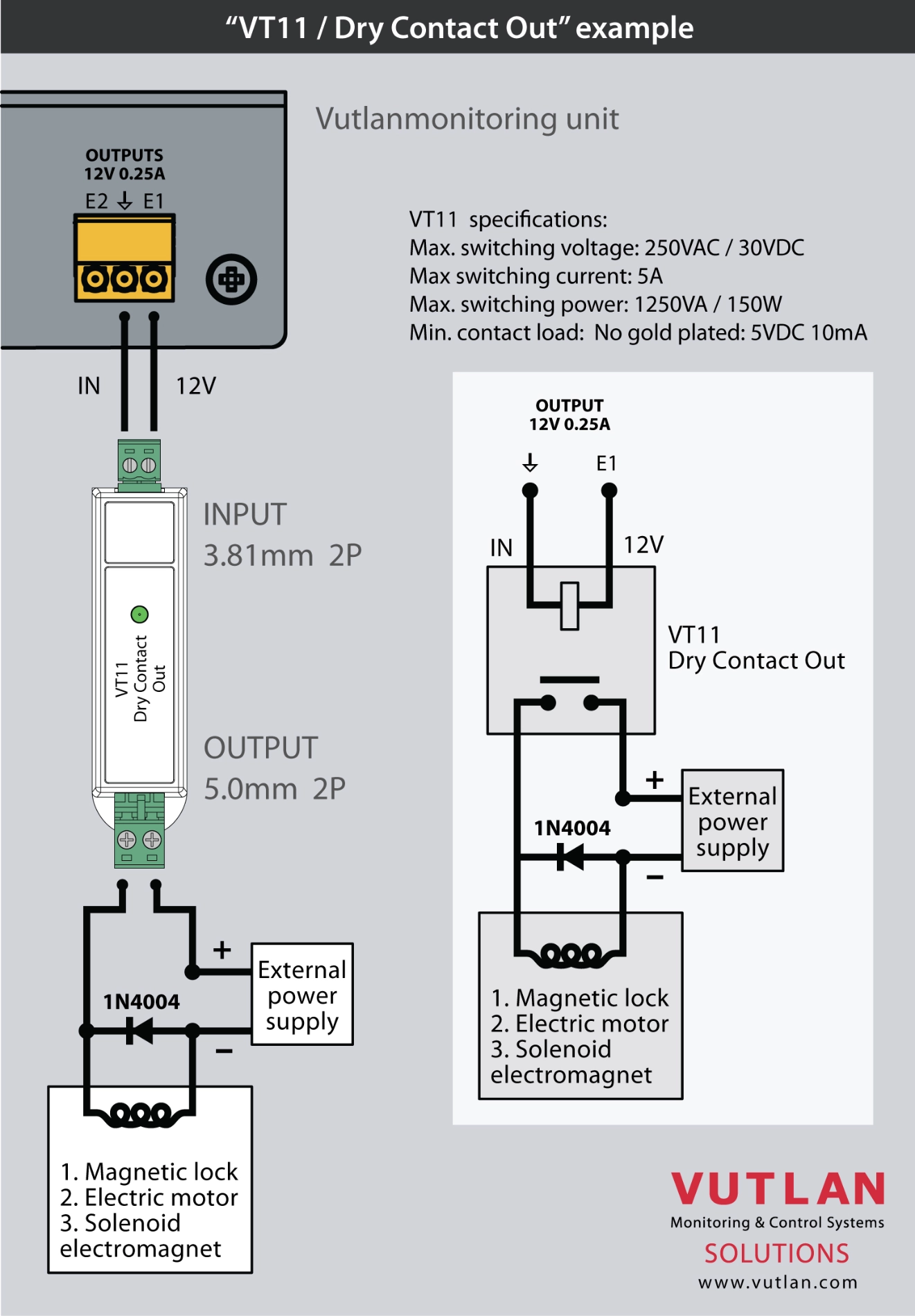

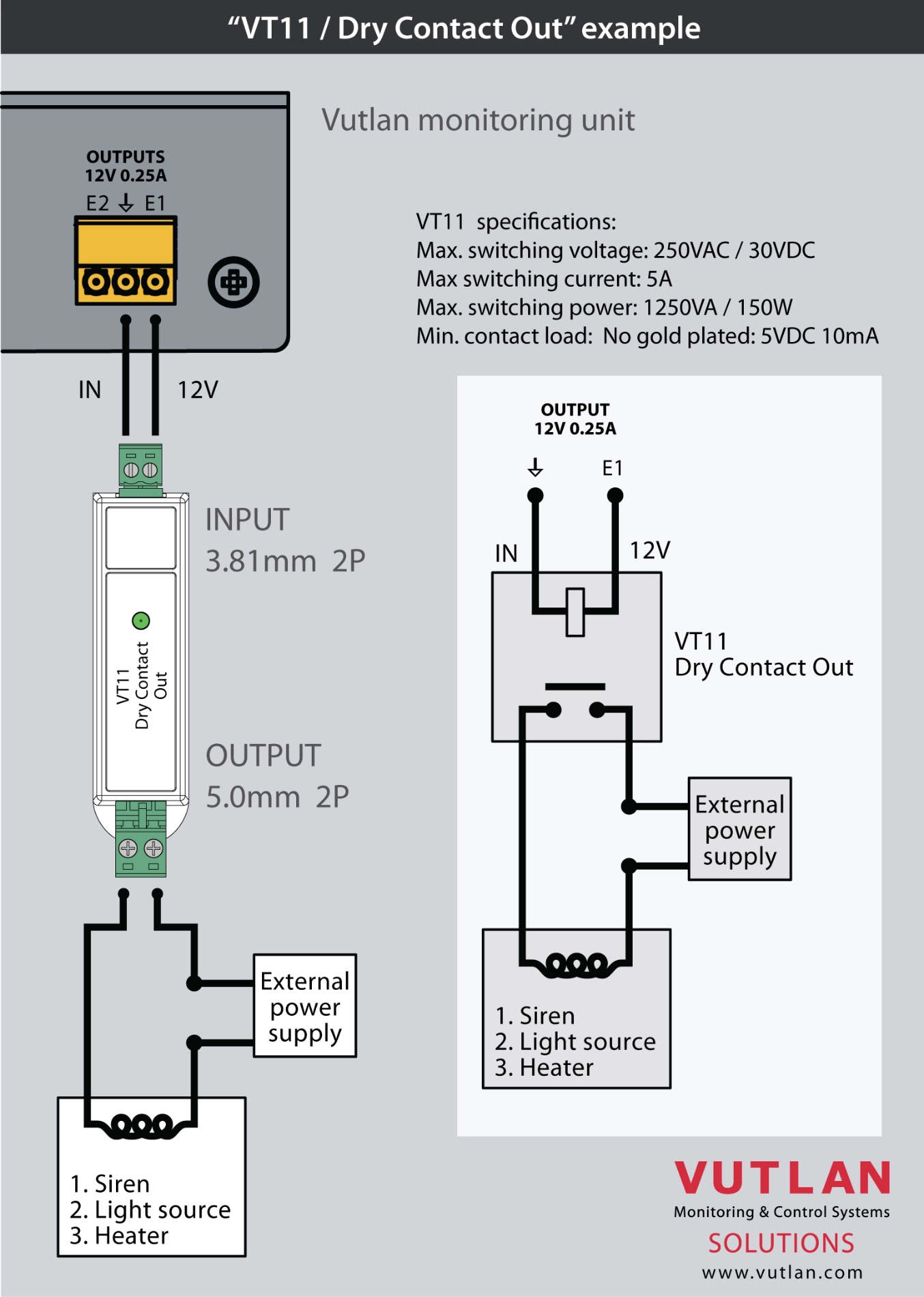

Can manage 5A power for magnetic locks, bolt locks, solenoid electromagnets, sirens, light sources, heaters, air conditioners, etc.
Can manage 5A power for magnetic locks, bolt locks, solenoid electromagnets, sirens, light sources, heaters, air conditioners, etc.

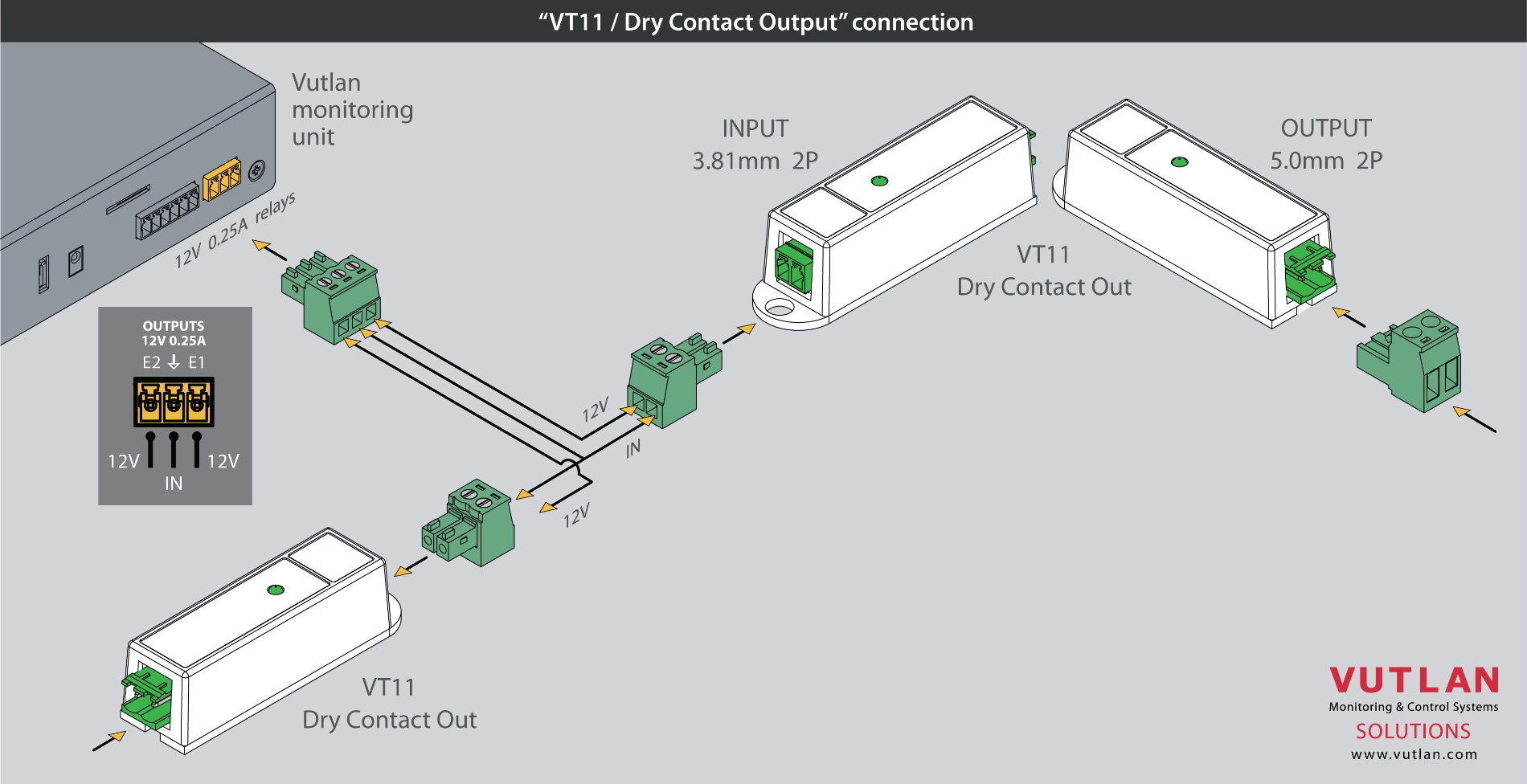

Can be connected to any Vutlan unit with 12V relay outputs.
Use cases
These applications demonstrate the versatility of the VT11 in various settings, from security and automation to HVAC and industrial uses.
- Access Control Systems: The VT11 can be used to control magnetic locks or electronic strikes, providing secure access to restricted areas. It can trigger the locking mechanism based on input from access control systems.
- Alarm Systems: In security applications, the VT11 can activate sirens or notification lights when an alarm is triggered, ensuring prompt alerts in case of unauthorized access or emergencies.
- HVAC Control: The VT11 can manage heating and cooling units by switching them ON or OFF based on predefined conditions, improving energy efficiency and maintaining desired indoor climate.
- Lighting Control: It can control lighting systems, allowing for automated ON/OFF functions based on occupancy sensors or timers, enhancing energy savings.
- Industrial Automation: The VT11 can be integrated into manufacturing processes to control machinery or equipment, allowing operators to manage power sources effectively and automate workflows.
- Remote Monitoring: When used with a monitoring system, the VT11 can provide remote control capabilities, enabling users to manage devices and receive status updates from anywhere.
Specifications
Used for:
Can be connected to Vutlan monitoring system with 12V DC outputs. Used as a relay switchable contact.
Input:
wire terminal, pitch 3.81mm, 2P
Outputs:
wire terminal, pitch 5.0mm, 2P
Operating temperature:
Min. -50 °C - Max.105 °C
Operating humidity:
Min. 5% - Max. 95% (Non-Condensing)
Max switching current:
5A
Max. switching voltage:
250VAC / 30VDC
Max. switching power:
1250VA / 150W
Min. contact load:
No gold plated: 5VDC 10mA
Power consumption:
12 mW
Max. distance:
200 meters
Dimensions:
60×18×18 mm
Mounting:
The mounting bracket, sticker, and screws are included.
Manufactured in:
Slovak Republic, E.U., Vutlan s.r.o.
HS Code:
9025 11 800
GTIN:
8588009886525
Warranty:
90 days
Controllers with 12V DC outputs:
The following systems have 12V DC outputs that can connect 12V DC devices, and VT11 switchable relay contact.
